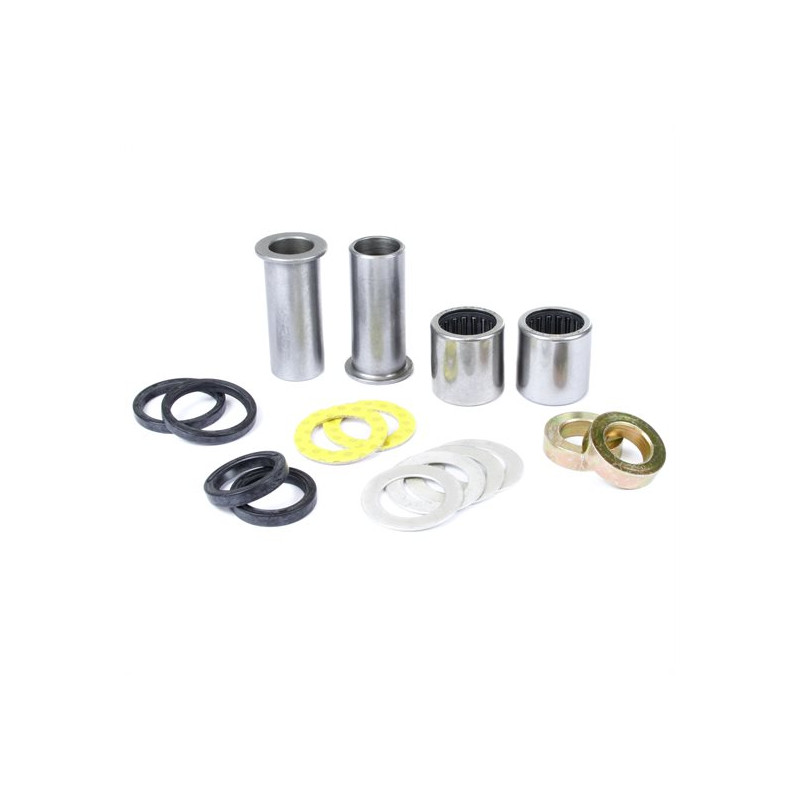

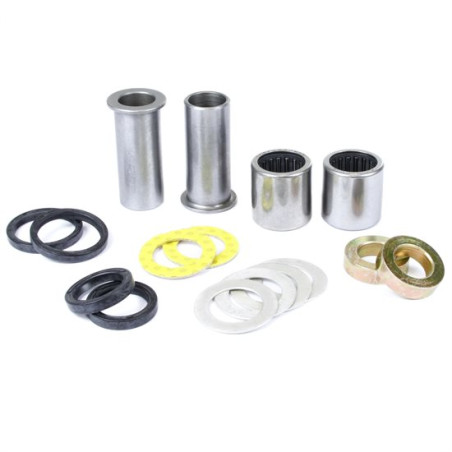

PROX Swingarm Bearing Kit for KAWASAKI KX 125, KX 250 1999-2008

The PROX 26.210044 swingarm bearing kit is designed for KAWASAKI KX 125, KX 250 from 1999 to 2008. The swingarm pivots on its shaft on every movement of the rear suspension. Its bearings, often needle bearings, wear from water and mud: a swingarm pivot that binds or has play makes the rear end vague and wears out the drivetrain.

Specifications

• Brand: PROX
• Manufacturer part number: 26.210044
• Weight: 340 g

When to replace it?

• Side play at the rear when you shake the wheel from left to right.
• Pivot that binds when you move the swingarm up and down with the shock removed.
• Rusty needles or marked sleeves when opened.

Grease the pivot regularly and replace the bearings as soon as they have play or bind. While you are at it, check the linkage.

Fitting tips

1. Support the bike, then remove the rear wheel, the chain and the swingarm pivot shaft.
2. Drive out the old bearings and sleeves and clean the bores.
3. Press in the new ones, straight, with the seals and sleeves packed with waterproof grease.
4. Refit the shaft and tighten to the manual's torque, then check that the swingarm pivots freely, with no play.

Why PROX?

Founded in 1975 and based near Amsterdam, ProX specialises in engine and clutch wear parts for off-road bikes. The brand has most of its range made in Japan, by OEM suppliers, for quality on a par with the original parts.

Spare parts and items to plan

• Linkage bearings : PROX 26.310002 · PROX 26.450022
• Grease : MOTUL 400 g

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 125 2008
KAWASAKI KX 125 2007
KAWASAKI KX 125 2006
KAWASAKI KX 125 2005
KAWASAKI KX 125 2004
KAWASAKI KX 125 2003
KAWASAKI KX 125 2002
KAWASAKI KX 125 2001
KAWASAKI KX 125 2000
KAWASAKI KX 125 1999
KAWASAKI KX 250 2008
KAWASAKI KX 250 2007
KAWASAKI KX 250 2006
KAWASAKI KX 250 2005
KAWASAKI KX 250 2004
KAWASAKI KX 250 2003
KAWASAKI KX 250 2002
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
