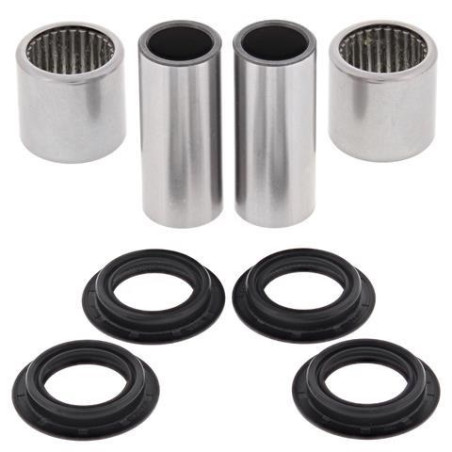

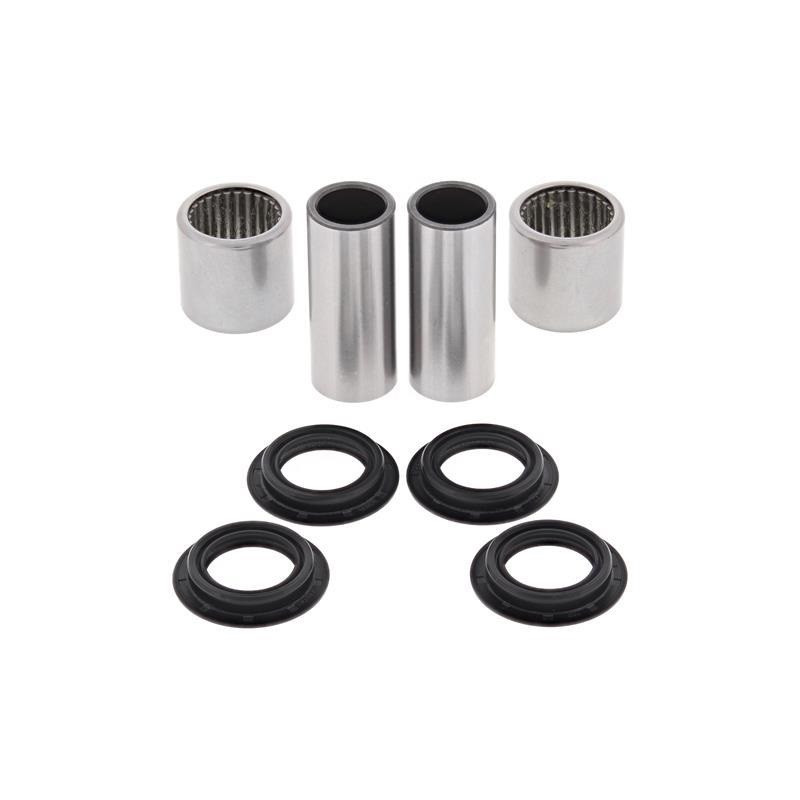

PROX Swingarm Bearing Kit for KAWASAKI KLR 650 1987-2018

On KAWASAKI KLR 650 from 1987 to 2018, the PROX 26.210120 swingarm bearing kit fits in place of the original part. The swingarm pivots on its shaft on every movement of the rear suspension. Its bearings, often needle bearings, wear from water and mud: a swingarm pivot that binds or has play makes the rear end vague and wears out the drivetrain.

Specifications

• Brand: PROX
• Manufacturer part number: 26.210120
• Weight: 230 g

When to replace it?

• Side play at the rear when you shake the wheel from left to right.
• Pivot that binds when you move the swingarm up and down with the shock removed.
• Rusty needles or marked sleeves when opened.

Grease the pivot regularly and replace the bearings as soon as they have play or bind. While you are at it, check the linkage.

Fitting tips

1. Support the bike, then remove the rear wheel, the chain and the swingarm pivot shaft.
2. Drive out the old bearings and sleeves and clean the bores.
3. Press in the new ones, straight, with the seals and sleeves packed with waterproof grease.
4. Refit the shaft and tighten to the manual's torque, then check that the swingarm pivots freely, with no play.

Why PROX?

ProX Racing Parts has been supplying engine and clutch parts to motocross riders since 1975, from its headquarters near Amsterdam. According to its catalogue, most of its parts are made in Japan, by manufacturers that also produce parts for the Japanese motorcycle makers.

Spare parts and items to plan

• Linkage bearings : PSR
• Grease : MOTUL 400 g

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KLR 650 2018
KAWASAKI KLR 650 2017
KAWASAKI KLR 650 2016
KAWASAKI KLR 650 2015
KAWASAKI KLR 650 2014
KAWASAKI KLR 650 2013
KAWASAKI KLR 650 2012
KAWASAKI KLR 650 2011
KAWASAKI KLR 650 2010
KAWASAKI KLR 650 2009
KAWASAKI KLR 650 2008
KAWASAKI KLR 650 2007
KAWASAKI KLR 650 2006
KAWASAKI KLR 650 2005
KAWASAKI KLR 650 2004
KAWASAKI KLR 650 2003
KAWASAKI KLR 650 2002
KAWASAKI KLR 650 2001
KAWASAKI KLR 650 2000
KAWASAKI KLR 650 1999
KAWASAKI KLR 650 1998
KAWASAKI KLR 650 1997
KAWASAKI KLR 650 1996
KAWASAKI KLR 650 1995
KAWASAKI KLR 650 1994
KAWASAKI KLR 650 1993
KAWASAKI KLR 650 1992
KAWASAKI KLR 650 1991
KAWASAKI KLR 650 1990
KAWASAKI KLR 650 1989
KAWASAKI KLR 650 1988
KAWASAKI KLR 650 1987
