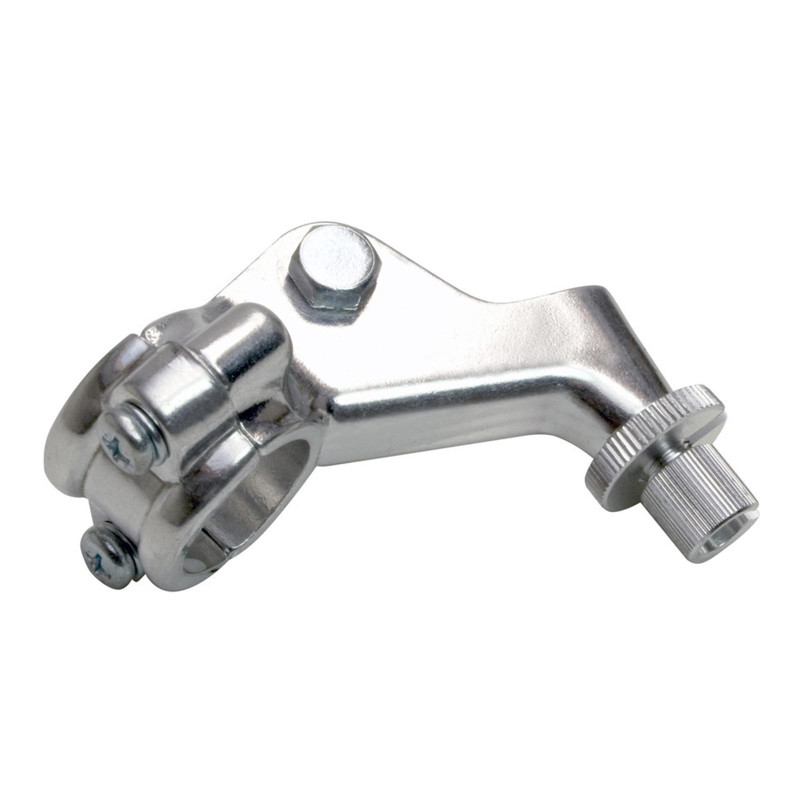

MOTION PRO Clutch Perch for KAWASAKI KX 125, KX 250, KX 500 1991-2004

The MOTION PRO 14-0117 clutch perch is designed for KAWASAKI KX 125, KX 250, KX 500 from 1991 to 2004. The clutch lever bracket (the “perch”) clamps onto the handlebar and carries the lever and the cable adjuster wheel. If it breaks in a crash, you can't pull the clutch: it's a part worth carrying as a spare.

Specifications

• Brand: MOTION PRO
• Manufacturer part number: 14-0117
• Adjuster: 8 mm
• OE-style fitment
• Engine: 2-stroke

When to replace it?

• Perch split or broken after a crash.
• Adjuster wheel seized or snapped off.
• Play in the lever pivot.

Replace it as soon as it's cracked: it can snap clean off the next time you pull the clutch.

Fitting tips

1. Slacken the cable and unhook it from the lever.
2. Remove the old perch and fit the new one in the same position on the handlebar, without overtightening it: it must be able to rotate in a crash.
3. Reconnect the cable, set the free play and grease the pivot with a suitable grease.

Why MOTION PRO?

For its T3 Slidelight cables, Motion Pro measured in-house that a conventional cable housing can wear through to metal-on-metal contact in fewer than 1,200 cycles, whereas its own inner liner lasts 30,000 cycles with minimal wear. With anodised billet aluminium end fittings and a built-in lubricator, the control stays light and smooth over time.

Spare parts and items to plan

• Cables : MOOSE · VENHILL
• Brake and clutch levers : INNTECK LP1008 · INNTECK LPF1008

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 125 2003
KAWASAKI KX 125 2002
KAWASAKI KX 125 2001
KAWASAKI KX 125 2000
KAWASAKI KX 125 1999
KAWASAKI KX 125 1998
KAWASAKI KX 125 1997
KAWASAKI KX 125 1996
KAWASAKI KX 125 1995
KAWASAKI KX 125 1994
KAWASAKI KX 125 1993
KAWASAKI KX 125 1992
KAWASAKI KX 125 1991
KAWASAKI KX 250 2004
KAWASAKI KX 250 2003
KAWASAKI KX 250 2002
KAWASAKI KX 250 2001
KAWASAKI KX 250 2000
KAWASAKI KX 250 1999
KAWASAKI KX 250 1998
KAWASAKI KX 250 1997
KAWASAKI KX 250 1996
KAWASAKI KX 250 1995
KAWASAKI KX 250 1994
KAWASAKI KX 250 1993
KAWASAKI KX 250 1992
KAWASAKI KX 250 1991
KAWASAKI KX 500 2004
KAWASAKI KX 500 2003
KAWASAKI KX 500 2002
KAWASAKI KX 500 2001
KAWASAKI KX 500 2000
KAWASAKI KX 500 1999
KAWASAKI KX 500 1998
KAWASAKI KX 500 1997
KAWASAKI KX 500 1996
KAWASAKI KX 500 1995
KAWASAKI KX 500 1994
KAWASAKI KX 500 1993
KAWASAKI KX 500 1992
KAWASAKI KX 500 1991
