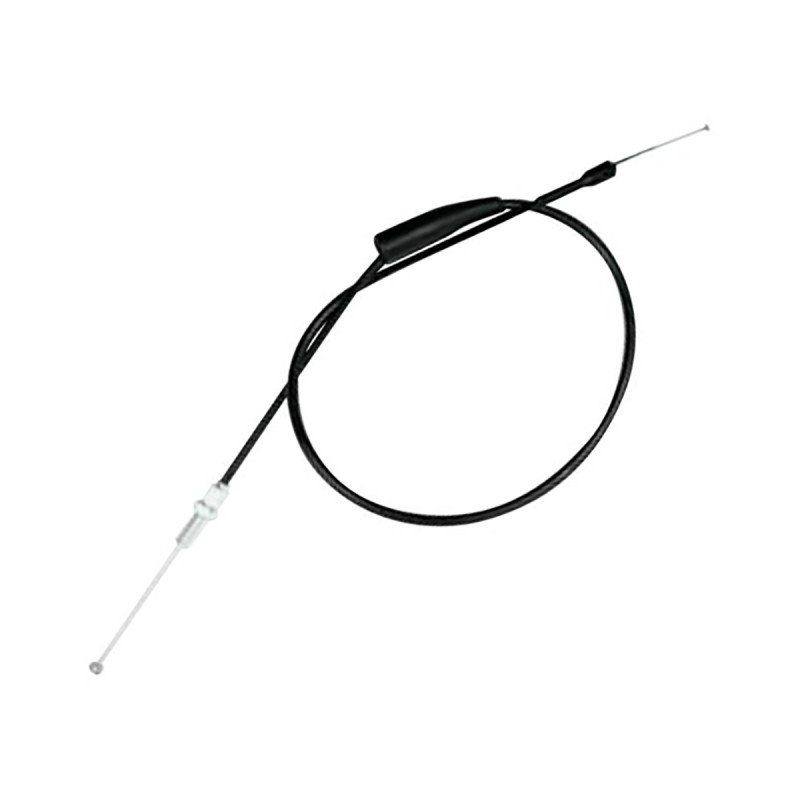

MOTION PRO Throttle Cable for KAWASAKI KX 80, KX 85, KX 100 and SUZUKI RM 100 1987-2013

The MOTION PRO 03-0186 throttle cable is designed for KAWASAKI KX 80, KX 85, KX 100 and SUZUKI RM 100 from 1987 to 2013. The throttle cable links the twistgrip to the butterfly in the carburettor or throttle body. A cable that rubs or frays makes the throttle heavy and can make it stick open: it's a safety part.

Specifications

• Brand: MOTION PRO
• Manufacturer part number: 03-0186
• Black vinyl-covered housing, like the original
• Engine: 2-stroke

When to replace it?

• Heavy twistgrip or slow throttle return.
• Frayed strands, cut or crushed outer sheath.
• Free play that can't be adjusted correctly.

Replace the cable at the first broken strand, or if the twistgrip no longer snaps back cleanly to the closed position.

Fitting tips

1. Note the routing of the old cable before removing it.
2. Route the new cable exactly the same way, with no kinks or rubbing points.
3. Lubricate the ends with a suitable grease.
4. Set the free play as per the manual, then turn the bars to full lock on both sides to check that the revs don't rise.

Why MOTION PRO?

For its T3 Slidelight cables, Motion Pro measured in-house that a conventional cable housing can wear through to metal-on-metal contact in fewer than 1,200 cycles, whereas its own inner liner lasts 30,000 cycles with minimal wear. With anodised billet aluminium end fittings and a built-in lubricator, the control stays light and smooth over time.

Spare parts and items to plan

• Grips : RFX · ODI 110 L
• Grease : MOTUL 400 g

Frequently asked questions

Why two cables?
Many bikes have a pull cable and a return cable: the second one closes the throttle even if the throttle spring weakens. Replace them together.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 80 2000
KAWASAKI KX 80 1999
KAWASAKI KX 80 1998
KAWASAKI KX 80 1997
KAWASAKI KX 80 1996
KAWASAKI KX 80 1995
KAWASAKI KX 80 1994
KAWASAKI KX 80 1993
KAWASAKI KX 80 1992
KAWASAKI KX 80 1991
KAWASAKI KX 80 1990
KAWASAKI KX 80 1989
KAWASAKI KX 80 1988
KAWASAKI KX 80 1987
KAWASAKI KX 85 2013
KAWASAKI KX 85 2012
KAWASAKI KX 85 2011
KAWASAKI KX 85 2010
KAWASAKI KX 85 2009
KAWASAKI KX 85 2008
KAWASAKI KX 85 2007
KAWASAKI KX 85 2006
KAWASAKI KX 85 2005
KAWASAKI KX 85 2004
KAWASAKI KX 85 2003
KAWASAKI KX 85 2002
KAWASAKI KX 85 2001
KAWASAKI KX 100 2013
KAWASAKI KX 100 2012
KAWASAKI KX 100 2011
SUZUKI RM 100 2003
