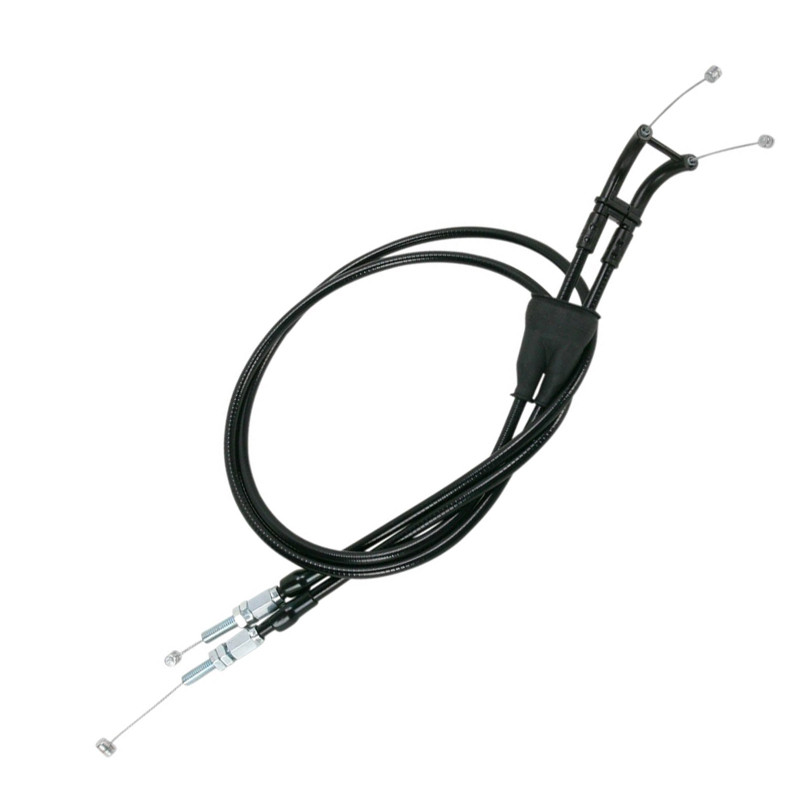

MOTION PRO Throttle Cable (push-pull set) for KAWASAKI KDX 125 and KTM EXC, MXC, SX 400, 520 1992-2012

The MOTION PRO (tirage + retour) 10-0115 throttle cable is designed for KTM EXC 400, EXC 520, MXC 400, MXC 520, SX 400, SX 520 and KAWASAKI KDX 125 from 1992 to 2012. Precise throttle control starts with the throttle cable. New and well lubricated, it makes the twistgrip light and the return crisp.

Specifications

• Brand: MOTION PRO
• Manufacturer part number: 10-0115
• Black vinyl-covered housing, like the original
• Set of two cables: pull and return

When to replace it?

• Heavy twistgrip or slow throttle return.
• Frayed strands, cut or crushed outer sheath.
• Free play that can't be adjusted correctly.

Replace the cable at the first broken strand, or if the twistgrip no longer snaps back cleanly to the closed position.

Fitting tips

1. Note the routing of the old cable before removing it.
2. Route the new cable exactly the same way, with no kinks or rubbing points.
3. Lubricate the ends with a suitable grease.
4. Set the free play as per the manual, then turn the bars to full lock on both sides to check that the revs don't rise.

Why MOTION PRO?

Motion Pro was founded in California in 1984 by Chris Carter, a former trials and motocross racer and gold medallist at the ISDT (International Six Days Trial), and the brand started out with control cables. It holds more than 30 patents and develops its parts with riders and mechanics from AMA Supercross, motocross, GNCC and enduro.

Spare parts and items to plan

• Grips : DOMINO 3353.03-01 · DOMINO 3031825
• Grease : MOTUL 400 g

Frequently asked questions

Why two cables?
Many bikes have a pull cable and a return cable: the second one closes the throttle even if the throttle spring weakens. Replace them together.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KDX 125 2012
KAWASAKI KDX 125 2011
KAWASAKI KDX 125 2010
KAWASAKI KDX 125 2009
KAWASAKI KDX 125 2008
KAWASAKI KDX 125 2007
KAWASAKI KDX 125 2006
KAWASAKI KDX 125 2005
KAWASAKI KDX 125 2004
KAWASAKI KDX 125 2003
KAWASAKI KDX 125 2002
KAWASAKI KDX 125 2001
KAWASAKI KDX 125 2000
KAWASAKI KDX 125 1999
KAWASAKI KDX 125 1998
KAWASAKI KDX 125 1997
KAWASAKI KDX 125 1996
KAWASAKI KDX 125 1995
KAWASAKI KDX 125 1994
KAWASAKI KDX 125 1993
KAWASAKI KDX 125 1992
KTM EXC 400 2002
KTM EXC 400 2001
KTM EXC 400 2000
KTM EXC 520 2002
KTM EXC 520 2001
KTM EXC 520 2000
KTM MXC 400 2002
KTM MXC 400 2001
KTM MXC 400 2000
KTM MXC 520 2002
KTM MXC 520 2001
KTM MXC 520 2000
KTM SX 400 2002
KTM SX 400 2001
KTM SX 400 2000
KTM SX 520 2002
KTM SX 520 2001
KTM SX 520 2000
