MX-TECH Low-Friction Shock Piston Ring Kit SHOWA 50 mm for HONDA, KAWASAKI, SUZUKI and BETA 2001-2026

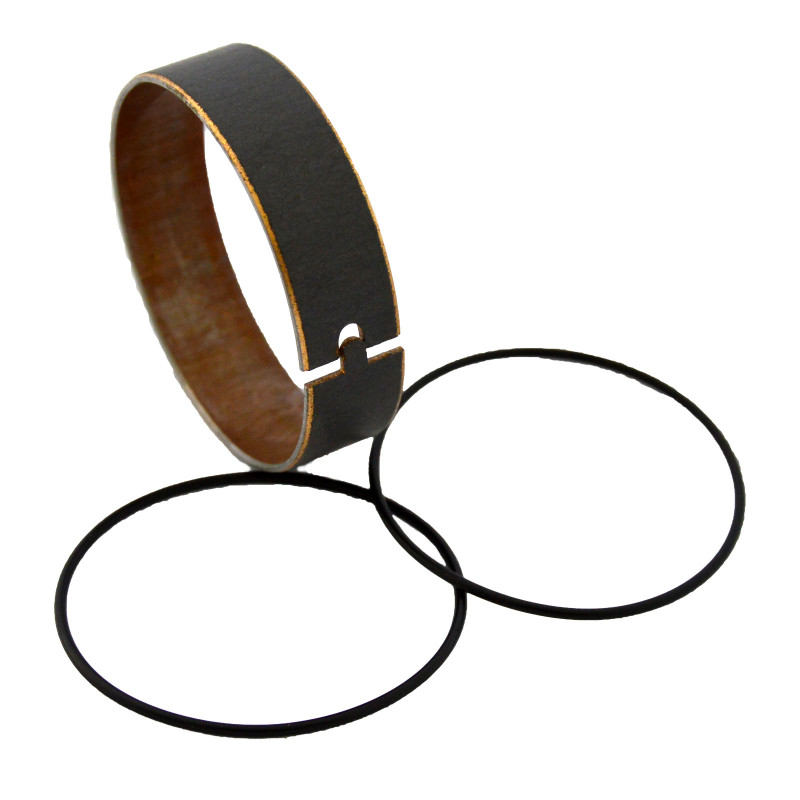

The MX-TECH SHOWA 50 mm PB01SHPB-0001 shock piston ring kit is designed for SUZUKI RM 125, RM 250, RMZ 250, RMZ 450, HONDA CR 250, CRF 250, CRF 450, KAWASAKI KXF 250, KXF 450 and BETA RX 300, RX 450 from 2001 to 2026. The shock piston ring (piston band) seals between the piston and the body: the oil has to pass through the valves, not around the piston. This kit replaces the original ring with a low-friction ring fitted over an O-ring.

Specifications

• Brand: MX-TECH
• Manufacturer part number: PB01SHPB-0001
• EAN code: 01000120
• O-ring included

When to replace it?

• Piston ring worn or scored at service.
• Damping that fades as the shock heats up.
• Shock service or tuning.

Check the make and the piston diameter of your shock (in the name). This job is done with the shock taken apart and drained of nitrogen: it is meant for workshops and properly equipped mechanics.

Fitting tips

1. Release the nitrogen and take the shock apart following the manual.
2. Remove the old ring from the piston without scratching the groove.
3. Fit the O-ring and then the ring, refit the piston and bleed the shock before recharging the nitrogen.

Spare parts and items to plan

• Shock rebuild kit : ALL BALLS 29-1013 · ALL BALLS 29-5008

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RX 300 2025
BETA RX 300 2024
BETA RX 450 2025
BETA RX 450 2024
HONDA CR 250 2007
HONDA CR 250 2006
HONDA CR 250 2005
HONDA CR 250 2004
HONDA CR 250 2003
HONDA CR 250 2002
HONDA CRF 250 2024
HONDA CRF 250 2023
HONDA CRF 250 2022
HONDA CRF 250 2021
HONDA CRF 250 2020
HONDA CRF 250 2019
HONDA CRF 250 2018
HONDA CRF 250 2017
HONDA CRF 250 2016
HONDA CRF 250 2015
HONDA CRF 250 2014
HONDA CRF 250 2013
HONDA CRF 250 2012
HONDA CRF 250 2011
HONDA CRF 250 2010
HONDA CRF 250 2009
HONDA CRF 250 2008
HONDA CRF 250 2007
HONDA CRF 250 2006
HONDA CRF 250 2005
HONDA CRF 250 2004
HONDA CRF 450 2024
HONDA CRF 450 2023
HONDA CRF 450 2022
HONDA CRF 450 2021
HONDA CRF 450 2020
HONDA CRF 450 2019
HONDA CRF 450 2018
HONDA CRF 450 2017
HONDA CRF 450 2008
HONDA CRF 450 2007
HONDA CRF 450 2006
HONDA CRF 450 2005
HONDA CRF 450 2004
HONDA CRF 450 2003
HONDA CRF 450 2002
KAWASAKI KXF 250 2019
KAWASAKI KXF 250 2018
KAWASAKI KXF 250 2017
KAWASAKI KXF 250 2016
KAWASAKI KXF 250 2015
KAWASAKI KXF 250 2014
KAWASAKI KXF 250 2013
KAWASAKI KXF 250 2012
KAWASAKI KXF 250 2011
KAWASAKI KXF 250 2010
KAWASAKI KXF 250 2009
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
KAWASAKI KXF 450 2026
KAWASAKI KXF 450 2025
KAWASAKI KXF 450 2024
KAWASAKI KXF 450 2023
KAWASAKI KXF 450 2022
KAWASAKI KXF 450 2021
KAWASAKI KXF 450 2020
KAWASAKI KXF 450 2019
KAWASAKI KXF 450 2018
KAWASAKI KXF 450 2017
KAWASAKI KXF 450 2016
KAWASAKI KXF 450 2015
SUZUKI RM 125 2008
SUZUKI RM 125 2007
SUZUKI RM 125 2006
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 125 2003
SUZUKI RM 125 2002
SUZUKI RM 125 2001
SUZUKI RM 250 2008
SUZUKI RM 250 2007
SUZUKI RM 250 2006
SUZUKI RM 250 2005
SUZUKI RM 250 2004
SUZUKI RM 250 2003
SUZUKI RMZ 250 2009
SUZUKI RMZ 250 2008
SUZUKI RMZ 250 2007
SUZUKI RMZ 450 2009
SUZUKI RMZ 450 2008
SUZUKI RMZ 450 2007
SUZUKI RMZ 450 2006
SUZUKI RMZ 450 2005
