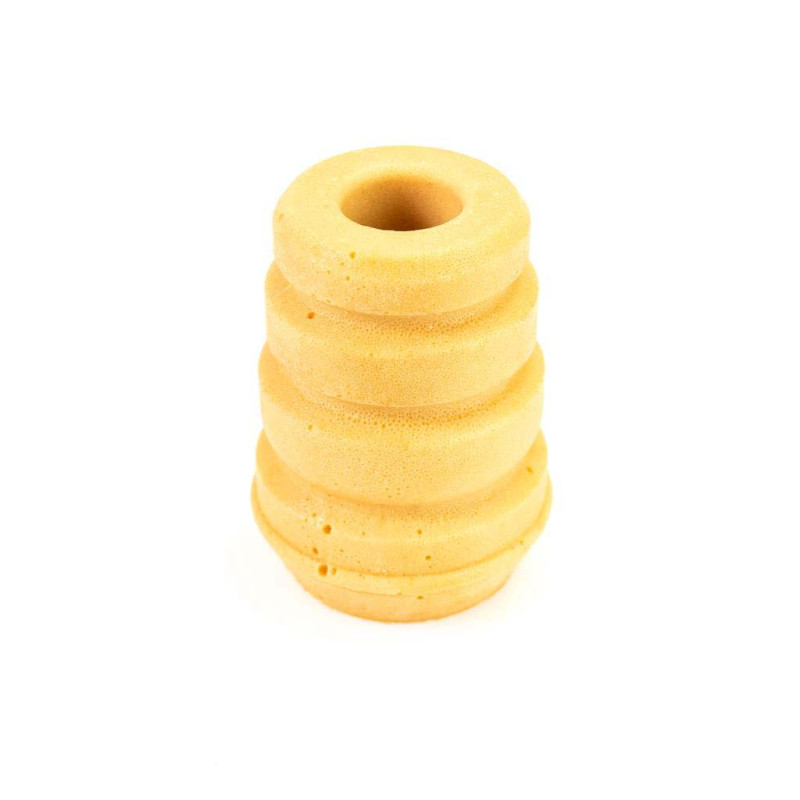

KYB Shock Bottom-Out Bumper for YAMAHA, KAWASAKI, HUSQVARNA, HONDA and SUZUKI 2001-2014

The KYB KYB-1001002 shock bottom-out bumper is designed for HUSQVARNA CR 125, TC 250, TC 449, TC 511, TE 250, TE 310, TE 449, TE 511, YAMAHA WRF 250, WRF 450, YZ 125, YZ 250, YZF 250, YZF 426, YZF 450, KAWASAKI KLX 450, KX 125, KX 250, KXF 250, KXF 450, SUZUKI RM 250, RMZ 250 and HONDA CR 125 from 2001 to 2014. The bottom-out bumper is a rubber pad fitted on the shock shaft. At the end of compression, it cushions the contact before the shock body reaches a hard metal stop.

Specifications

• Brand: KYB
• Manufacturer part number: KYB-1001002
• Dimensions: D.16mm x D.34mm x H 59mm

When to replace it?

• Bumper cracked, crumbling or crushed.
• Hard, noisy bottoming at the rear.
• Shock service: it is checked every time the shock is opened.

Check the bumper at every shock service, or as soon as the rear end bottoms out hard. Check the dimensions given (inside diameter, outside diameter and height).

Fitting tips

1. Remove the shock and the spring.
2. Remove the old bumper (on some shocks, the shaft clevis has to come off).
3. Fit the new bumper, refit the spring and set the preload as before.

Why KYB?

KYB, long known as Kayaba, was born in Japan in November 1919, when 21-year-old Shiro Kayaba opened his research centre. Now one of the world's leading hydraulics specialists, with more than 15,000 employees, the brand describes its Gifu North plant, opened in 1968, as the largest shock absorber factory in the world.

Spare parts and items to plan

• Shock spring : INNTECK · HYPERPRO
• Shock rebuild kit : ALL BALLS · PROX

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 125 2007
HONDA CR 125 2006
HONDA CR 125 2005
HONDA CR 125 2004
HONDA CR 125 2003
HONDA CR 125 2002
HONDA CR 125 2001
HUSQVARNA CR 125 2013
HUSQVARNA CR 125 2012
HUSQVARNA CR 125 2011
HUSQVARNA TC 250 2013
HUSQVARNA TC 250 2012
HUSQVARNA TC 250 2011
HUSQVARNA TC 449 2013
HUSQVARNA TC 449 2012
HUSQVARNA TC 449 2011
HUSQVARNA TC 511 2013
HUSQVARNA TC 511 2012
HUSQVARNA TC 511 2011
HUSQVARNA TE 250 2013
HUSQVARNA TE 250 2012
HUSQVARNA TE 250 2011
HUSQVARNA TE 310 2013
HUSQVARNA TE 310 2012
HUSQVARNA TE 310 2011
HUSQVARNA TE 449 2013
HUSQVARNA TE 449 2012
HUSQVARNA TE 449 2011
HUSQVARNA TE 511 2013
HUSQVARNA TE 511 2012
HUSQVARNA TE 511 2011
KAWASAKI KLX 450 2007
KAWASAKI KX 125 2008
KAWASAKI KX 125 2007
KAWASAKI KX 125 2006
KAWASAKI KX 125 2005
KAWASAKI KX 125 2004
KAWASAKI KX 125 2003
KAWASAKI KX 125 2002
KAWASAKI KX 125 2001
KAWASAKI KX 250 2008
KAWASAKI KX 250 2007
KAWASAKI KX 250 2006
KAWASAKI KX 250 2005
KAWASAKI KX 250 2004
KAWASAKI KX 250 2003
KAWASAKI KX 250 2002
KAWASAKI KX 250 2001
KAWASAKI KXF 250 2005
KAWASAKI KXF 250 2004
KAWASAKI KXF 450 2014
KAWASAKI KXF 450 2013
KAWASAKI KXF 450 2012
KAWASAKI KXF 450 2011
KAWASAKI KXF 450 2010
KAWASAKI KXF 450 2009
KAWASAKI KXF 450 2008
KAWASAKI KXF 450 2007
KAWASAKI KXF 450 2006
SUZUKI RM 250 2003
SUZUKI RM 250 2002
SUZUKI RM 250 2001
SUZUKI RMZ 250 2006
SUZUKI RMZ 250 2005
SUZUKI RMZ 250 2004
YAMAHA WRF 250 2014
YAMAHA WRF 250 2013
YAMAHA WRF 250 2012
YAMAHA WRF 250 2011
YAMAHA WRF 250 2010
YAMAHA WRF 250 2009
YAMAHA WRF 250 2008
YAMAHA WRF 250 2007
YAMAHA WRF 250 2006
YAMAHA WRF 250 2005
YAMAHA WRF 250 2004
YAMAHA WRF 250 2003
YAMAHA WRF 450 2011
YAMAHA WRF 450 2010
YAMAHA WRF 450 2009
YAMAHA WRF 450 2008
YAMAHA WRF 450 2007
YAMAHA WRF 450 2006
YAMAHA WRF 450 2005
YAMAHA WRF 450 2004
YAMAHA WRF 450 2003
YAMAHA YZ 125 2005
YAMAHA YZ 125 2004
YAMAHA YZ 125 2003
YAMAHA YZ 125 2002
YAMAHA YZ 125 2001
YAMAHA YZ 250 2005
YAMAHA YZ 250 2004
YAMAHA YZ 250 2003
YAMAHA YZ 250 2002
YAMAHA YZ 250 2001
YAMAHA YZF 250 2005
YAMAHA YZF 250 2004
YAMAHA YZF 250 2003
YAMAHA YZF 250 2002
YAMAHA YZF 250 2001
YAMAHA YZF 426 2002
YAMAHA YZF 426 2001
YAMAHA YZF 450 2005
YAMAHA YZF 450 2004
YAMAHA YZF 450 2003
