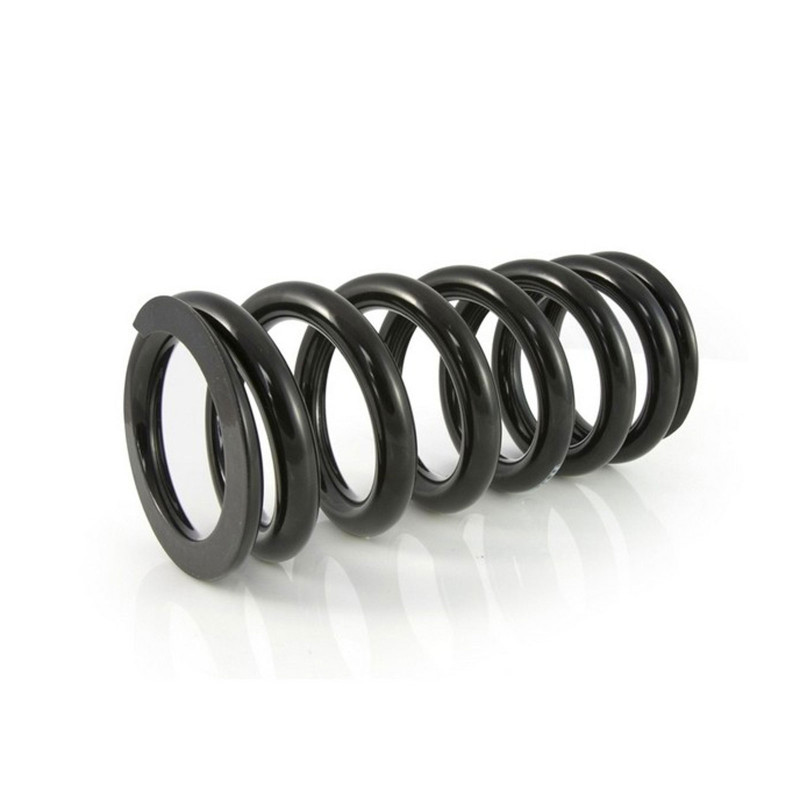

INNTECK WP Linkage Shock Spring for HUSQVARNA, KTM and GAS GAS 2022-2027

The INNTECK shock spring is designed for HUSQVARNA FC 250, FC 350, FC 450, FE 250, FE 350, FE 450, FE 501, FS 450, FX 350, FX 450, TC 125, TC 250, TE 150, TE 250, TE 300, TX 300, KTM SX 125, SX 150, SX 250, SX 300, SXF 250, SXF 350, SXF 450, XC 250, XC 300, XCF 250, XCF 350, XCF 450 and GAS GAS EC 250, EC 300, ECF 250, ECF 350, ECF 450, ECF 500, MC 125, MC 250, MCF 250, MCF 350, MCF 450 from 2022 to 2027. The shock spring carries the rear of the bike and the rider. Its spring rate must match your riding weight with gear: with the right spring, sag can be set without pushing the preload to extremes and the rear end keeps its traction.

Specifications

• Brand: INNTECK
• Manufacturer part numbers: QS3832, QS3834, QS3836, QS3838, QS3840, QS3842, QS3844, QS3846, QS3848, QS3850, QS3852, QS3854, QS3856, QS3858, QS3860, QS3862
• Diameter: 63 mm, length: 240 mm
• Available versions: 32 N/mm: ref. QS3832; 34 N/mm: ref. QS3834; 36 N/mm: ref. QS3836; 38 N/mm: ref. QS3838; 40 N/mm: ref. QS3840; 42 N/mm: ref. QS3842; 44 N/mm: ref. QS3844; 46 N/mm: ref. QS3846; 48 N/mm: ref. QS3848; 50 N/mm: ref. QS3850; 52 N/mm: ref. QS3852; 54 N/mm: ref. QS3854; 56 N/mm: ref. QS3856; 58 N/mm: ref. QS3858; 60 N/mm: ref. QS3860; 62 N/mm: ref. QS3862

Choosing the right spring rate

First set the rider sag to the manual's value using the preload collar, then measure the static sag (bike without rider): if it is too small, the spring is too soft for you; if it is too big, it is too stiff. Then change the spring rate by one or two steps.

When to replace it?

• Impossible to get the right rider sag without tightening or loosening the preload a long way.
• The rear end bottoms out often or squats under acceleration: spring too soft.
• The rear end bounces and lacks traction: spring too stiff.
• You weigh clearly more or less than the standard rider the manufacturer designed for.

Spring rate is given in N/mm (1 kg/mm is about 9.81 N/mm). Check the shock type (KYB, SHOWA, WP with linkage or WP PDS, which has no linkage) and the dimensions: the diameter and length must match your shock.

Fitting tips

1. Remove the shock as described in the manual, with the bike supported so the rear wheel is off the ground.
2. Back the preload off completely, remove the spring seat and change the spring.
3. Refit the shock to the specified torque, then set the rider sag with the preload.
4. Rebalance the fork afterwards if needed: a higher or lower rear end changes how the front end behaves.

Spare parts and items to plan

• Shock rebuild kit : ALL BALLS
• Linkage bearings : PROX 26.450068 · PROX 26.110180

Frequently asked questions

Who is a progressive spring for?
Its rate increases as it is compressed: soft at the start of the travel for comfort, firmer toward the end of the travel to resist bottoming out. It is mainly used on WP PDS shocks, which are fitted without linkage.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 250 2027
GAS GAS EC 250 2026
GAS GAS EC 250 2025
GAS GAS EC 250 2024
GAS GAS EC 300 2027
GAS GAS EC 300 2026
GAS GAS EC 300 2025
GAS GAS EC 300 2024
GAS GAS ECF 250 2027
GAS GAS ECF 250 2026
GAS GAS ECF 250 2025
GAS GAS ECF 250 2024
GAS GAS ECF 350 2027
GAS GAS ECF 350 2026
GAS GAS ECF 350 2025
GAS GAS ECF 350 2024
GAS GAS ECF 450 2027
GAS GAS ECF 450 2026
GAS GAS ECF 450 2025
GAS GAS ECF 450 2024
GAS GAS ECF 500 2027
GAS GAS ECF 500 2026
GAS GAS ECF 500 2025
GAS GAS ECF 500 2024
GAS GAS MC 125 2027
GAS GAS MC 125 2026
GAS GAS MC 125 2025
GAS GAS MC 125 2024
GAS GAS MC 250 2027
GAS GAS MC 250 2026
GAS GAS MC 250 2025
GAS GAS MC 250 2024
GAS GAS MCF 250 2027
GAS GAS MCF 250 2026
GAS GAS MCF 250 2025
GAS GAS MCF 250 2024
GAS GAS MCF 350 2027
GAS GAS MCF 350 2026
GAS GAS MCF 350 2025
GAS GAS MCF 350 2024
GAS GAS MCF 450 2027
GAS GAS MCF 450 2026
GAS GAS MCF 450 2025
GAS GAS MCF 450 2024
HUSQVARNA FC 250 2027
HUSQVARNA FC 250 2026
HUSQVARNA FC 250 2025
HUSQVARNA FC 250 2024
HUSQVARNA FC 250 2023
HUSQVARNA FC 350 2027
HUSQVARNA FC 350 2026
HUSQVARNA FC 350 2025
HUSQVARNA FC 350 2024
HUSQVARNA FC 350 2023
HUSQVARNA FC 450 2027
HUSQVARNA FC 450 2026
HUSQVARNA FC 450 2025
HUSQVARNA FC 450 2024
HUSQVARNA FC 450 2023
HUSQVARNA FC 450 2022
HUSQVARNA FE 250 2027
HUSQVARNA FE 250 2026
HUSQVARNA FE 250 2025
HUSQVARNA FE 250 2024
HUSQVARNA FE 350 2027
HUSQVARNA FE 350 2026
HUSQVARNA FE 350 2025
HUSQVARNA FE 350 2024
HUSQVARNA FE 450 2027
HUSQVARNA FE 450 2026
HUSQVARNA FE 450 2025
HUSQVARNA FE 450 2024
HUSQVARNA FE 501 2027
HUSQVARNA FE 501 2026
HUSQVARNA FE 501 2025
HUSQVARNA FE 501 2024
HUSQVARNA FS 450 2027
HUSQVARNA FS 450 2026
HUSQVARNA FS 450 2025
HUSQVARNA FS 450 2024
HUSQVARNA FS 450 2023
HUSQVARNA FX 350 2027
HUSQVARNA FX 350 2026
HUSQVARNA FX 350 2025
HUSQVARNA FX 350 2024
HUSQVARNA FX 350 2023
HUSQVARNA FX 450 2027
HUSQVARNA FX 450 2026
HUSQVARNA FX 450 2025
HUSQVARNA FX 450 2024
HUSQVARNA FX 450 2023
HUSQVARNA TC 125 2027
HUSQVARNA TC 125 2026
HUSQVARNA TC 125 2025
HUSQVARNA TC 125 2024
HUSQVARNA TC 125 2023
HUSQVARNA TC 250 2027
HUSQVARNA TC 250 2026
HUSQVARNA TC 250 2025
HUSQVARNA TC 250 2024
HUSQVARNA TC 250 2023
HUSQVARNA TE 150 2027
HUSQVARNA TE 150 2026
HUSQVARNA TE 150 2025
HUSQVARNA TE 150 2024
HUSQVARNA TE 250 2027
HUSQVARNA TE 250 2026
HUSQVARNA TE 250 2025
HUSQVARNA TE 250 2024
HUSQVARNA TE 300 2027
HUSQVARNA TE 300 2026
HUSQVARNA TE 300 2025
HUSQVARNA TE 300 2024
HUSQVARNA TX 300 2027
HUSQVARNA TX 300 2026
HUSQVARNA TX 300 2025
HUSQVARNA TX 300 2024
HUSQVARNA TX 300 2023
KTM SX 125 2027
KTM SX 125 2026
KTM SX 125 2025
KTM SX 125 2024
KTM SX 125 2023
KTM SX 150 2027
KTM SX 150 2026
KTM SX 150 2025
KTM SX 150 2024
KTM SX 150 2023
KTM SX 250 2027
KTM SX 250 2026
KTM SX 250 2025
KTM SX 250 2024
KTM SX 250 2023
KTM SX 300 2027
KTM SX 300 2026
KTM SX 300 2025
KTM SX 300 2024
KTM SX 300 2023
KTM SXF 250 2027
KTM SXF 250 2026
KTM SXF 250 2025
KTM SXF 250 2024
KTM SXF 250 2023
KTM SXF 350 2027
KTM SXF 350 2026
KTM SXF 350 2025
KTM SXF 350 2024
KTM SXF 350 2023
KTM SXF 450 2027
KTM SXF 450 2026
KTM SXF 450 2025
KTM SXF 450 2024
KTM SXF 450 2023
KTM SXF 450 2022
KTM XC 250 2027
KTM XC 250 2026
KTM XC 250 2025
KTM XC 250 2024
KTM XC 250 2023
KTM XC 300 2027
KTM XC 300 2026
KTM XC 300 2025
KTM XC 300 2024
KTM XC 300 2023
KTM XCF 250 2027
KTM XCF 250 2026
KTM XCF 250 2025
KTM XCF 250 2024
KTM XCF 250 2023
KTM XCF 350 2027
KTM XCF 350 2026
KTM XCF 350 2025
KTM XCF 350 2024
KTM XCF 350 2023
KTM XCF 450 2027
KTM XCF 450 2026
KTM XCF 450 2025
KTM XCF 450 2024
KTM XCF 450 2023
