KIBBLEWHITE valve spring kit for SUZUKI DR-Z 400 E, DR-Z 400 S, DR-Z 400 SM, LT-Z 400 2X4 from 2000 to 2019

KIBBLEWHITE offers this valve spring kit for SUZUKI DR-Z 400 E, DR-Z 400 S, DR-Z 400 SM, LT-Z 400 2X4 from 2000 to 2019. The camshaft opens the valves and the springs close them. At high revs the spring must bring the valve back very quickly: if it is tired, the valve can no longer keep up and “floats”.

Why replace the valve springs?

The benefits:

• Safe running at high revs again.
• Essential with a hotter camshaft or steel valves, which are heavier than titanium.
• Quality steel springs keep their strength longer.

Why choose KIBBLEWHITE?

Kibblewhite chrome-silicon steel springs prevent valve float at high revs.

When should you replace the valve springs on your SUZUKI DR-Z 400 S?

Hard hot starting, valve clearance that keeps closing up or a noisy timing chain: the valve train is wearing.

Specifications and fitting tips

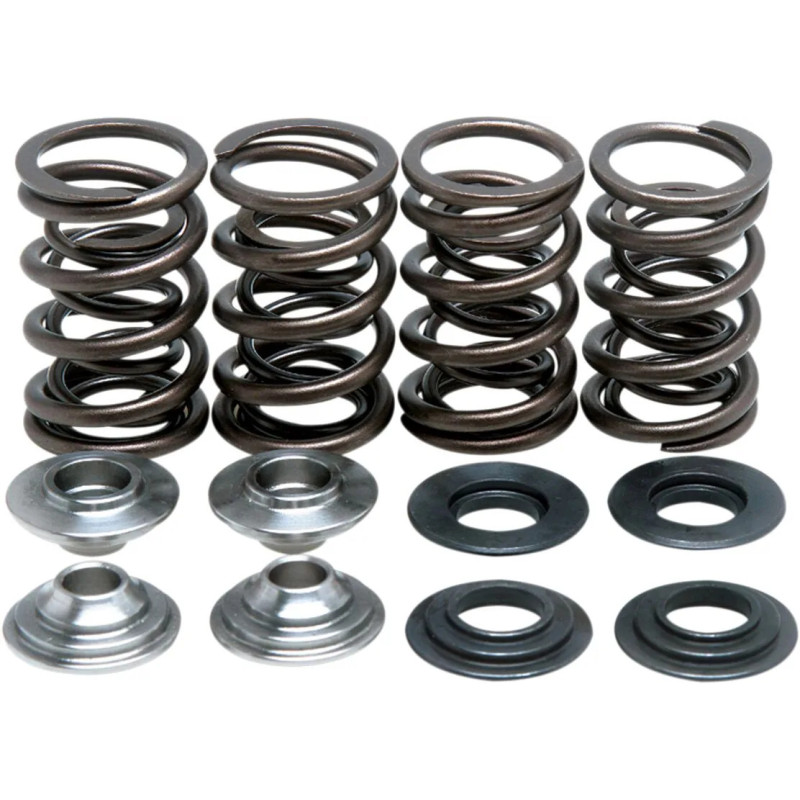

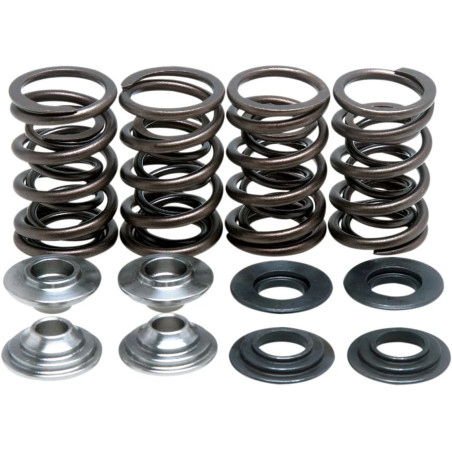

• Contents: 4 x Titanium Retainers, 4 x CrSi Valve Springs, 4 x H.T. Steel Basewashers
• Application: Exhaust, Intake
• Retainer material: Titanium
• Material: Chrome silicon alloy
• Spring pressure: 171 lb
• Seat pressure: 57 lb
• Suitable for supercharged or turbocharged applications

Cross-Mania tip: Check the guides and seats before reassembly and lap the valves in. Titanium valves must not be fitted on worn seats.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI DR-Z 400 2005
SUZUKI DR-Z 400 2004
SUZUKI DR-Z 400 2003
SUZUKI DR-Z 400 2002
SUZUKI DR-Z 400 2001
SUZUKI DR-Z 400 2000
SUZUKI DR-Z 400 E 2007
SUZUKI DR-Z 400 E 2006
SUZUKI DR-Z 400 E 2005
SUZUKI DR-Z 400 E 2004
SUZUKI DR-Z 400 E 2003
SUZUKI DR-Z 400 E 2002
SUZUKI DR-Z 400 E 2001
SUZUKI DR-Z 400 E 2000
SUZUKI DR-Z 400 S 2019
SUZUKI DR-Z 400 S 2017
SUZUKI DR-Z 400 S 2016
SUZUKI DR-Z 400 S 2015
SUZUKI DR-Z 400 S 2014
SUZUKI DR-Z 400 S 2013
SUZUKI DR-Z 400 S 2012
SUZUKI DR-Z 400 S 2011
SUZUKI DR-Z 400 S 2010
SUZUKI DR-Z 400 S 2009
SUZUKI DR-Z 400 S 2008
SUZUKI DR-Z 400 S 2007
SUZUKI DR-Z 400 S 2006
SUZUKI DR-Z 400 S 2005
SUZUKI DR-Z 400 S 2004
SUZUKI DR-Z 400 S 2003
SUZUKI DR-Z 400 S 2002
SUZUKI DR-Z 400 S 2001
SUZUKI DR-Z 400 S 2000
SUZUKI DR-Z 400 SM 2016
SUZUKI DR-Z 400 SM 2015
SUZUKI DR-Z 400 SM 2014
SUZUKI DR-Z 400 SM 2013
SUZUKI DR-Z 400 SM 2012
SUZUKI DR-Z 400 SM 2011
SUZUKI DR-Z 400 SM 2010
SUZUKI DR-Z 400 SM 2009
SUZUKI DR-Z 400 SM 2008
SUZUKI DR-Z 400 SM 2007
SUZUKI DR-Z 400 SM 2006
SUZUKI DR-Z 400 SM 2005
SUZUKI LT-Z 400 2X4 2018
SUZUKI LT-Z 400 2X4 2017
SUZUKI LT-Z 400 2X4 2016
SUZUKI LT-Z 400 2X4 2015
SUZUKI LT-Z 400 2X4 2014
SUZUKI LT-Z 400 2X4 2013
SUZUKI LT-Z 400 2X4 2012
SUZUKI LT-Z 400 2X4 2011
SUZUKI LT-Z 400 2X4 2010
SUZUKI LT-Z 400 2X4 2009
SUZUKI LT-Z 400 2X4 2008
SUZUKI LT-Z 400 2X4 2007
SUZUKI LT-Z 400 2X4 2006
SUZUKI LT-Z 400 2X4 2005
SUZUKI LT-Z 400 2X4 2004
SUZUKI LT-Z 400 2X4 2003
SUZUKI LT-Z 400 Z 2X4 2012
SUZUKI LT-Z 400 Z 2X4 2009
SUZUKI LT-Z 400 Z 2X4 2008
SUZUKI LT-Z 400 Z 2X4 2007
SUZUKI LT-Z 400 Z 2X4 2006
SUZUKI LT-Z 400 Z 2X4 2005
SUZUKI LT-Z 400 Z 2X4 2004
