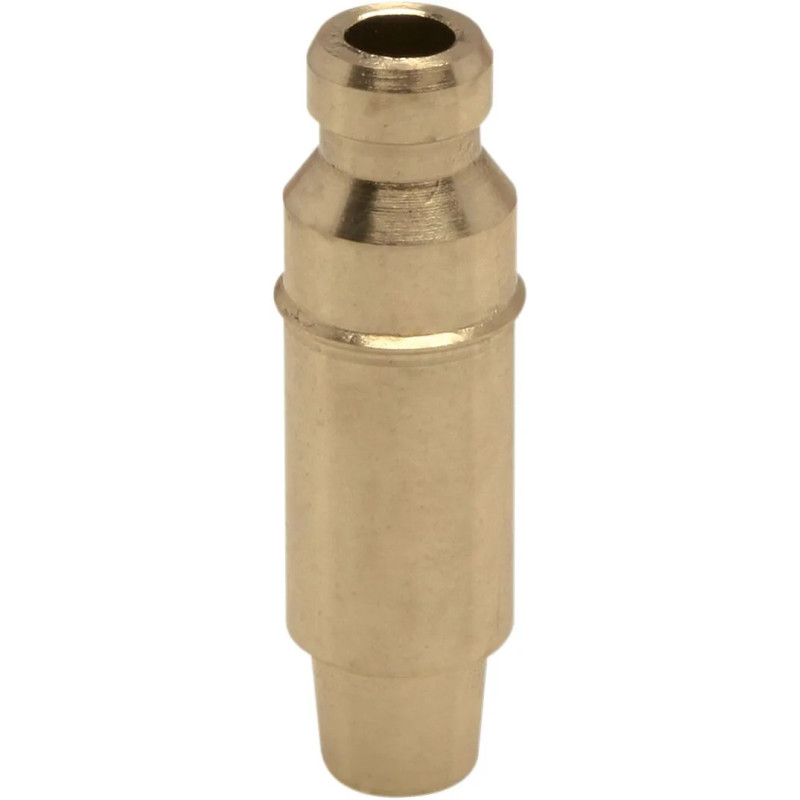

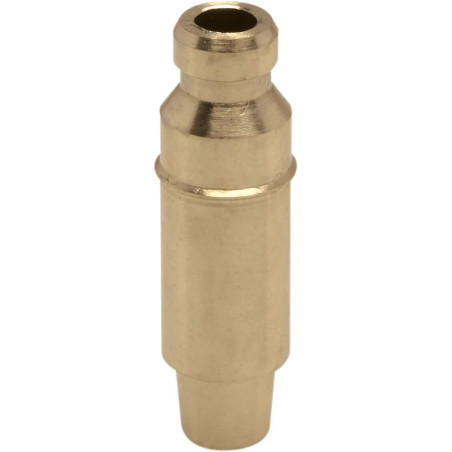

KIBBLEWHITE valve guide for KAWASAKI KX 250 F from 2004 to 2016

KIBBLEWHITE offers this valve guide for KAWASAKI KX 250 F from 2004 to 2016. The guide is a bush pressed into the cylinder head. The valve stem slides in it thousands of times a minute.

Why replace a valve guide?

The benefits:

• Remove the play of the valve in its guide.
• The valve lands right in the centre of its seat: sealing and compression restored.
• A quality guide slides well and lasts, even with titanium valves.

Why choose KIBBLEWHITE?

Kibblewhite guides are C63000 nickel-aluminium bronze: the nickel resists wear, the copper draws heat away from the valve more effectively.

When should you replace the valve guides on your KAWASAKI KX 250 F?

The clearance between valve stem and guide is measured with the head off: beyond the manufacturer's limit, guides and seats are redone together with the valves.

Specifications and fitting tips

• Application: Exhaust, Intake
• Outside diameter: 0.3765"
• Inside diameter: 0.1765"
• Material: C674 bronze
• Size: Standard
• The softer manganese guides are easily reamed, then gently finished with high-quality Kibblewhite ball hones

Cross-Mania tip: Fitting requires special tools and valve lapping: it is a job for a cylinder head specialist.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 250 F 2016
KAWASAKI KX 250 F 2015
KAWASAKI KX 250 F 2014
KAWASAKI KX 250 F 2013
KAWASAKI KX 250 F 2012
KAWASAKI KX 250 F 2011
KAWASAKI KX 250 F 2010
KAWASAKI KX 250 F 2009
KAWASAKI KX 250 F 2008
KAWASAKI KX 250 F 2007
KAWASAKI KX 250 F 2006
KAWASAKI KX 250 F 2005
KAWASAKI KX 250 F 2004
