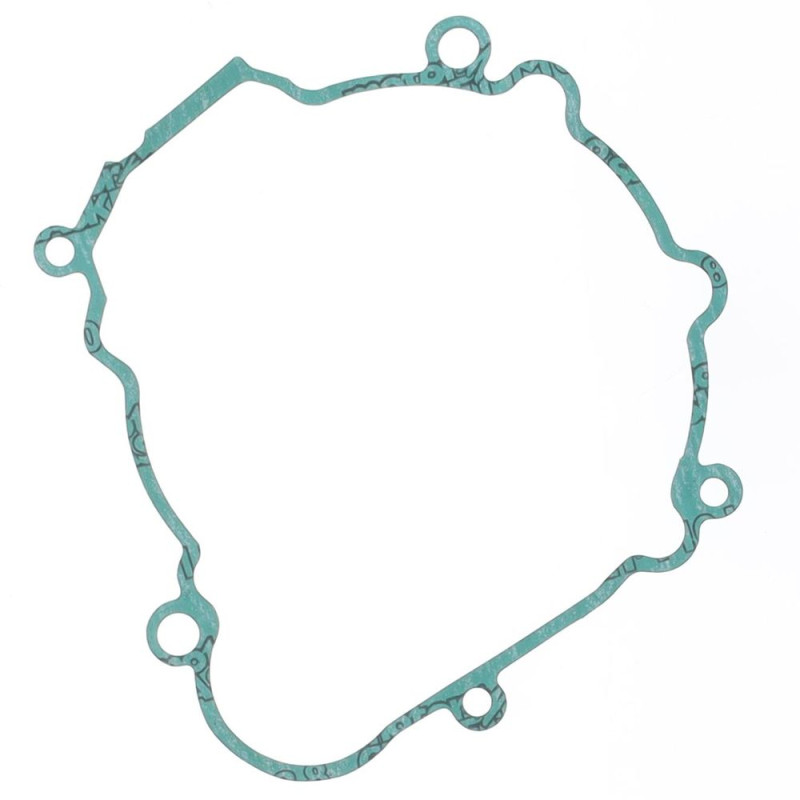

ATHENA Ignition Cover Gasket for BETA RR 250, RR 300, RX 250, RX 300, RX 350, XTRAINER 250, XTRAINER 300 2013-2026

The ATHENA S410060017001 ignition cover gasket is designed for BETA RR 250, RR 300, RX 250, RX 300, RX 350, XTRAINER 250, XTRAINER 300 from 2013 to 2026. On the left-hand side of the engine, the ignition cover protects the flywheel and the stator. Its gasket keeps it sealed: a crushed or torn gasket lets oil, water or dust through.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410060017001
• EAN code: 8051757087242
• Weight: 50 g
• Engine: 2-stroke

When to replace it?

• Oil seeping around the edge of the ignition cover.
• Water or mud inside the cover after washing.
• Gasket torn or stuck on removal.

Every time the ignition cover comes off: stator check, replacement of an ignition-side crankshaft oil seal or bottom end rebuild.

Fitting tips

1. Clean both gasket faces without scratching them.
2. Fit the gasket dry; a dab of grease can hold it in place during reassembly.
3. Tighten the screws in a criss-cross pattern, without forcing, to the manufacturer's torque.
4. On an engine where the ignition runs in oil, top up the oil level after reassembly.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Complete engine gasket kit : ATHENA · PROX
• Clutch cover gasket : see the selection
• 2-stroke oil : LIQUI MOLY 1 L · MOTUL 1 L

Frequently asked questions

Can I reuse the old gasket?
No: a paper or fibre gasket tears or stays crushed when removed. If you're opening several covers, a complete engine gasket kit often works out cheaper.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
BETA RR 250 2024
BETA RR 250 2023
BETA RR 250 2022
BETA RR 250 2021
BETA RR 250 2020
BETA RR 250 2019
BETA RR 250 2018
BETA RR 250 2017
BETA RR 250 2016
BETA RR 250 2015
BETA RR 250 2014
BETA RR 250 2013
BETA RR 300 2024
BETA RR 300 2023
BETA RR 300 2022
BETA RR 300 2021
BETA RR 300 2020
BETA RR 300 2019
BETA RR 300 2018
BETA RR 300 2017
BETA RR 300 2016
BETA RR 300 2015
BETA RR 300 2014
BETA RR 300 2013
BETA RX 250 2026
BETA RX 300 2025
BETA RX 300 2024
BETA RX 300 2023
BETA RX 350 2026
BETA XTRAINER 250 2026
BETA XTRAINER 250 2025
BETA XTRAINER 250 2024
BETA XTRAINER 250 2023
BETA XTRAINER 250 2022
BETA XTRAINER 250 2021
BETA XTRAINER 250 2020
BETA XTRAINER 250 2019
BETA XTRAINER 250 2018
BETA XTRAINER 250 2017
BETA XTRAINER 300 2026
BETA XTRAINER 300 2025
BETA XTRAINER 300 2024
BETA XTRAINER 300 2023
BETA XTRAINER 300 2022
BETA XTRAINER 300 2021
BETA XTRAINER 300 2020
BETA XTRAINER 300 2019
BETA XTRAINER 300 2018
BETA XTRAINER 300 2017
BETA XTRAINER 300 2016
BETA XTRAINER 300 2015
