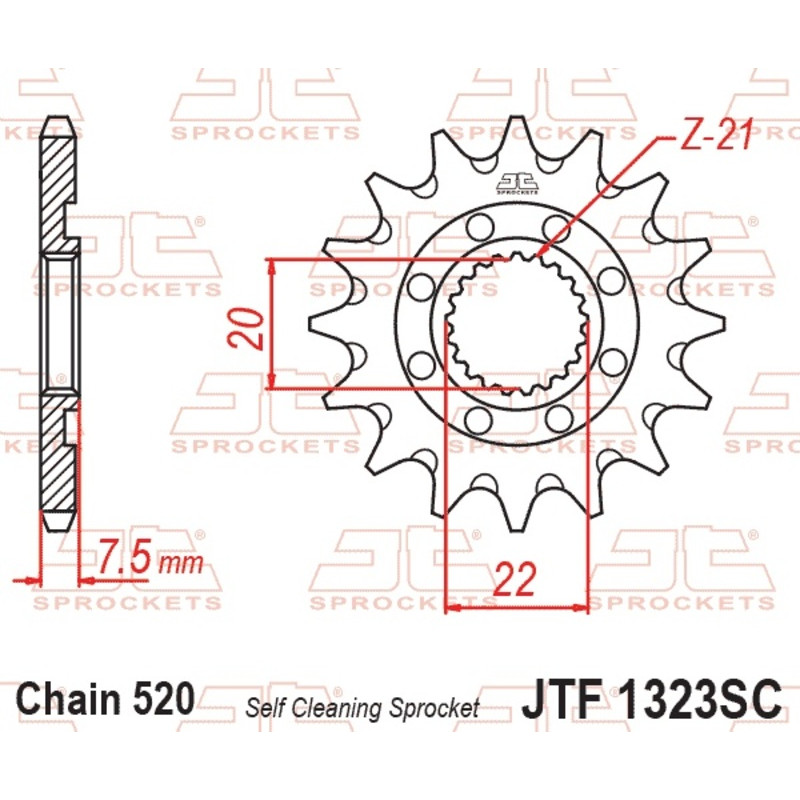

JT SPROCKETS steel front sprocket 520 pitch for HONDA CR 125, CRF 250, CRF 250 X and HM CRE 125, CRE-F 250 X, CRE-F 300 X

JT SPROCKETS offers this front sprocket for HONDA CR 125, CRF 250, CRF 250 X and HM CRE 125, CRE-F 250 X, CRE-F 300 X 2003-2019. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

Specifications and fitting tips

• Chain pitch: 520
• Material: Steel
• Front sprocket version: Self-cleaning
• Optimal lightweight design
• CNC machined for performance and lifespan

Choose the number of teeth from the list: fewer teeth on the front sprocket (or more on the rear) gives more acceleration, the opposite gives a longer gearing.

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : RFX FXRS 10 · RFX FXRS
• Drive chain : AFAM · RENTHAL 520
• Chain lube : LIQUI MOLY 400 ml · SCOTTOILER

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HM CRE 125 2007
HM CRE 125 2006
HM CRE 125 2005
HM CRE 125 2004
HM CRE 125 2003
HM CRE-F 250 X 2013
HM CRE-F 250 X 2012
HM CRE-F 250 X 2011
HM CRE-F 250 X 2010
HM CRE-F 250 X 2009
HM CRE-F 250 X 2008
HM CRE-F 250 X 2007
HM CRE-F 250 X 2006
HM CRE-F 250 X 2005
HM CRE-F 250 X 2004
HM CRE-F 300 X 2013
HM CRE-F 300 X 2012
HM CRE-F 300 X 2011
HM CRE-F 300 X 2010
HM CRE-F 300 X 2009
HM CRE-F 300 X 2008
HM CRE-F 300 X 2007
HM CRE-F 300 X 2006
HM CRE-F 300 X 2005
HM CRE-F 300 X 2004
HONDA CR 125 2007
HONDA CR 125 2006
HONDA CR 125 2005
HONDA CR 125 2004
HONDA CRF 250 2017
HONDA CRF 250 2016
HONDA CRF 250 2015
HONDA CRF 250 2014
HONDA CRF 250 2013
HONDA CRF 250 2012
HONDA CRF 250 2011
HONDA CRF 250 2010
HONDA CRF 250 2009
HONDA CRF 250 2008
HONDA CRF 250 2007
HONDA CRF 250 2006
HONDA CRF 250 2005
HONDA CRF 250 2004
HONDA CRF 250 X 2019
HONDA CRF 250 X 2018
HONDA CRF 250 X 2017
HONDA CRF 250 X 2016
HONDA CRF 250 X 2015
HONDA CRF 250 X 2014
HONDA CRF 250 X 2013
HONDA CRF 250 X 2012
HONDA CRF 250 X 2011
HONDA CRF 250 X 2010
HONDA CRF 250 X 2009
HONDA CRF 250 X 2008
HONDA CRF 250 X 2007
HONDA CRF 250 X 2006
HONDA CRF 250 X 2005
HONDA CRF 250 X 2004
