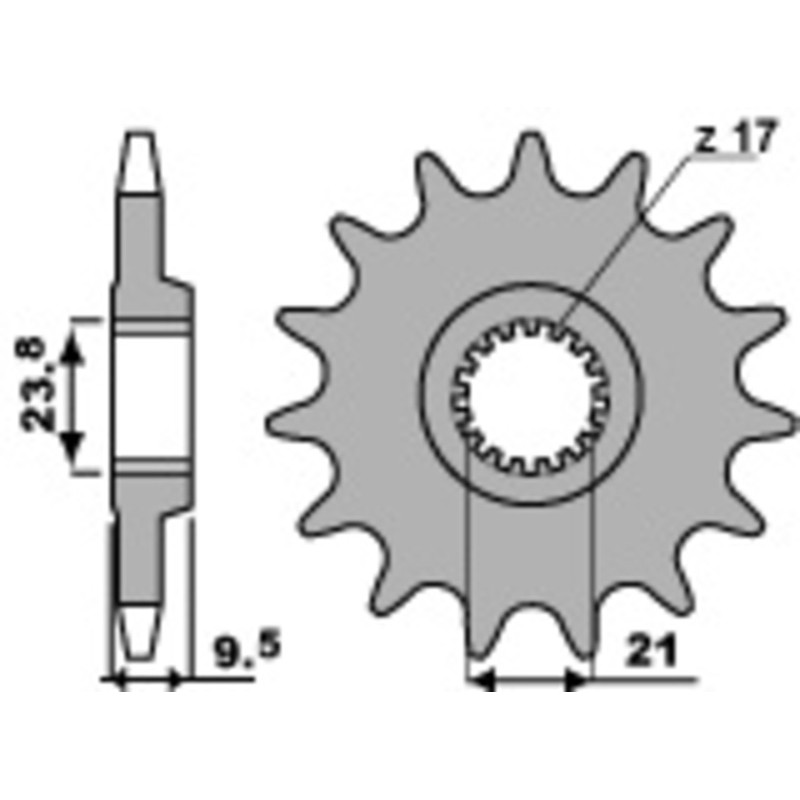

PBR steel front sprocket 520 pitch for HONDA CR 250, CRF 450, CRF 450 X and HM CRE 450, CRE-F 450 X, CREF 450 1988-2025

PBR offers this front sprocket for HONDA CR 250, CR 500, CRF 450, CRF 450 X, TRX 450 R SPORTRAX ELECTRIC START 2WD and HM CRE 250, CRE 450, CRE-F 450 X, CRE-F 500 X, CREF 450 1988-2025. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

Specifications and fitting tips

• Chain pitch: 520
• Material: Steel
• Front sprocket version: Standard
• High quality steel alloy 18NCD5
• High wear resistance

Choose the number of teeth from the list: fewer teeth on the front sprocket (or more on the rear) gives more acceleration, the opposite gives a longer gearing.

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : PBR · RENTHAL
• Drive chain : RENTHAL · RENTHAL 520
• Chain lube : LIQUI MOLY 400 ml · LIQUI MOLY 250 ml

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HM CRE 250 2008
HM CRE 250 2007
HM CRE 250 2006
HM CRE 250 2005
HM CRE 250 2004
HM CRE 250 2003
HM CRE 450 2014
HM CRE 450 2013
HM CRE 450 2012
HM CRE 450 2011
HM CRE 450 2010
HM CRE 450 2009
HM CRE 450 2008
HM CRE 450 2007
HM CRE 450 2006
HM CRE 450 2005
HM CRE 450 2004
HM CRE 450 2003
HM CRE-F 450 X 2014
HM CRE-F 450 X 2013
HM CRE-F 450 X 2012
HM CRE-F 450 X 2011
HM CRE-F 450 X 2010
HM CRE-F 450 X 2009
HM CRE-F 450 X 2008
HM CRE-F 450 X 2007
HM CRE-F 450 X 2006
HM CRE-F 450 X 2005
HM CRE-F 500 X 2014
HM CRE-F 500 X 2013
HM CRE-F 500 X 2012
HM CRE-F 500 X 2011
HM CRE-F 500 X 2010
HM CRE-F 500 X 2009
HM CRE-F 500 X 2008
HM CRE-F 500 X 2007
HM CRE-F 500 X 2006
HM CRE-F 500 X 2005
HM CREF 450 2014
HM CREF 450 2013
HM CREF 450 2012
HM CREF 450 2011
HM CREF 450 2010
HM CREF 450 2009
HM CREF 450 2007
HM CREF 450 2006
HM CREF 450 2005
HM CREF 450 2004
HM CREF 450 2002
HONDA CR 250 2007
HONDA CR 250 2006
HONDA CR 250 2005
HONDA CR 250 2004
HONDA CR 250 2003
HONDA CR 250 2002
HONDA CR 250 2001
HONDA CR 250 2000
HONDA CR 250 1999
HONDA CR 250 1998
HONDA CR 250 1997
HONDA CR 250 1996
HONDA CR 250 1995
HONDA CR 250 1994
HONDA CR 250 1993
HONDA CR 250 1992
HONDA CR 250 1991
HONDA CR 250 1990
HONDA CR 250 1989
HONDA CR 250 1988
HONDA CR 500 2001
HONDA CR 500 2000
HONDA CR 500 1999
HONDA CR 500 1998
HONDA CR 500 1997
HONDA CR 500 1996
HONDA CR 500 1995
HONDA CR 500 1994
HONDA CR 500 1993
HONDA CR 500 1992
HONDA CR 500 1991
HONDA CR 500 1990
HONDA CR 500 1989
HONDA CR 500 1988
HONDA CRF 250 2025
HONDA CRF 250 2024
HONDA CRF 250 2023
HONDA CRF 250 2022
HONDA CRF 250 RWE 2025
HONDA CRF 250 RX ENDURO 2025
HONDA CRF 250 RX ENDURO 2024
HONDA CRF 250 RX ENDURO 2023
HONDA CRF 450 2024
HONDA CRF 450 2023
HONDA CRF 450 2022
HONDA CRF 450 2021
HONDA CRF 450 2020
HONDA CRF 450 2019
HONDA CRF 450 2018
HONDA CRF 450 2017
HONDA CRF 450 2016
HONDA CRF 450 2015
HONDA CRF 450 2014
HONDA CRF 450 2013
HONDA CRF 450 2012
HONDA CRF 450 2011
HONDA CRF 450 2010
HONDA CRF 450 2009
HONDA CRF 450 2008
HONDA CRF 450 2007
HONDA CRF 450 2006
HONDA CRF 450 2005
HONDA CRF 450 2004
HONDA CRF 450 2003
HONDA CRF 450 2002
HONDA CRF 450 RX ENDURO 2024
HONDA CRF 450 RX ENDURO 2023
HONDA CRF 450 RX ENDURO 2022
HONDA CRF 450 RX ENDURO 2021
HONDA CRF 450 RX ENDURO 2020
HONDA CRF 450 RX ENDURO 2019
HONDA CRF 450 X 2024
HONDA CRF 450 X 2023
HONDA CRF 450 X 2022
HONDA CRF 450 X 2021
HONDA CRF 450 X 2020
HONDA CRF 450 X 2019
HONDA CRF 450 X 2018
HONDA CRF 450 X 2017
HONDA CRF 450 X 2016
HONDA CRF 450 X 2015
HONDA CRF 450 X 2014
HONDA CRF 450 X 2013
HONDA CRF 450 X 2012
HONDA CRF 450 X 2011
HONDA CRF 450 X 2010
HONDA CRF 450 X 2009
HONDA CRF 450 X 2008
HONDA CRF 450 X 2007
HONDA CRF 450 X 2006
HONDA CRF 450 X 2005
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2014
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2013
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2012
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2011
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2010
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2009
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2008
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2007
HONDA TRX 450 R SPORTRAX ELECTRIC START 2WD 2006
HONDA TRX 450 R SPORTRAX KICK START 2WD 2009
HONDA TRX 450 R SPORTRAX KICK START 2WD 2008
HONDA TRX 450 R SPORTRAX KICK START 2WD 2007
HONDA TRX 450 R SPORTRAX KICK START 2WD 2006
HONDA TRX 450 R SPORTRAX KICK START 2WD 2005
HONDA TRX 450 R SPORTRAX KICK START 2WD 2004
