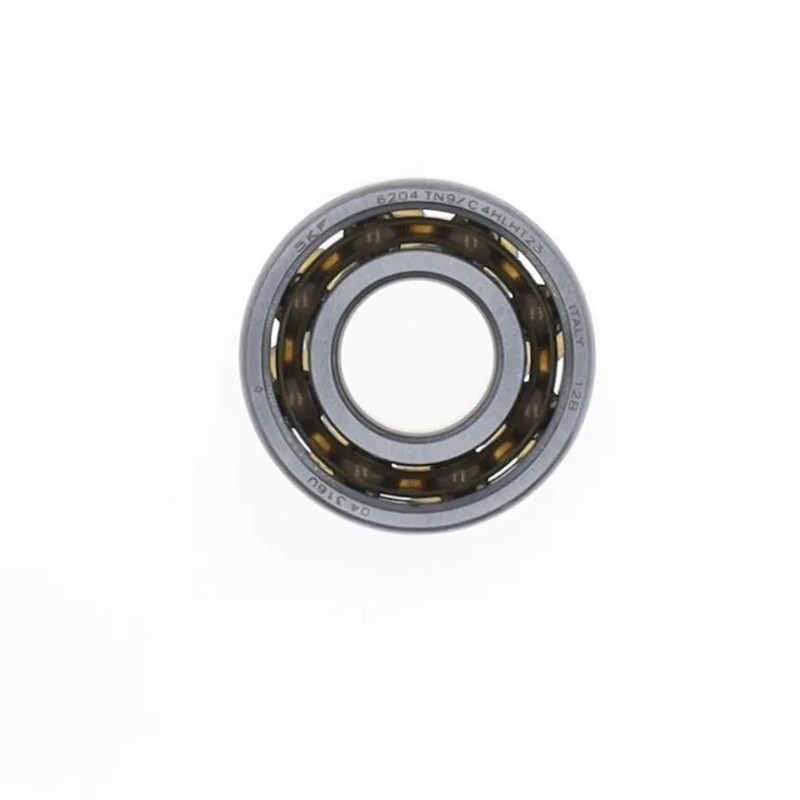

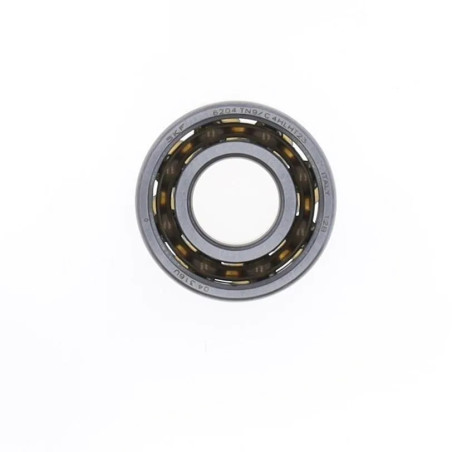

ATHENA wheel bearing 6204TN9 6204 – 20 × 47 × 14 mm for YAMAHA YZ 85 LW, YZ 85 SW and SUZUKI RM 80, RM 80 H

Check before ordering

• Bearing: 6204
• Dimensions (inner × outer × width): 20 × 47 × 14 mm

ATHENA offers this wheel bearing 6204TN9 for YAMAHA YZ 85 LW, YZ 85 SW and SUZUKI RM 80, RM 80 H, RM 80 X from 1983 to 2018. Each wheel spins on two bearings in the hub, separated by a spacer. Water and mud eventually damage them: play, rough spots, noise.

What is this bearing made of?

Races and balls in hardened chrome steel, 100Cr6 type, very hard and fatigue-resistant, protected by rubber seals.

• Double seal (2RS): a seal on each side, very well sealed against water and mud, essential off-road.
• Limit: slightly more drag than a metal-shielded bearing (ZZ), which spins more freely but seals far less well.
• Fitting: press or drift it in on the outer race, never hammer on the seal; keep the pressure washer away from the hubs.

Why choose ATHENA?

Athena, the Italian manufacturer founded in 1973, is an original-equipment supplier to manufacturers such as KTM and Ducati: the same standards for your replacement parts.

When should you replace the bearings?

Check the wheels for play at every wash with the wheel off the ground: a failing bearing can lock the wheel. Pressure washing forces water in and speeds up wear.

Specifications and fitting tips

• Outside diameter: 47 mm
• Inside diameter: 20 mm
• Model: 6204TN9
• Style: Double seal, Unsealed
• Electric Motor Quality (EMQ): tight tolerances for a quiet, vibration-free bearing
• Sourced from leading bearing manufacturers

Cross-Mania tip: Always replace the bearings of a wheel together and check the spacer.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
SUZUKI RM 80 1995
SUZUKI RM 80 1994
SUZUKI RM 80 1993
SUZUKI RM 80 1992
SUZUKI RM 80 1991
SUZUKI RM 80 1990
SUZUKI RM 80 1989
SUZUKI RM 80 1988
SUZUKI RM 80 1987
SUZUKI RM 80 1986
SUZUKI RM 80 1985
SUZUKI RM 80 1984
SUZUKI RM 80 1983
SUZUKI RM 80 H 1985
SUZUKI RM 80 H 1984
SUZUKI RM 80 H 1983
SUZUKI RM 80 X 1995
SUZUKI RM 80 X 1994
SUZUKI RM 80 X 1993
SUZUKI RM 80 X 1992
SUZUKI RM 80 X 1991
SUZUKI RM 80 X 1990
SUZUKI RM 80 X 1989
SUZUKI RM 80 X 1988
SUZUKI RM 80 X 1987
SUZUKI RM 80 X 1986
SUZUKI RM 80 X 1985
SUZUKI RM 80 X 1984
SUZUKI RM 80 X 1983
YAMAHA YZ 85 LW 2018
YAMAHA YZ 85 LW 2017
YAMAHA YZ 85 LW 2016
YAMAHA YZ 85 LW 2015
YAMAHA YZ 85 LW 2014
YAMAHA YZ 85 LW 2013
YAMAHA YZ 85 LW 2012
YAMAHA YZ 85 LW 2011
YAMAHA YZ 85 LW 2010
YAMAHA YZ 85 LW 2009
YAMAHA YZ 85 LW 2008
YAMAHA YZ 85 LW 2007
YAMAHA YZ 85 LW 2006
YAMAHA YZ 85 LW 2005
YAMAHA YZ 85 LW 2004
YAMAHA YZ 85 LW 2003
YAMAHA YZ 85 LW 2002
YAMAHA YZ 85 SW 2015
YAMAHA YZ 85 SW 2014
YAMAHA YZ 85 SW 2013
YAMAHA YZ 85 SW 2012
YAMAHA YZ 85 SW 2011
YAMAHA YZ 85 SW 2010
YAMAHA YZ 85 SW 2009
YAMAHA YZ 85 SW 2008
YAMAHA YZ 85 SW 2007
YAMAHA YZ 85 SW 2006
YAMAHA YZ 85 SW 2005
YAMAHA YZ 85 SW 2004
YAMAHA YZ 85 SW 2003
YAMAHA YZ 85 SW 2002
