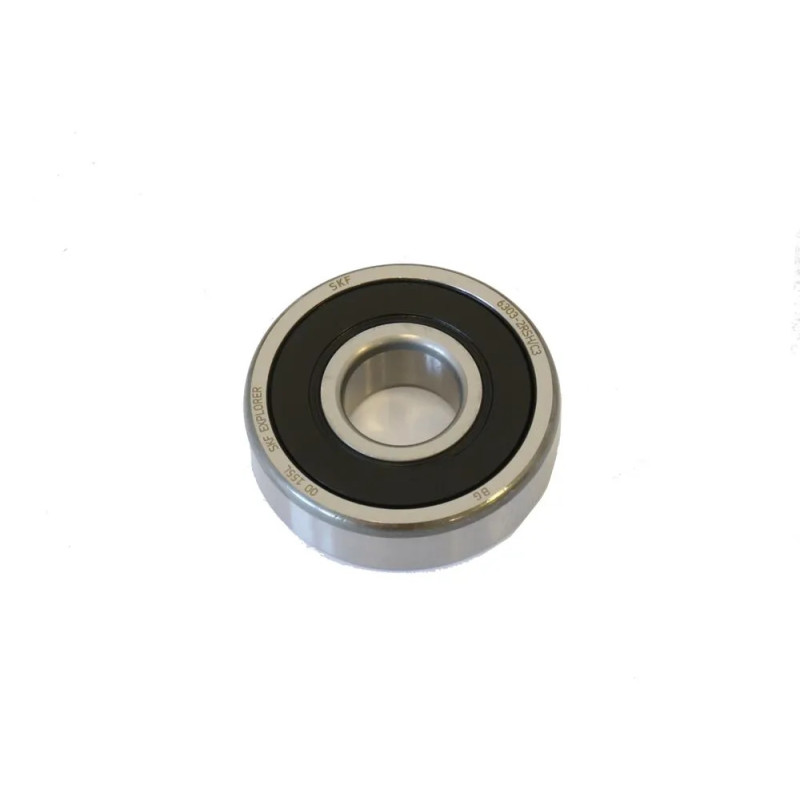

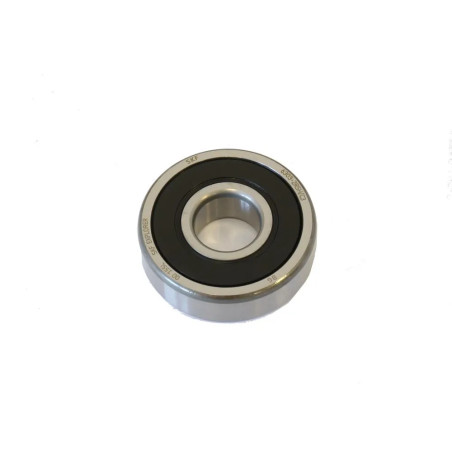

ATHENA wheel bearing 6203 for HONDA XL 250 S, CAGIVA ELEFANT 750 E and KAWASAKI KE 250 from 1971 to 2015

ATHENA offers this wheel bearing 6203 for HONDA XL 250 S, CAGIVA ELEFANT 750 E and KAWASAKI KE 250 from 1971 to 2015. Each wheel spins on two bearings in the hub, separated by a spacer. Water and mud eventually damage them: play, rough spots, noise.

What is this bearing made of?

Races and balls in hardened chrome steel, 100Cr6 type, very hard and fatigue-resistant, protected by rubber seals.

• Double seal (2RS): a seal on each side, very well sealed against water and mud, essential off-road.
• Limit: slightly more drag than a metal-shielded bearing (ZZ), which spins more freely but seals far less well.
• Fitting: press or drift it in on the outer race, never hammer on the seal; keep the pressure washer away from the hubs.

Why choose ATHENA?

Athena, the Italian manufacturer founded in 1973, is an original-equipment supplier to manufacturers such as KTM and Ducati: the same standards for your replacement parts.

When should you replace the bearings?

Check the wheels for play at every wash with the wheel off the ground: a failing bearing can lock the wheel. Pressure washing forces water in and speeds up wear.

Specifications and fitting tips

• Outside diameter: 47 mm
• Inside diameter: 17 mm
• Model: 6203
• Style: Double seal
• Electric Motor Quality (EMQ): tight tolerances for a quiet, vibration-free bearing
• Sourced from leading bearing manufacturers

Cross-Mania tip: Always replace the bearings of a wheel together and check the spacer.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
CAGIVA ELEFANT 750 E 1996
CAGIVA ELEFANT 750 E 1995
CAGIVA ELEFANT 750 E 1994
CAGIVA ELEFANT 900 E 1995
CAGIVA ELEFANT 900 I.E. 1991
CAGIVA ELEFANT 900 I.E. GT 1991
HONDA CRF 150 F 2015
HONDA CRF 150 F 2014
HONDA CRF 150 F 2013
HONDA CRF 150 F 2012
HONDA CRF 150 F 2009
HONDA CRF 150 F 2008
HONDA CRF 150 F 2007
HONDA XL 250 S 1986
HONDA XL 250 S 1985
HONDA XL 250 S 1984
HONDA XL 250 S 1983
HONDA XL 250 S 1982
HONDA XL 250 S 1981
HONDA XL 250 S 1980
HONDA XL 250 S 1979
HONDA XL 250 S 1978
HONDA XR 400 R 1999
HONDA XR 400 R 1998
HONDA XR 400 R 1997
HONDA XR 400 R 1996
HONDA XRV 750 1991
HONDA XRV 750 1990
KAWASAKI F8 250 1972
KAWASAKI F8 250 1971
KAWASAKI KE 250 1979
KAWASAKI KE 250 1978
KAWASAKI KE 250 1977
