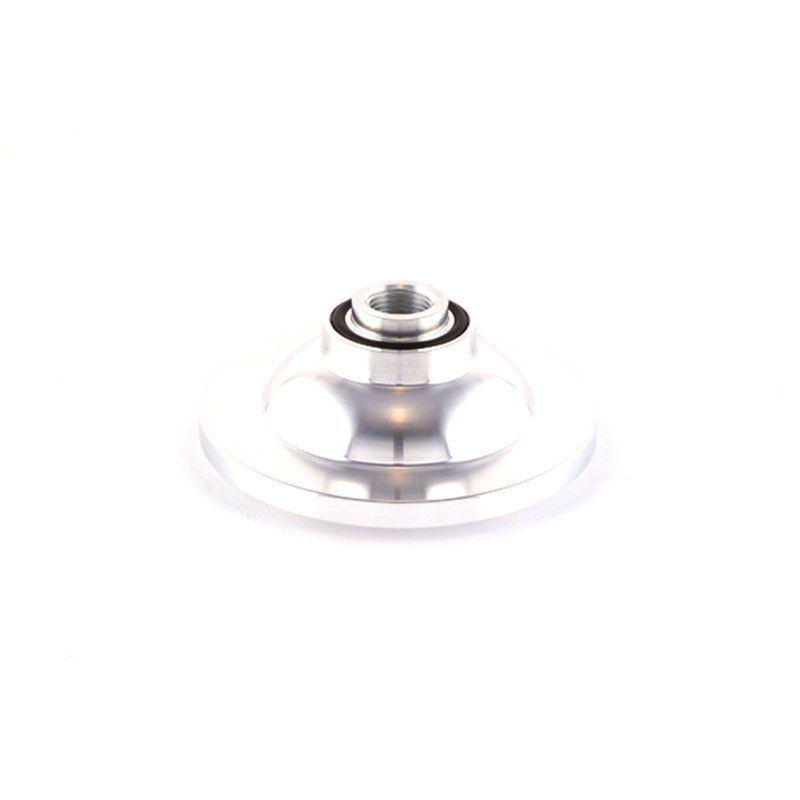

VHM Cylinder Head Insert for GAS GAS EC 300 2000-2017

The VHM AE32123-E cylinder head insert is designed for GAS GAS EC 300 from 2000 to 2017. The insert forms the combustion chamber of the VHM head. Its volume sets the engine's compression: a small volume gives more bottom end and mid-range, a larger volume keeps the engine smoother and longer-revving.

Key features

• Each version shows its three key figures: chamber volume, piston height and squish.
• Change the compression without machining the head, to suit the fuel and the terrain.
• Part number engraved on the insert.
• Fits VHM cylinder heads only.

Specifications

• Brand: VHM
• Manufacturer part number: AE32123-E
• Version: Version E (28 cc)
• Engine: 2-stroke

When to change the insert?

• Switch to a different fuel (98 or race fuel with a higher octane rating).
• Engine knocking (pinking) or running hot: compression too high for the fuel.
• You want more torque on tight or sandy terrain.

Change the insert when you change fuel or type of riding, or if the engine pinks. The insert's three dimensions (volume, piston height, squish) must match your engine.

Fitting tips

1. The insert is changed with the cylinder head removed.
2. Check that the actual height of your piston at top dead centre matches the figure given for the insert.
3. Replace the VHM head O-rings every time you take it apart.
4. Check the squish with solder wire before riding.
5. Tighten the head to the recommended torque, in a criss-cross pattern and in several stages, then fit a new spark plug.

Why VHM?

Founded in 1995, VHM specialises in racing engine parts for motocross, road racing and karting. The brand started out with cylinder heads featuring interchangeable combustion chambers, which became its speciality, and then developed crankshafts, connecting rods and gasket kits.

Spare parts and items to plan

• VHM head O-rings : VHM SK33000.VITON · VHM SK33000
• Spark plug : NGK
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

Will it fit my original cylinder head?
No: VHM inserts only fit VHM cylinder heads.

Which version should I choose?
Choose according to your engine and fuel. : 28.00 cc, piston height -1.05 mm, squish 1.70 mm.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 300 2017
GAS GAS EC 300 2016
GAS GAS EC 300 2015
GAS GAS EC 300 2014
GAS GAS EC 300 2013
GAS GAS EC 300 2012
GAS GAS EC 300 2011
GAS GAS EC 300 2010
GAS GAS EC 300 2009
GAS GAS EC 300 2008
GAS GAS EC 300 2007
GAS GAS EC 300 2006
GAS GAS EC 300 2005
GAS GAS EC 300 2004
GAS GAS EC 300 2003
GAS GAS EC 300 2002
GAS GAS EC 300 2001
GAS GAS EC 300 2000
