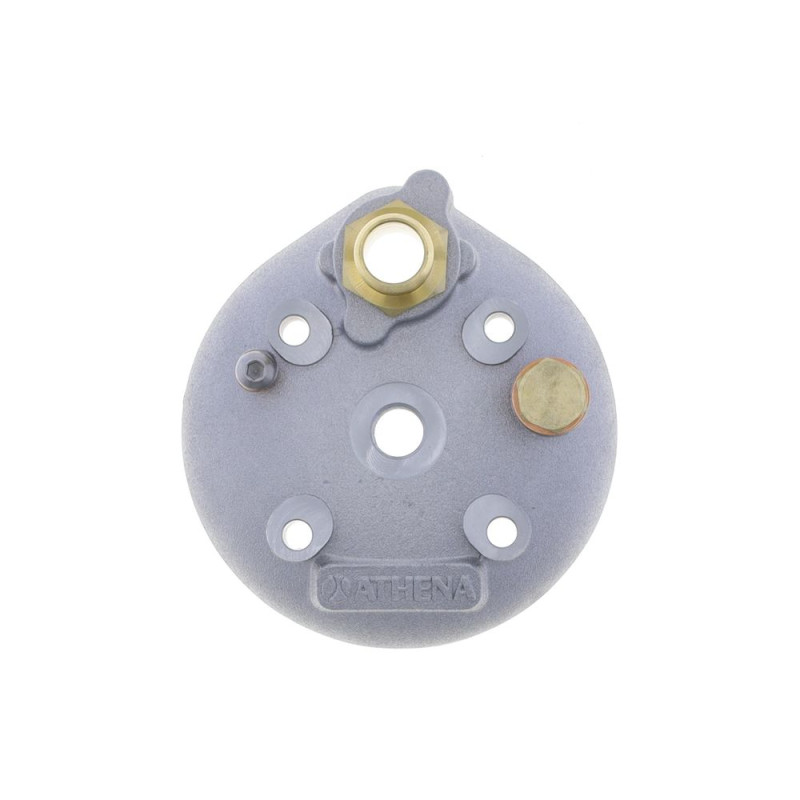

ATHENA Cylinder Head for ATHENA cylinder kit ref. S410130308007 for RIEJU, BETA, APRILIA and HM 1992-2024

The ATHENA S410130308007 cylinder head is designed for APRILIA MX 50, PEGASO 50, RX 50, RIEJU MRT 50, RR 50, BETA RR 50 and HM CRE 50 from 1992 to 2024. The cylinder head closes off the top of the cylinder and forms the combustion chamber. On a two-piece VHM head, the chamber is a machined insert that can be swapped in a few minutes to adapt the engine's compression.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410130308007
• EAN code: 8051757162789
• Weight: 400 g
• Engine: 2-stroke

Who is it for?

• Original head damaged by pinking (detonation), cracked or warped.
• You want to match the compression to the fuel, the terrain or a tuned engine.
• You're after a smoother or snappier engine without changing the cylinder.

Good to know

The insert is chosen to suit your engine and your fuel: a smaller chamber volume raises compression, which may call for a higher-octane fuel. Always check the squish when fitting.

Fitting tips

1. Clean the cylinder mating face without scratching it.
2. Fit new O-rings and grease them lightly so they stay in place.
3. Check the squish (gap between piston and head) with solder wire before riding.
4. Tighten the head in a criss-cross pattern, in several stages, to the recommended torque.
5. Fit a new spark plug and refill the coolant.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• ATHENA cylinder kit : ATHENA P400130100005 · ATHENA P400130100007
• Piston : ATHENA
• Piston rings : ATHENA
• Top end gasket kit : ATHENA
• Exhaust power valve parts : ATHENA
• Spark plug : NGK 3961 · NGK 5722
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Frequently asked questions

Can I change the compression later?
Yes: just swap the VHM insert, without removing the cylinder.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
APRILIA MX 50 2004
APRILIA MX 50 2003
APRILIA MX 50 2002
APRILIA PEGASO 50 1997
APRILIA PEGASO 50 1996
APRILIA PEGASO 50 1995
APRILIA PEGASO 50 1994
APRILIA PEGASO 50 1993
APRILIA PEGASO 50 1992
APRILIA RX 50 2004
APRILIA RX 50 2003
APRILIA RX 50 2002
APRILIA RX 50 2001
APRILIA RX 50 2000
APRILIA RX 50 1999
APRILIA RX 50 1998
APRILIA RX 50 1997
APRILIA RX 50 1996
APRILIA RX 50 1995
BETA RR 50 2024
BETA RR 50 2023
BETA RR 50 2022
BETA RR 50 2021
BETA RR 50 2020
BETA RR 50 2019
BETA RR 50 2018
BETA RR 50 2017
BETA RR 50 2016
BETA RR 50 2015
BETA RR 50 2014
BETA RR 50 2013
BETA RR 50 2012
BETA RR 50 2011
BETA RR 50 2010
BETA RR 50 2009
BETA RR 50 2008
BETA RR 50 2007
BETA RR 50 2006
BETA RR 50 2005
BETA RR 50 2004
BETA RR 50 2003
BETA RR 50 2002
BETA RR 50 2001
BETA RR 50 2000
BETA RR 50 1999
BETA RR 50 1998
HM CRE 50 2017
HM CRE 50 2016
HM CRE 50 2015
HM CRE 50 2014
HM CRE 50 2013
HM CRE 50 2012
HM CRE 50 2011
HM CRE 50 2010
HM CRE 50 2009
HM CRE 50 2008
HM CRE 50 2007
HM CRE 50 2006
HM CRE 50 2005
HM CRE 50 2004
HM CRE 50 2003
HM CRE 50 2002
HM CRE 50 2001
HM CRE 50 2000
HM CRE 50 1999
RIEJU MRT 50 2024
RIEJU MRT 50 2023
RIEJU MRT 50 2022
RIEJU MRT 50 2021
RIEJU MRT 50 2020
RIEJU MRT 50 2019
RIEJU MRT 50 2018
RIEJU MRT 50 2017
RIEJU MRT 50 2016
RIEJU MRT 50 2015
RIEJU MRT 50 2014
RIEJU MRT 50 2013
RIEJU MRT 50 2012
RIEJU MRT 50 2011
RIEJU MRT 50 2010
RIEJU MRT 50 2009
RIEJU RR 50 2008
RIEJU RR 50 2007
RIEJU RR 50 2006
RIEJU RR 50 2005
RIEJU RR 50 2004
RIEJU RR 50 2003
RIEJU RR 50 2002
RIEJU RR 50 2001
RIEJU RR 50 2000
RIEJU RR 50 1999
RIEJU RR 50 1998
RIEJU RR 50 1997
RIEJU RR 50 1996
RIEJU RR 50 1995
RIEJU RR 50 1994
RIEJU RR 50 1993
