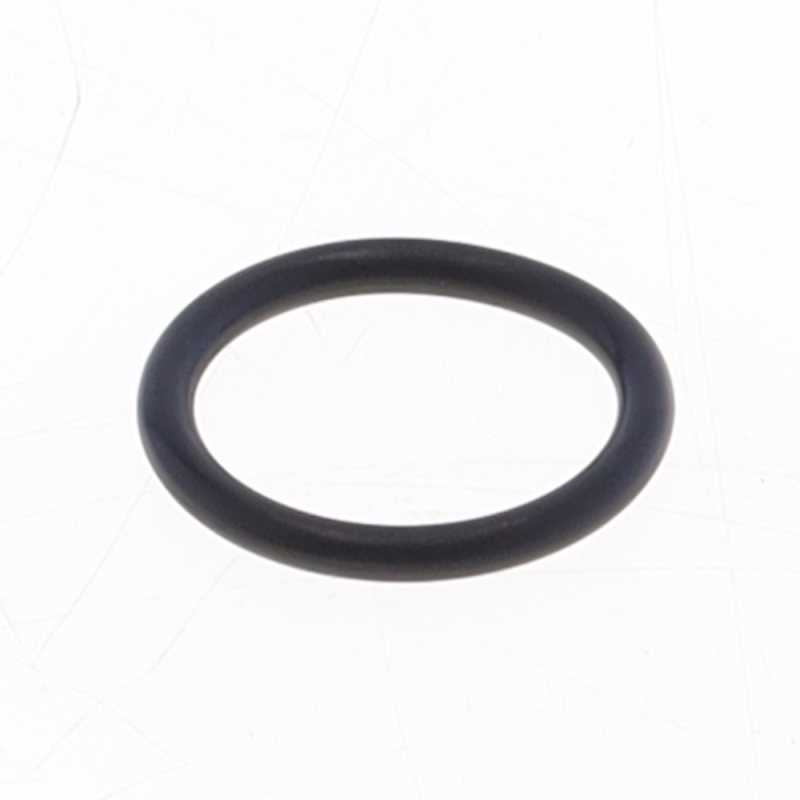

ATHENA Intake Gasket for YAMAHA WRF 250, YZF 250 and FANTIC XEF 250 2019-2025

The ATHENA M752004300004 intake gasket is designed for YAMAHA WRF 250, YZF 250 and FANTIC XEF 250 from 2019 to 2025. The intake gasket seals between the intake manifold, the reed valve block or the throttle body and the engine. A leak here lets in unmetered air: the engine runs lean, the idle becomes unstable and the engine runs hot.

Specifications

• Brand: ATHENA
• Manufacturer part number: M752004300004
• EAN code: 8051757124046
• Engine: 4-stroke

When to replace it?

• Unstable idle or idle that creeps up on its own, hanging revs.
• Engine running hot or pinking: mixture too lean.
• Gasket crushed or split on removal.

Every time the intake manifold or reed valve block is removed, and as soon as an air leak is suspected.

Fitting tips

1. Clean the gasket faces without scratching them.
2. Fit the gasket dry and properly centred.
3. Tighten the screws in a criss-cross pattern, gradually, to the manufacturer's torque.
4. Check the air filter and the intake boot: a crack lets in dust and unmetered air.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Air filter : ATHENA · TWIN AIR
• Carburettor repair kit : ALL BALLS · BIHR
• Spark plug : NGK

Frequently asked questions

How do I find an air leak?
With the engine idling, spray a little brake cleaner around the intake: if the revs change, air is getting in at that spot.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
FANTIC XEF 250 2022
FANTIC XEF 250 2021
YAMAHA WRF 250 2025
YAMAHA WRF 250 2024
YAMAHA WRF 250 2023
YAMAHA WRF 250 2022
YAMAHA WRF 250 2021
YAMAHA WRF 250 2020
YAMAHA YZF 250 2025
YAMAHA YZF 250 2024
YAMAHA YZF 250 2023
YAMAHA YZF 250 2022
YAMAHA YZF 250 2021
YAMAHA YZF 250 2020
YAMAHA YZF 250 2019
