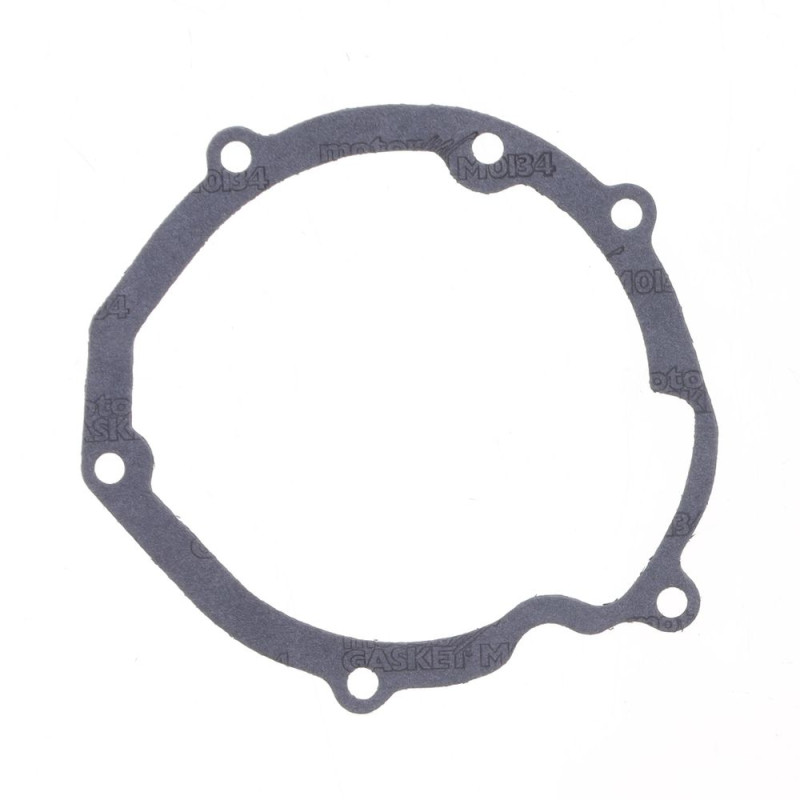

ATHENA Ignition Cover Gasket for YAMAHA YZ 125 1994-2004

The ATHENA S410485017060 ignition cover gasket is designed for YAMAHA YZ 125 from 1994 to 2004. The ignition cover gasket seals between the crankcase and the cover that protects the ignition (flywheel and stator). Depending on the engine, it holds the oil in or keeps water and dust out.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410485017060
• EAN code: 8051757102136
• Weight: 50 g
• Engine: 2-stroke

When to replace it?

• Oil seeping around the edge of the ignition cover.
• Water or mud inside the cover after washing.
• Gasket torn or stuck on removal.

Every time the ignition cover comes off: stator check, replacement of an ignition-side crankshaft oil seal or bottom end rebuild.

Fitting tips

1. Clean both gasket faces without scratching them.
2. Fit the gasket dry; a dab of grease can hold it in place during reassembly.
3. Tighten the screws in a criss-cross pattern, without forcing, to the manufacturer's torque.
4. On an engine where the ignition runs in oil, top up the oil level after reassembly.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Complete engine gasket kit : MOOSE 811641MSE · MOOSE 808641MSE
• Clutch cover gasket : PROX · BOYESEN
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Frequently asked questions

Can I reuse the old gasket?
No: a paper or fibre gasket tears or stays crushed when removed. If you're opening several covers, a complete engine gasket kit often works out cheaper.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA YZ 125 2004
YAMAHA YZ 125 2003
YAMAHA YZ 125 2002
YAMAHA YZ 125 2001
YAMAHA YZ 125 2000
YAMAHA YZ 125 1999
YAMAHA YZ 125 1998
YAMAHA YZ 125 1997
YAMAHA YZ 125 1996
YAMAHA YZ 125 1995
YAMAHA YZ 125 1994
