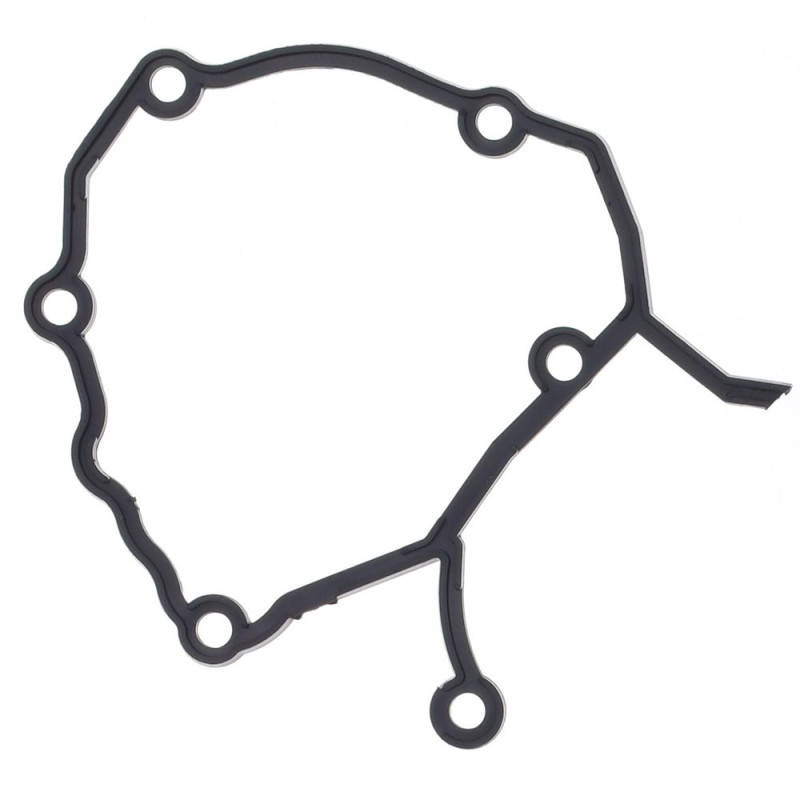

ATHENA Ignition Cover Gasket for YAMAHA DT 125, WR 200 1993-2006

On YAMAHA DT 125, WR 200 from 1993 to 2006, the ATHENA S410485017029 ignition cover gasket fits in place of the original part. On the left-hand side of the engine, the ignition cover protects the flywheel and the stator. Its gasket keeps it sealed: a crushed or torn gasket lets oil, water or dust through.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410485017029
• EAN code: 8051757225231
• Weight: 80 g
• Engine: 2-stroke

When to replace it?

• Oil seeping around the edge of the ignition cover.
• Water or mud inside the cover after washing.
• Gasket torn or stuck on removal.

Every time the ignition cover comes off: stator check, replacement of an ignition-side crankshaft oil seal or bottom end rebuild.

Fitting tips

1. Clean both gasket faces without scratching them.
2. Fit the gasket dry; a dab of grease can hold it in place during reassembly.
3. Tighten the screws in a criss-cross pattern, without forcing, to the manufacturer's torque.
4. On an engine where the ignition runs in oil, top up the oil level after reassembly.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Complete engine gasket kit : ATHENA P400485850101 · ATHENA P400485850102
• Clutch cover gasket : CENTAURO · ATHENA
• 2-stroke oil : LIQUI MOLY 1 L · MOTUL 1 L

Frequently asked questions

Can I reuse the old gasket?
No: a paper or fibre gasket tears or stays crushed when removed. If you're opening several covers, a complete engine gasket kit often works out cheaper.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA DT 125 2006
YAMAHA DT 125 2005
YAMAHA DT 125 2004
YAMAHA DT 125 2003
YAMAHA DT 125 2002
YAMAHA DT 125 2001
YAMAHA DT 125 2000
YAMAHA DT 125 1999
YAMAHA DT 125 1998
YAMAHA DT 125 1997
YAMAHA DT 125 1996
YAMAHA DT 125 1995
YAMAHA DT 125 1994
YAMAHA DT 125 1993
YAMAHA WR 200 1993
