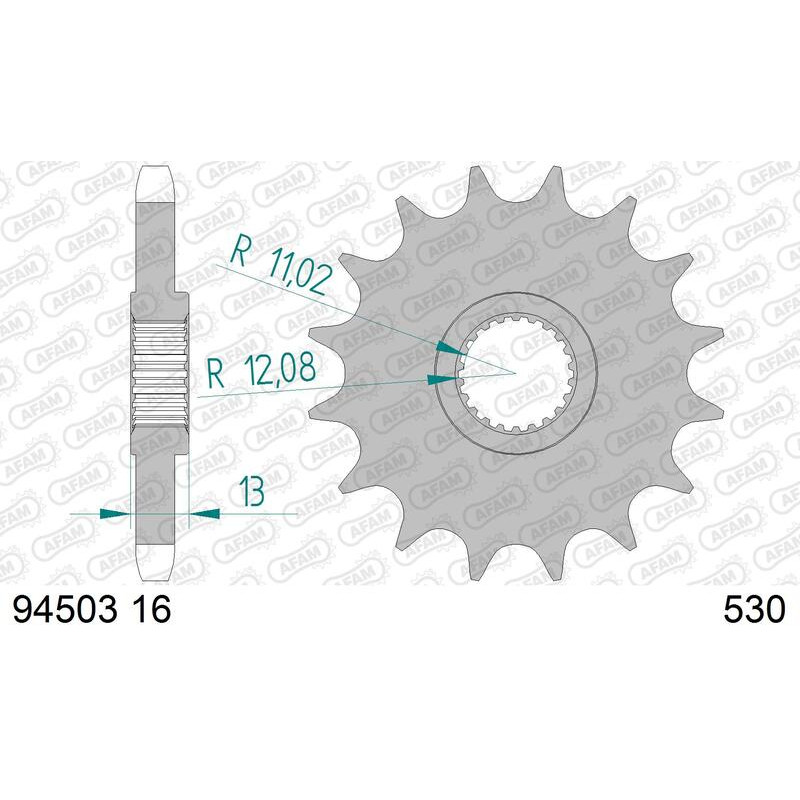

AFAM steel front sprocket 16T, 530 pitch for CAN-AM DS 650 2000-2007

AFAM offers this front sprocket for CAN-AM DS 650 2000-2007. The front sprocket sits on the gearbox output shaft and passes the engine’s power to the chain, which turns the rear sprocket and the rear wheel.

Why replace the front sprocket?

The benefits:

• An inexpensive part that protects a new chain and rear sprocket.
• Made of steel to withstand much heavier wear than the rear sprocket.
• Changing the number of teeth is the simplest, cheapest way to alter the gearing.

When should you replace the front sprocket on your CAN-AM DS 650?

Dished or hooked teeth: replace it straight away, otherwise it will ruin a new chain within hours.

Specifications and fitting tips

• Chain pitch: 530
• Material: Steel
• Front sprocket teeth count: 16
• Front sprocket version: Standard
• Standard steel front-sprocket
• Top of range manufacturing and quality
• Manufacturer part number: 94503-16

Cross-Mania tip: Replace the front sprocket together with the chain and rear sprocket, renew the sprocket nut or circlip and check the output shaft seal.

Also needed with this part

• Rear sprocket : see the selection
• Drive chain : see the selection
• Chain lube : LIQUI MOLY 400 ml · SCOTTOILER

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
CAN-AM DS 650 2007
CAN-AM DS 650 2006
CAN-AM DS 650 2005
CAN-AM DS 650 2004
CAN-AM DS 650 2003
CAN-AM DS 650 2002
CAN-AM DS 650 2001
CAN-AM DS 650 2000
