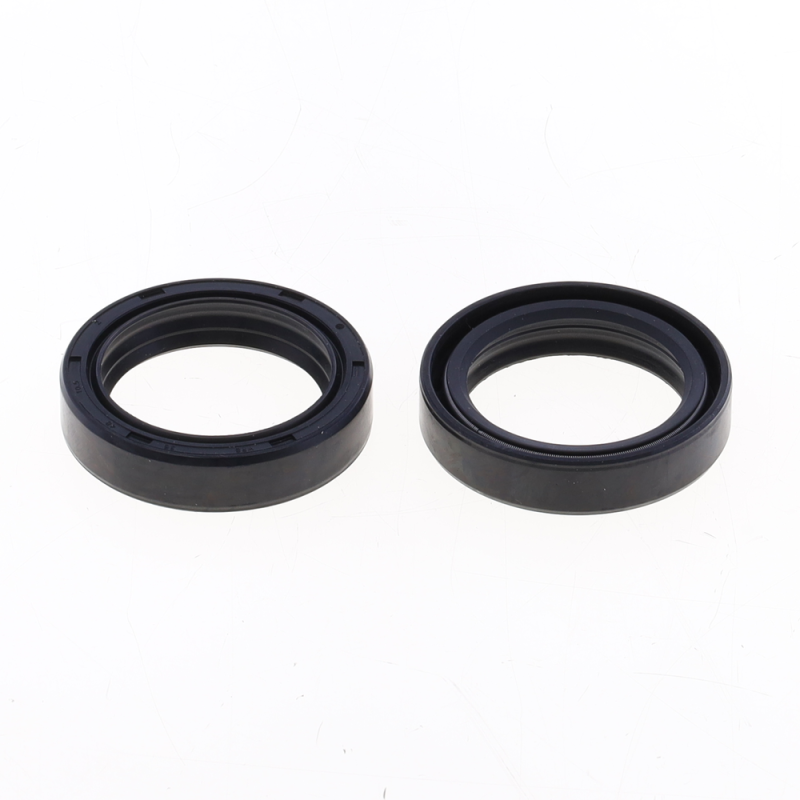

ATHENA Fork Oil Seal Kit 36x48x10.5 mm for KAWASAKI, YAMAHA, HONDA and SUZUKI 1974-1999

The ATHENA 36x48x10.5 mm P40FORK455036 fork oil seal kit is designed for YAMAHA DT 250, IT 175, IT 250, IT 400, IT 425, TT 500, TY 350, XT 250, XT 500, YZ 100, YZ 125, KAWASAKI KDX 125, KDX 175, KDX 250, KL 250, KLR 250, KLX 250, KX 125, KX 250, SUZUKI DR 370, DR 400, RM 250 and HONDA XR 200 from 1974 to 1999. Fitted at the top of the fork leg, under the dust seal, the oil seal keeps the fork sealed. A leak lowers the oil level, the damping changes and oil can run onto the brake disc.

Specifications

• Brand: ATHENA
• Manufacturer part number: P40FORK455036
• EAN code: 8055681307803
• Weight: 40 g

When to replace it?

• Film of oil on the inner tube after a few fork strokes.
• Oil traces on the fork leg, the caliper or the brake disc.
• Fork that becomes softer on one side.

Before replacing a leaking seal, clean under its lip: a trapped grain of sand is sometimes enough to cause the leak. If it still leaks, replace the seals on both legs. Measure your seal (inside diameter, outside diameter and height) or check the original part number: the size is in the name.

Fitting tips

1. Drain and disassemble the fork leg following the manual, then remove the dust seal, the circlip and the old seal.
2. Check the fork bushings and the condition of the inner tube: a scratch or a rust spot will cut a new seal.
3. Protect the end of the tube (plastic bag), oil the lip and drive the seal in straight with a seal driver of the right diameter.
4. Refit the circlip and a new dust seal, then reset the fork oil level.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Fork dust seals : KYB · ATHENA
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork bushings : ATHENA · KYB

Frequently asked questions

Do I have to change both seals?
Yes: they have the same age and the same mileage. Replace both oil seals and, ideally, both dust seals.

Why is my new seal leaking?
Most often because of a scratched or pitted tube, a lip turned back during installation, or worn bushings that let the tube develop play.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA XR 200 1999
HONDA XR 200 1998
HONDA XR 200 1997
HONDA XR 200 1996
HONDA XR 200 1995
HONDA XR 200 1994
HONDA XR 200 1993
HONDA XR 200 1992
HONDA XR 200 1991
HONDA XR 200 1990
HONDA XR 200 1989
HONDA XR 200 1988
HONDA XR 200 1987
HONDA XR 200 1986
HONDA XR 200 1985
HONDA XR 200 1984
KAWASAKI KDX 125 1982
KAWASAKI KDX 125 1981
KAWASAKI KDX 175 1982
KAWASAKI KDX 175 1981
KAWASAKI KDX 175 1980
KAWASAKI KDX 250 1979
KAWASAKI KL 250 1996
KAWASAKI KL 250 1995
KAWASAKI KL 250 1994
KAWASAKI KL 250 1993
KAWASAKI KL 250 1992
KAWASAKI KL 250 1991
KAWASAKI KL 250 1990
KAWASAKI KL 250 1989
KAWASAKI KL 250 1988
KAWASAKI KL 250 1987
KAWASAKI KL 250 1986
KAWASAKI KL 250 1985
KAWASAKI KL 250 1984
KAWASAKI KL 250 1983
KAWASAKI KL 250 1982
KAWASAKI KL 250 1981
KAWASAKI KL 250 1980
KAWASAKI KLR 250 1994
KAWASAKI KLR 250 1993
KAWASAKI KLR 250 1992
KAWASAKI KLR 250 1991
KAWASAKI KLR 250 1990
KAWASAKI KLR 250 1989
KAWASAKI KLR 250 1988
KAWASAKI KLR 250 1987
KAWASAKI KLR 250 1986
KAWASAKI KLR 250 1985
KAWASAKI KLX 250 1983
KAWASAKI KLX 250 1982
KAWASAKI KLX 250 1981
KAWASAKI KLX 250 1980
KAWASAKI KLX 250 1979
KAWASAKI KLX 250 1978
KAWASAKI KLX 250 1977
KAWASAKI KLX 250 1976
KAWASAKI KLX 250 1975
KAWASAKI KLX 250 1974
KAWASAKI KX 125 1979
KAWASAKI KX 125 1978
KAWASAKI KX 250 1978
KAWASAKI KX 250 1977
KAWASAKI KX 250 1976
SUZUKI DR 370 1979
SUZUKI DR 370 1978
SUZUKI DR 400 1981
SUZUKI DR 400 1980
SUZUKI RM 250 1978
SUZUKI RM 250 1977
SUZUKI RM 250 1976
YAMAHA DT 250 1982
YAMAHA DT 250 1981
YAMAHA DT 250 1980
YAMAHA DT 250 1979
YAMAHA IT 175 1981
YAMAHA IT 175 1980
YAMAHA IT 175 1979
YAMAHA IT 175 1978
YAMAHA IT 175 1977
YAMAHA IT 250 1980
YAMAHA IT 250 1979
YAMAHA IT 250 1978
YAMAHA IT 250 1977
YAMAHA IT 400 1979
YAMAHA IT 400 1978
YAMAHA IT 400 1977
YAMAHA IT 400 1976
YAMAHA IT 425 1980
YAMAHA TT 500 1981
YAMAHA TT 500 1980
YAMAHA TT 500 1979
YAMAHA TT 500 1978
YAMAHA TT 500 1977
YAMAHA TT 500 1976
YAMAHA TY 350 1986
YAMAHA TY 350 1985
YAMAHA XT 250 1984
YAMAHA XT 500 1988
YAMAHA XT 500 1987
YAMAHA XT 500 1986
YAMAHA XT 500 1985
YAMAHA XT 500 1984
YAMAHA XT 500 1983
YAMAHA XT 500 1982
YAMAHA XT 500 1981
YAMAHA XT 500 1980
YAMAHA XT 500 1979
YAMAHA XT 500 1978
YAMAHA XT 500 1977
YAMAHA XT 500 1976
YAMAHA YZ 100 1983
YAMAHA YZ 100 1982
YAMAHA YZ 125 1980
YAMAHA YZ 125 1979
YAMAHA YZ 125 1978
YAMAHA YZ 125 1977
