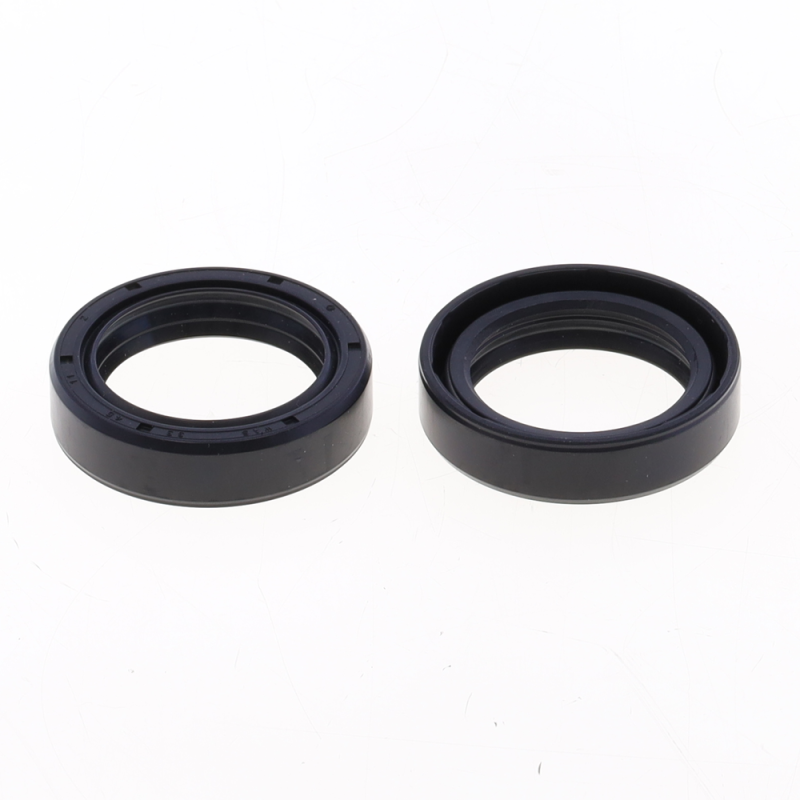

ATHENA Fork Oil Seal Kit 33x45x11 mm for YAMAHA TW 200, YZ 80 and KAWASAKI KX 80 1983-2015

The ATHENA 33x45x11 mm P40FORK455024 fork oil seal kit is designed for YAMAHA TW 200, YZ 80 and KAWASAKI KX 80 from 1983 to 2015. The fork oil seal keeps the oil inside the fork leg while letting the inner tube slide. It is a wear item: dust, mud and impacts on the tubes eventually damage its lip, and the fork leaks.

Specifications

• Brand: ATHENA
• Manufacturer part number: P40FORK455024
• EAN code: 8055681307773
• Weight: 50 g

When to replace it?

• Film of oil on the inner tube after a few fork strokes.
• Oil traces on the fork leg, the caliper or the brake disc.
• Fork that becomes softer on one side.

Before replacing a leaking seal, clean under its lip: a trapped grain of sand is sometimes enough to cause the leak. If it still leaks, replace the seals on both legs. Measure your seal (inside diameter, outside diameter and height) or check the original part number: the size is in the name.

Fitting tips

1. Drain and disassemble the fork leg following the manual, then remove the dust seal, the circlip and the old seal.
2. Check the fork bushings and the condition of the inner tube: a scratch or a rust spot will cut a new seal.
3. Protect the end of the tube (plastic bag), oil the lip and drive the seal in straight with a seal driver of the right diameter.
4. Refit the circlip and a new dust seal, then reset the fork oil level.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Fork dust seals : see the selection
• Fork oil : LIQUI MOLY 10W 500 ml
• Fork bushings : ATHENA · INNTECK

Frequently asked questions

Do I have to change both seals?
Yes: they have the same age and the same mileage. Replace both oil seals and, ideally, both dust seals.

Why is my new seal leaking?
Most often because of a scratched or pitted tube, a lip turned back during installation, or worn bushings that let the tube develop play.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KX 80 1985
KAWASAKI KX 80 1984
YAMAHA TW 200 2015
YAMAHA TW 200 2014
YAMAHA TW 200 2013
YAMAHA TW 200 2012
YAMAHA TW 200 2011
YAMAHA TW 200 2010
YAMAHA TW 200 2009
YAMAHA TW 200 2008
YAMAHA TW 200 2007
YAMAHA TW 200 2006
YAMAHA TW 200 2005
YAMAHA TW 200 2004
YAMAHA TW 200 2003
YAMAHA TW 200 2002
YAMAHA TW 200 2001
YAMAHA TW 200 2000
YAMAHA TW 200 1999
YAMAHA TW 200 1998
YAMAHA TW 200 1997
YAMAHA TW 200 1996
YAMAHA TW 200 1995
YAMAHA TW 200 1994
YAMAHA TW 200 1993
YAMAHA TW 200 1992
YAMAHA TW 200 1991
YAMAHA TW 200 1990
YAMAHA TW 200 1989
YAMAHA TW 200 1988
YAMAHA TW 200 1987
YAMAHA YZ 80 1992
YAMAHA YZ 80 1991
YAMAHA YZ 80 1990
YAMAHA YZ 80 1989
YAMAHA YZ 80 1988
YAMAHA YZ 80 1987
YAMAHA YZ 80 1986
YAMAHA YZ 80 1985
YAMAHA YZ 80 1984
YAMAHA YZ 80 1983
