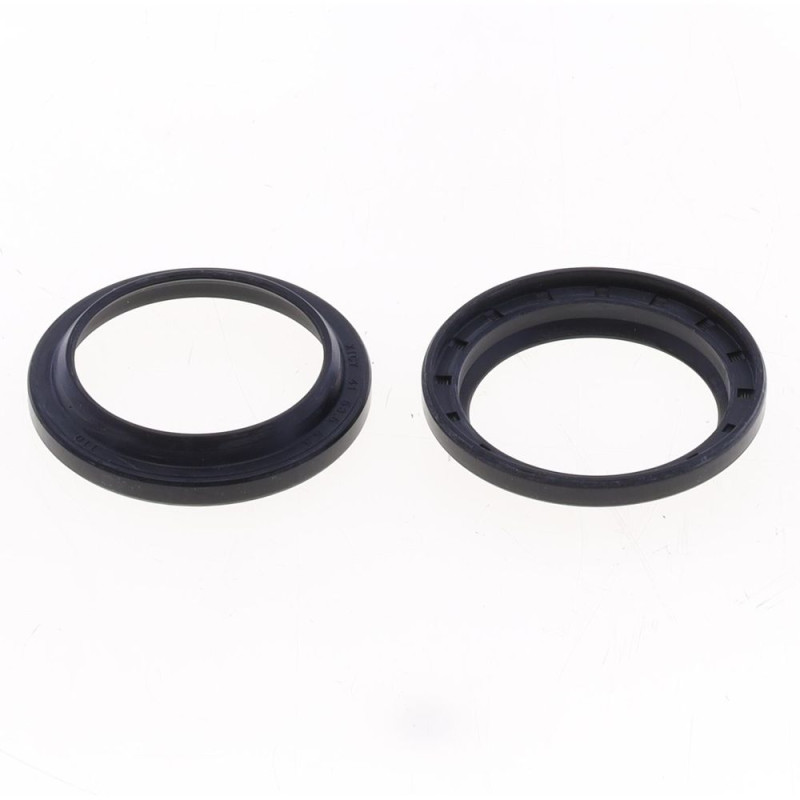

ATHENA Fork Dust Seal Kit 41x53.5x5.3/9.5 mm for KAWASAKI, YAMAHA, HONDA, SUZUKI and APRILIA 1986-2016

The ATHENA 41x53.5x5.3/9.5 mm P40FORK455226 fork dust seal kit is designed for KAWASAKI KDX 200, KLE 500, KLR 650, KX 125, KX 250, KX 500, YAMAHA DT 125, WR 200, XT 600, YZ 125, YZ 250, SUZUKI DR 650, RM 125, RM 250, RMX 250, HONDA XR 250 and APRILIA RX 50 from 1986 to 2016. The dust seal (or wiper) fits above the oil seal, at the top of the fork leg. On every compression stroke it scrapes the mud and dust off the inner tube, which protects the oil seal.

Specifications

• Brand: ATHENA
• Manufacturer part number: P40FORK455226
• EAN code: 8056216247687
• Weight: 30 g

When to replace it?

• Dust seal cracked, hardened or lifting out of the fork leg.
• Mud or sand under the dust seal: the oil seal is at risk.
• Oil seals being replaced: the dust seals are changed at the same time.

Replace the dust seals whenever you replace the oil seals, and as soon as they are cracked. Check the size (in the name) or the original part number.

Fitting tips

1. Lift out the old dust seal with a plastic tool, without scratching the inner tube.
2. Clean the groove in the fork leg and the tube.
3. Grease the lip lightly and press the new one in flat, by hand.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Fork oil seals : SKF OSB-41K · SKF OSB-43K
• Fork oil : LIQUI MOLY 10W 500 ml

Frequently asked questions

Is a new dust seal enough to stop a leak?
No: the leak comes from the oil seal. The dust seal only protects it from dirt.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
APRILIA RX 50 2016
APRILIA RX 50 2015
APRILIA RX 50 2014
APRILIA RX 50 2013
APRILIA RX 50 2012
APRILIA RX 50 2011
APRILIA RX 50 2010
APRILIA RX 50 2009
HONDA XR 250 1998
HONDA XR 250 1997
HONDA XR 250 1996
HONDA XR 250 1995
HONDA XR 250 1994
HONDA XR 250 1993
HONDA XR 250 1992
HONDA XR 250 1991
HONDA XR 250 1990
HONDA XR 250 1989
HONDA XR 250 1988
HONDA XR 250 1987
HONDA XR 250 1986
KAWASAKI KDX 200 1994
KAWASAKI KDX 200 1993
KAWASAKI KLE 500 2002
KAWASAKI KLE 500 2001
KAWASAKI KLE 500 2000
KAWASAKI KLE 500 1999
KAWASAKI KLE 500 1998
KAWASAKI KLE 500 1997
KAWASAKI KLE 500 1996
KAWASAKI KLE 500 1995
KAWASAKI KLE 500 1994
KAWASAKI KLE 500 1993
KAWASAKI KLE 500 1992
KAWASAKI KLE 500 1991
KAWASAKI KLR 650 2012
KAWASAKI KLR 650 2011
KAWASAKI KLR 650 2010
KAWASAKI KLR 650 2009
KAWASAKI KLR 650 2008
KAWASAKI KLR 650 2007
KAWASAKI KLR 650 2006
KAWASAKI KLR 650 2005
KAWASAKI KLR 650 2004
KAWASAKI KLR 650 2003
KAWASAKI KLR 650 2002
KAWASAKI KLR 650 2001
KAWASAKI KLR 650 2000
KAWASAKI KLR 650 1999
KAWASAKI KLR 650 1998
KAWASAKI KLR 650 1997
KAWASAKI KLR 650 1996
KAWASAKI KLR 650 1995
KAWASAKI KLR 650 1994
KAWASAKI KLR 650 1993
KAWASAKI KLR 650 1992
KAWASAKI KLR 650 1991
KAWASAKI KLR 650 1990
KAWASAKI KLR 650 1989
KAWASAKI KLR 650 1988
KAWASAKI KLR 650 1987
KAWASAKI KX 125 1990
KAWASAKI KX 250 1990
KAWASAKI KX 500 1990
SUZUKI DR 650 1996
SUZUKI DR 650 1995
SUZUKI DR 650 1994
SUZUKI DR 650 1993
SUZUKI DR 650 1992
SUZUKI DR 650 1991
SUZUKI DR 650 1990
SUZUKI RM 125 1990
SUZUKI RM 250 1990
SUZUKI RM 250 1989
SUZUKI RMX 250 1990
SUZUKI RMX 250 1989
YAMAHA DT 125 1988
YAMAHA WR 200 1992
YAMAHA XT 600 2002
YAMAHA XT 600 2001
YAMAHA XT 600 2000
YAMAHA XT 600 1999
YAMAHA XT 600 1998
YAMAHA XT 600 1997
YAMAHA XT 600 1996
YAMAHA XT 600 1995
YAMAHA YZ 125 1990
YAMAHA YZ 125 1989
YAMAHA YZ 250 1990
YAMAHA YZ 250 1989
