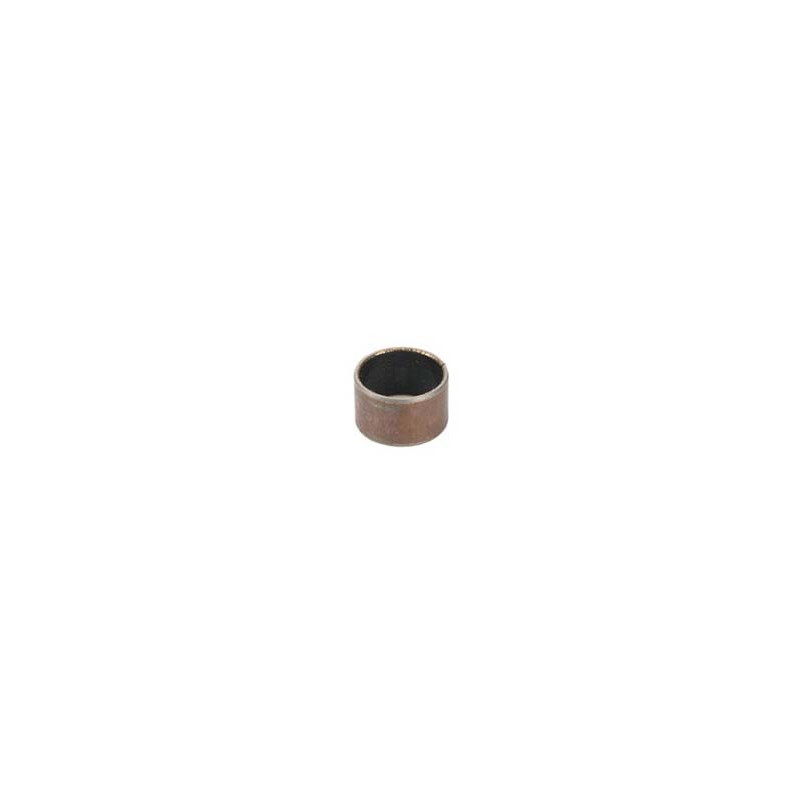

SHOWA Fork Cartridge Guide Bushing for piston rod Ø12 mm for SUZUKI, HONDA and KAWASAKI 1999-2007

The SHOWA SHO-3002000 fork cartridge guide bushing is designed for SUZUKI RM 125, RM 250, RMZ 250, RMZ 450, HONDA CR 250, CRF 250, CRF 450 and KAWASAKI KXF 250, KXF 450 from 1999 to 2007. Guide bushings reduce friction and keep the cartridge's moving parts properly in line. Replacing them during a service prevents premature seal wear.

Specifications

• Brand: SHOWA
• Manufacturer part number: SHO-3002000

When to replace it?

• Fork damping that changes during a ride.
• Oil getting where it shouldn't, cartridge oil level dropping.
• Seal hardened, marked or distorted when you remove it.

Replace this part at every full cartridge service, as set out in the fork manual. Check the diameter and dimensions listed: they must match your cartridge.

Fitting tips

1. Servicing a cartridge takes method and the right tools: follow the fork manual or leave it to a suspension specialist.
2. Strip the cartridge, clean all the parts and check the condition of the rod (scratches, pitting).
3. Fit the new part, oiled, without twisting it or damaging it on the threads.
4. Reassemble with fresh fork oil and carefully bleed the air out of the cartridge.

Why SHOWA?

Showa was founded in 1938 in Gyoda, Japan, as Showa Aircraft Precision Works. After the war, the company put its aeronautical know-how to work on motorcycle suspension, notably for Honda, and the brand now belongs to the Astemo group, formed by a merger completed in January 2021.

Spare parts and items to plan

• Fork oil : LIQUI MOLY 10W 500 ml
• Fork oil seals : ATHENA P40FORK455216 · ATHENA P40FORK455076

Frequently asked questions

Should I service both fork legs?
Yes: service both sides together so they behave identically.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CR 250 2007
HONDA CR 250 2006
HONDA CR 250 2005
HONDA CR 250 2004
HONDA CR 250 2003
HONDA CR 250 2002
HONDA CRF 250 2007
HONDA CRF 250 2006
HONDA CRF 250 2005
HONDA CRF 250 2004
HONDA CRF 450 2007
HONDA CRF 450 2006
HONDA CRF 450 2005
HONDA CRF 450 2004
HONDA CRF 450 2003
HONDA CRF 450 2002
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
KAWASAKI KXF 450 2005
KAWASAKI KXF 450 2004
SUZUKI RM 125 2007
SUZUKI RM 125 2006
SUZUKI RM 125 2005
SUZUKI RM 125 2004
SUZUKI RM 125 2003
SUZUKI RM 125 2002
SUZUKI RM 125 2001
SUZUKI RM 125 2000
SUZUKI RM 125 1999
SUZUKI RM 250 2007
SUZUKI RM 250 2006
SUZUKI RM 250 2005
SUZUKI RM 250 2004
SUZUKI RM 250 2003
SUZUKI RM 250 2002
SUZUKI RM 250 2001
SUZUKI RM 250 2000
SUZUKI RM 250 1999
SUZUKI RMZ 250 2007
SUZUKI RMZ 450 2007
SUZUKI RMZ 450 2006
SUZUKI RMZ 450 2005
