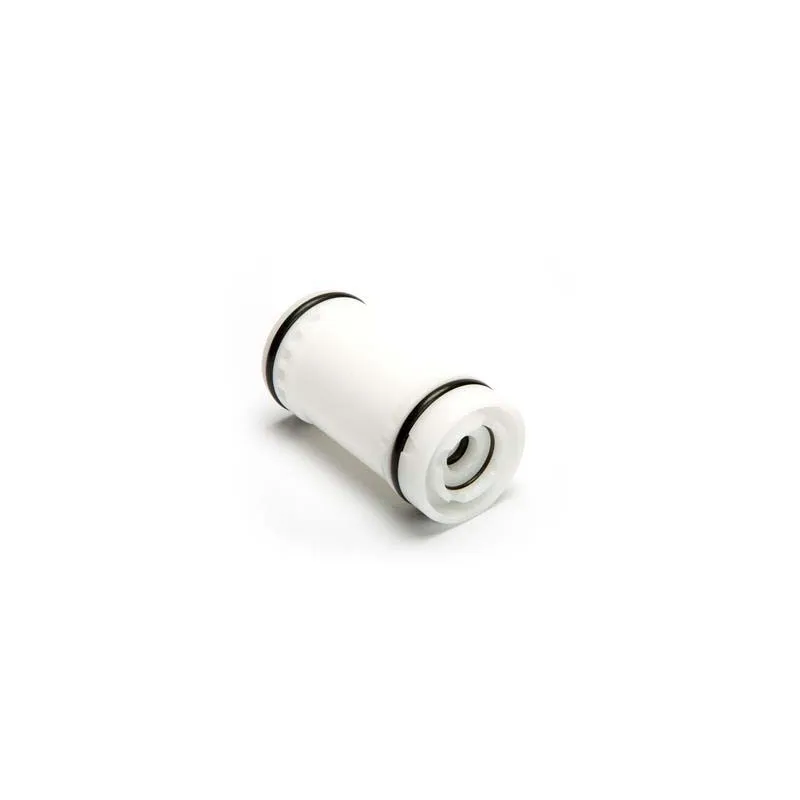

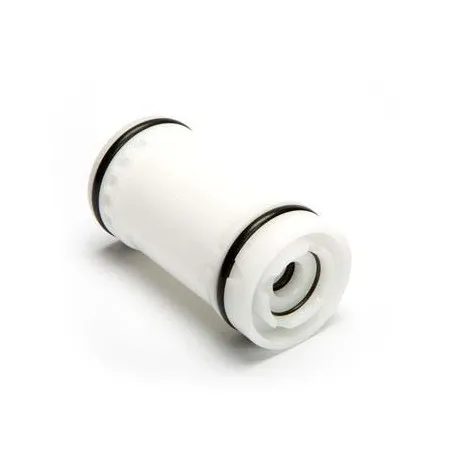

KYB Complete Fork Free Piston for HONDA CRF 450, HUSQVARNA TC 250 and KAWASAKI KXF 450 2011-2013

On HONDA CRF 450, KAWASAKI KXF 450 and HUSQVARNA TC 250 from 2011 to 2013, the KYB KYB-3001007 complete fork free piston fits in place of the original part. The free piston works with every movement of the fork. Once scored or tired, it lets oil past and the damping becomes inconsistent: a new complete piston puts the cartridge back in shape.

Specifications

• Brand: KYB
• Manufacturer part number: KYB-3001007

When to replace it?

• Fork damping that changes during a ride.
• Oil getting where it shouldn't, cartridge oil level dropping.
• Seal hardened, marked or distorted when you remove it.

Replace this part at every full cartridge service, as set out in the fork manual. Check the diameter and dimensions listed: they must match your cartridge.

Fitting tips

1. Servicing a cartridge takes method and the right tools: follow the fork manual or leave it to a suspension specialist.
2. Strip the cartridge, clean all the parts and check the condition of the rod (scratches, pitting).
3. Fit the new part, oiled, without twisting it or damaging it on the threads.
4. Reassemble with fresh fork oil and carefully bleed the air out of the cartridge.

Why KYB?

KYB, long known as Kayaba, was born in Japan in November 1919, when 21-year-old Shiro Kayaba opened his research centre. Now one of the world's leading hydraulics specialists, with more than 15,000 employees, the brand describes its Gifu North plant, opened in 1968, as the largest shock absorber factory in the world.

Spare parts and items to plan

• Fork oil : LIQUI MOLY 10W 500 ml
• Fork oil seals : ATHENA P40FORK455216 · ATHENA P40FORK455141

Frequently asked questions

Should I service both fork legs?
Yes: service both sides together so they behave identically.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA CRF 450 2012
HONDA CRF 450 2011
HUSQVARNA TC 250 2013
HUSQVARNA TC 250 2012
KAWASAKI KXF 450 2012
KAWASAKI KXF 450 2011
