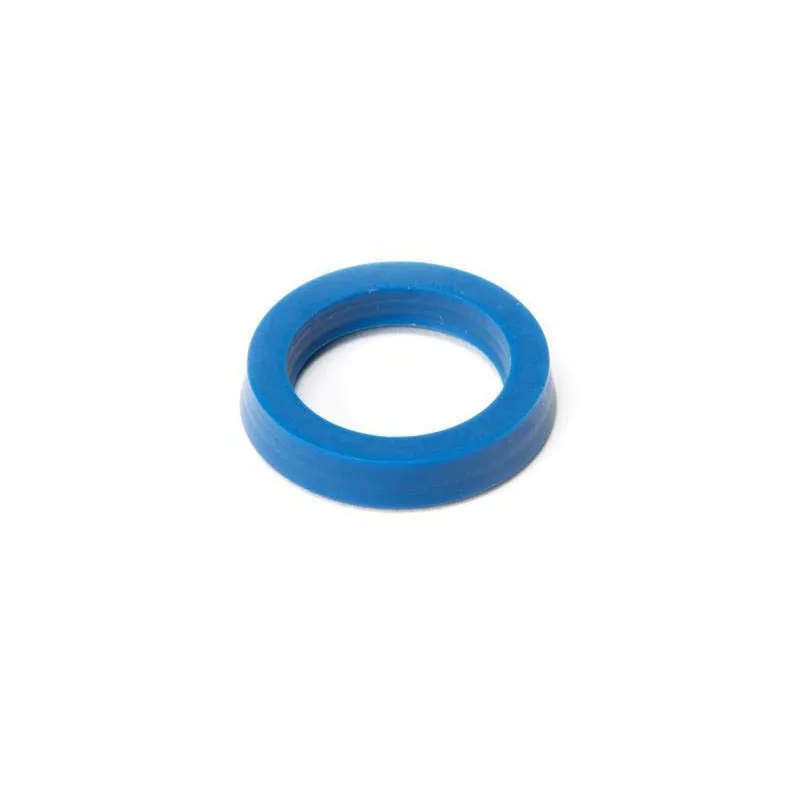

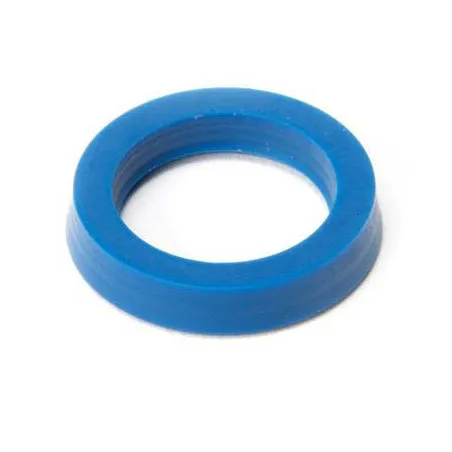

KYB Fork Cartridge Rod Seal blue (Ø12.5 mm rod) for YAMAHA, SHERCO, SUZUKI, KAWASAKI, GAS GAS and HONDA 2010-2027

The KYB bleu (tige Ø12.5 mm) KYB-3001001 fork cartridge rod seal is designed for SHERCO SE 125, SE 250, SE 300, SEF 250, SEF 300, SEF 450, SEF 500, YAMAHA WRF 250, WRF 450, YZ 125, YZ 250, YZF 250, YZF 450, GAS GAS EC 250, EC 300, HONDA CRF 450, KAWASAKI KXF 450 and SUZUKI RMZ 250 from 2010 to 2027. A wear part in the cartridge, the rod seal wears out with the hours. Replacing it when you service the fork brings back consistent damping.

Specifications

• Brand: KYB
• Manufacturer part number: KYB-3001001
• Size: outer Ø 18 mm, inner Ø 12.5 mm, height 3 mm

When to replace it?

• Fork damping that changes during a ride.
• Oil getting where it shouldn't, cartridge oil level dropping.
• Seal hardened, marked or distorted when you remove it.

Replace this part at every full cartridge service, as set out in the fork manual. Check the diameter and dimensions listed: they must match your cartridge.

Fitting tips

1. Servicing a cartridge takes method and the right tools: follow the fork manual or leave it to a suspension specialist.
2. Strip the cartridge, clean all the parts and check the condition of the rod (scratches, pitting).
3. Fit the new part, oiled, without twisting it or damaging it on the threads.
4. Reassemble with fresh fork oil and carefully bleed the air out of the cartridge.

Why KYB?

KYB, long known as Kayaba, was born in Japan in November 1919, when 21-year-old Shiro Kayaba opened his research centre. Now one of the world's leading hydraulics specialists, with more than 15,000 employees, the brand describes its Gifu North plant, opened in 1968, as the largest shock absorber factory in the world.

Spare parts and items to plan

• Fork oil : LIQUI MOLY 10W 500 ml
• Fork oil seals : ATHENA · SKF

Frequently asked questions

Should I service both fork legs?
Yes: service both sides together so they behave identically.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS EC 250 2019
GAS GAS EC 250 2018
GAS GAS EC 300 2019
GAS GAS EC 300 2018
HONDA CRF 450 2014
HONDA CRF 450 2013
HONDA CRF 450 2012
HONDA CRF 450 2011
KAWASAKI KXF 450 2014
KAWASAKI KXF 450 2013
KAWASAKI KXF 450 2012
KAWASAKI KXF 450 2011
KAWASAKI KXF 450 2010
SHERCO SE 125 2023
SHERCO SE 125 2022
SHERCO SE 125 2021
SHERCO SE 125 2020
SHERCO SE 125 2019
SHERCO SE 250 2023
SHERCO SE 250 2022
SHERCO SE 250 2021
SHERCO SE 250 2020
SHERCO SE 250 2019
SHERCO SE 300 2023
SHERCO SE 300 2022
SHERCO SE 300 2021
SHERCO SE 300 2020
SHERCO SE 300 2019
SHERCO SEF 250 2023
SHERCO SEF 250 2022
SHERCO SEF 250 2021
SHERCO SEF 250 2020
SHERCO SEF 250 2019
SHERCO SEF 300 2023
SHERCO SEF 300 2022
SHERCO SEF 300 2021
SHERCO SEF 300 2020
SHERCO SEF 300 2019
SHERCO SEF 450 2023
SHERCO SEF 450 2022
SHERCO SEF 450 2021
SHERCO SEF 450 2020
SHERCO SEF 450 2019
SHERCO SEF 500 2023
SHERCO SEF 500 2022
SHERCO SEF 500 2021
SHERCO SEF 500 2020
SHERCO SEF 500 2019
SUZUKI RMZ 250 2027
SUZUKI RMZ 250 2026
SUZUKI RMZ 250 2025
SUZUKI RMZ 250 2024
SUZUKI RMZ 250 2023
SUZUKI RMZ 250 2022
SUZUKI RMZ 250 2021
SUZUKI RMZ 250 2020
SUZUKI RMZ 250 2019
YAMAHA WRF 250 2023
YAMAHA WRF 250 2022
YAMAHA WRF 250 2021
YAMAHA WRF 250 2020
YAMAHA WRF 250 2019
YAMAHA WRF 250 2018
YAMAHA WRF 250 2017
YAMAHA WRF 250 2016
YAMAHA WRF 250 2015
YAMAHA WRF 450 2023
YAMAHA WRF 450 2022
YAMAHA WRF 450 2021
YAMAHA WRF 450 2020
YAMAHA WRF 450 2019
YAMAHA WRF 450 2018
YAMAHA WRF 450 2017
YAMAHA WRF 450 2016
YAMAHA WRF 450 2015
YAMAHA WRF 450 2014
YAMAHA WRF 450 2013
YAMAHA WRF 450 2012
YAMAHA YZ 125 2026
YAMAHA YZ 125 2025
YAMAHA YZ 125 2024
YAMAHA YZ 125 2023
YAMAHA YZ 125 2022
YAMAHA YZ 125 2021
YAMAHA YZ 125 2020
YAMAHA YZ 125 2019
YAMAHA YZ 125 2018
YAMAHA YZ 125 2017
YAMAHA YZ 125 2016
YAMAHA YZ 125 2015
YAMAHA YZ 250 2026
YAMAHA YZ 250 2025
YAMAHA YZ 250 2024
YAMAHA YZ 250 2023
YAMAHA YZ 250 2022
YAMAHA YZ 250 2021
YAMAHA YZ 250 2020
YAMAHA YZ 250 2019
YAMAHA YZ 250 2018
YAMAHA YZ 250 2017
YAMAHA YZ 250 2016
YAMAHA YZ 250 2015
YAMAHA YZF 250 2024
YAMAHA YZF 250 2023
YAMAHA YZF 250 2022
YAMAHA YZF 250 2021
YAMAHA YZF 250 2020
YAMAHA YZF 250 2019
YAMAHA YZF 250 2018
YAMAHA YZF 250 2017
YAMAHA YZF 250 2016
YAMAHA YZF 250 2015
YAMAHA YZF 250 2014
YAMAHA YZF 250 2013
YAMAHA YZF 250 2012
YAMAHA YZF 250 2011
YAMAHA YZF 250 2010
YAMAHA YZF 450 2025
YAMAHA YZF 450 2024
YAMAHA YZF 450 2023
YAMAHA YZF 450 2022
YAMAHA YZF 450 2021
YAMAHA YZF 450 2020
YAMAHA YZF 450 2019
YAMAHA YZF 450 2018
YAMAHA YZF 450 2017
YAMAHA YZF 450 2016
YAMAHA YZF 450 2015
YAMAHA YZF 450 2014
YAMAHA YZF 450 2013
YAMAHA YZF 450 2012
YAMAHA YZF 450 2011
YAMAHA YZF 450 2010
