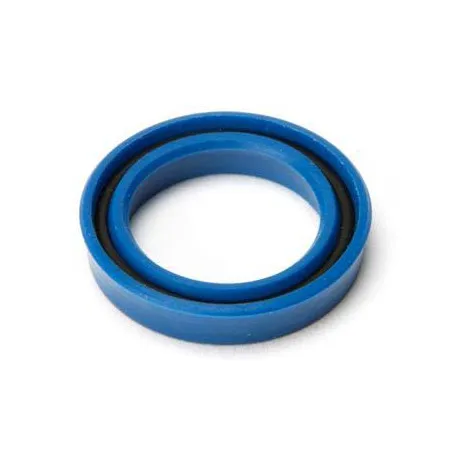

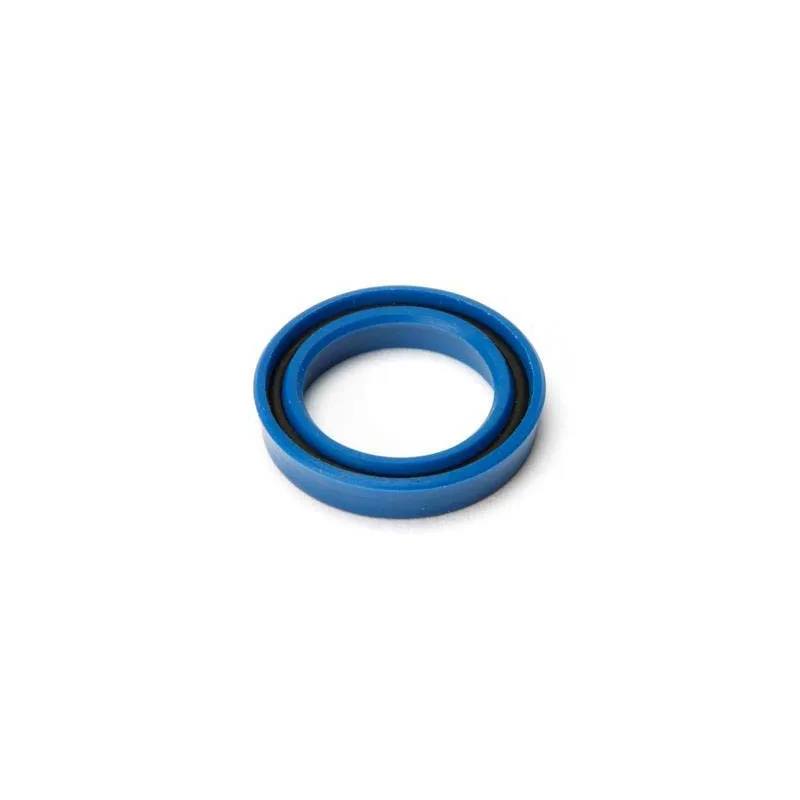

KYB Fork Cartridge Rod Seal blue (Ø12.5 mm rod) for KAWASAKI KX, KXF 250, 450 and YAMAHA YZ, YZF 125, 250, 450 2005-2008
€17.90
Tax Included
KYB bleu (tige Ø12.5 mm) fork cartridge rod seal for YAMAHA YZ 125, YZ 250, YZF 250, YZF 450 and KAWASAKI KX 250, KXF 450 from 2005 to 2008.
The KYB bleu (tige Ø12.5 mm) KYB-3001002 fork cartridge rod seal is designed for YAMAHA YZ 125, YZ 250, YZF 250, YZF 450 and KAWASAKI KX 250, KXF 450 from 2005 to 2008. In a cartridge fork, the damping happens inside a closed tube in which a piston rod slides. This seal keeps the oil in around the rod: once it wears, oil gets past and the damping loses effectiveness and consistency.
Specifications
- Brand: KYB
- Manufacturer part number: KYB-3001002
- Size: outer Ø 19 mm, inner Ø 12.5 mm, height 3.5 mm
When to replace it?
- Fork damping that changes during a ride.
- Oil getting where it shouldn't, cartridge oil level dropping.
- Seal hardened, marked or distorted when you remove it.
Replace this part at every full cartridge service, as set out in the fork manual. Check the diameter and dimensions listed: they must match your cartridge.
Fitting tips
- Servicing a cartridge takes method and the right tools: follow the fork manual or leave it to a suspension specialist.
- Strip the cartridge, clean all the parts and check the condition of the rod (scratches, pitting).
- Fit the new part, oiled, without twisting it or damaging it on the threads.
- Reassemble with fresh fork oil and carefully bleed the air out of the cartridge.
Why KYB?
A Japanese hydraulics specialist since 1919, KYB designs shock absorbers and forks for cars and motorcycles alike. Its motorcycle range also includes maintenance parts for its suspension: fork oil seals, fork bushings and oil.
Spare parts and items to plan
- Fork oil : LIQUI MOLY 10W 500 ml
- Fork oil seals : ATHENA P40FORK455105 · ATHENA P40FORK455139
Frequently asked questions
Should I service both fork legs?
Yes: service both sides together so they behave identically.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
KAWASAKI KX 250 2008
KAWASAKI KX 250 2007
KAWASAKI KX 250 2006
KAWASAKI KX 250 2005
KAWASAKI KXF 450 2006
YAMAHA YZ 125 2005
YAMAHA YZ 250 2005
YAMAHA YZF 250 2005
YAMAHA YZF 450 2005
KYB-3001002
Specific References
Click on your bike to see all compatible parts.
No customer reviews for the moment.
KYB bleu (tige Ø12.5 mm) fork cartridge rod seal for YAMAHA YZ 125, YZ 250, YZF 250, YZF 450 and KAWASAKI KX 250, KXF 450 from 2005 to 2008.
KYB Fork Cartridge Rod Seal blue (Ø12.5 mm rod) for KAWASAKI KX, KXF 250, 450 and YAMAHA YZ, YZF 125, 250, 450 2005-2008
