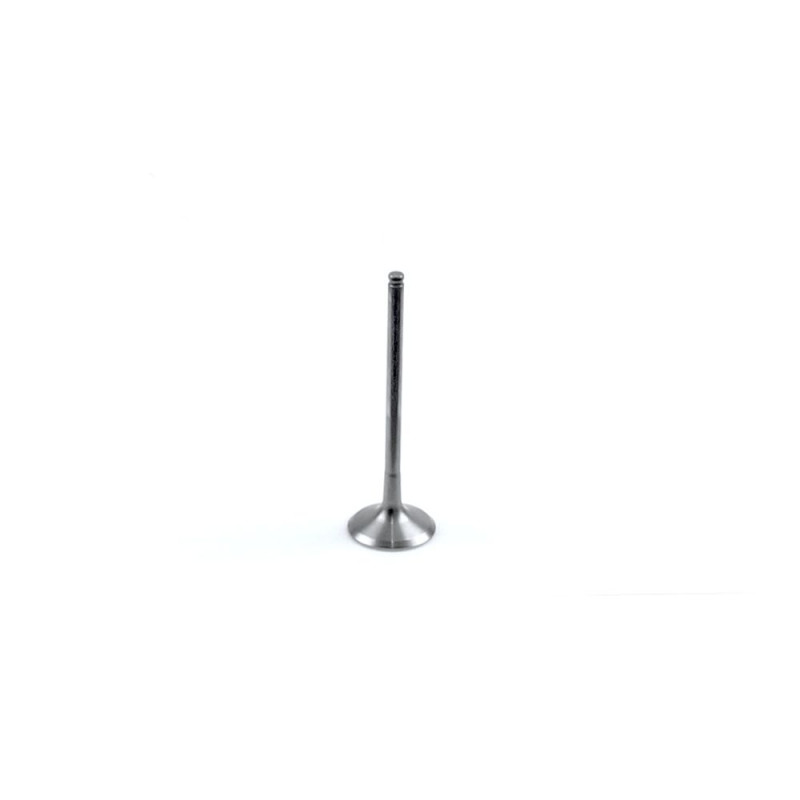

ATHENA titanium Exhaust Valve for KAWASAKI KXF 250 and SUZUKI RMZ 250 2004-2016

On KAWASAKI KXF 250 and SUZUKI RMZ 250 from 2004 to 2016, the ATHENA titane VE-250201T exhaust valve fits in place of the original part. On a four-stroke, the exhaust valve has gases at several hundred degrees flowing past it on every cycle. A tired valve loses compression and makes hot starts difficult.

Specifications

• Brand: ATHENA
• Manufacturer part number: VE-250201T
• EAN code: 8056684268764
• Weight: 30 g
• Engine: 4-stroke

When to replace it?

• Valve clearance closing up from one check to the next.
• Hard hot starting, loss of compression.
• Marked valve face or cupped valve when removed.

As soon as the valve clearance no longer holds between two checks. Always replace the valves on the same side together and have the seats recut.

Fitting tips

1. Have the valve seats recut and check the guides.
2. Don't lap a coated titanium valve with grinding paste: it would destroy the coating.
3. Fit new valve stem seals and check the springs.
4. Set the valve clearance with valve shims if needed, then check it again after the first few hours.
5. Refit with a valve cover gasket in good condition.

Why ATHENA?

Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.

Spare parts and items to plan

• Valve stem seals : ATHENA · PROX
• Valve shims : PROX 29.748 · PROX 29.VSA748
• Valve cover gasket : ATHENA S410510015042 · ATHENA S410250015066

Frequently asked questions

Do both valves need replacing?
Yes, exhaust valves are usually replaced as a pair, with the seats recut.

Titanium or steel?
Titanium is much lighter: the valve train copes better with high revs. Steel is more tolerant of wear and is perfectly suited to leisure riding; don't mix the two materials without following the manufacturer's recommendations (springs).

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KXF 250 2016
KAWASAKI KXF 250 2015
KAWASAKI KXF 250 2014
KAWASAKI KXF 250 2013
KAWASAKI KXF 250 2012
KAWASAKI KXF 250 2011
KAWASAKI KXF 250 2010
KAWASAKI KXF 250 2009
KAWASAKI KXF 250 2008
KAWASAKI KXF 250 2007
KAWASAKI KXF 250 2006
KAWASAKI KXF 250 2005
KAWASAKI KXF 250 2004
SUZUKI RMZ 250 2006
SUZUKI RMZ 250 2005
SUZUKI RMZ 250 2004
