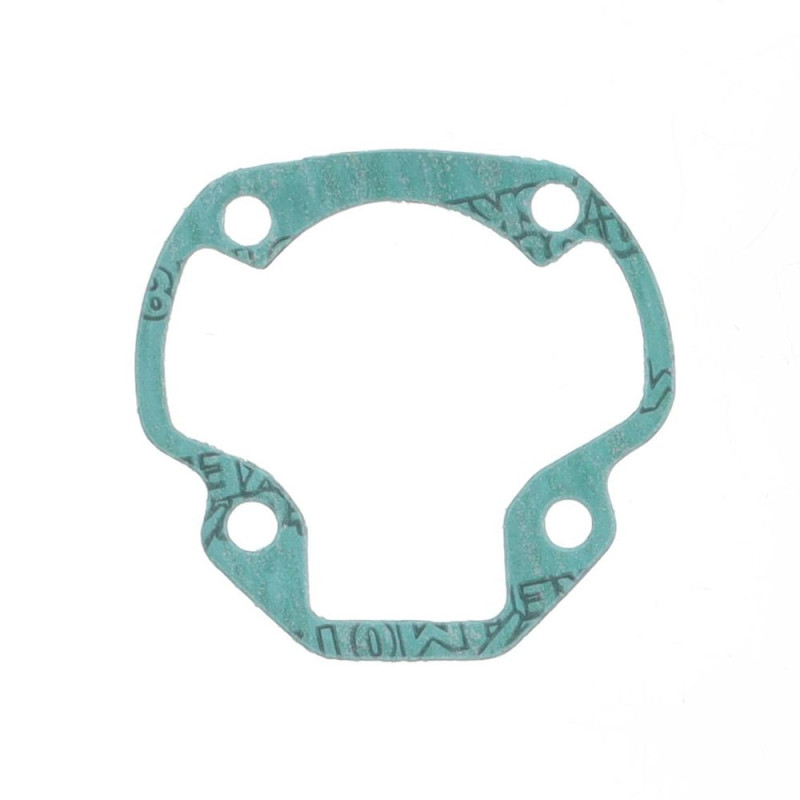

ATHENA Cylinder Base Gasket ref. S410485006027 for YAMAHA TY 50 1977-1980

ATHENA offers this cylinder base gasket for YAMAHA TY 50 1977-1980. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your YAMAHA TY 50?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 15 h of hard use and every 30 h of leisure riding.

Specifications and fitting tips

• Thickness : 0.50 mm
• Manufacturer part number: S410485006027

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : ATHENA S410485006028 · ATHENA S410485001036
• Piston : TECNIUM · WISECO
• Piston rings : TECNIUM 260-11601-320.75 · TECNIUM PSR-DT50-STD
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA TY 50 1980
YAMAHA TY 50 1979
YAMAHA TY 50 1978
YAMAHA TY 50 1977
