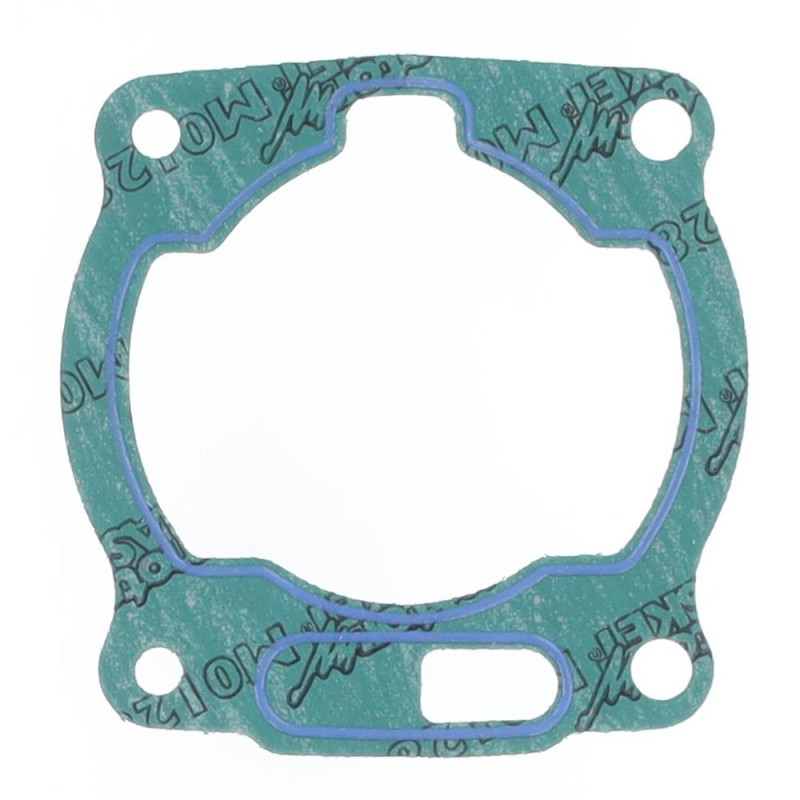

ATHENA Cylinder Base Gasket for YAMAHA DT 125 1993-2006

ATHENA offers this cylinder base gasket for YAMAHA DT 125 1993-2006. The base gasket sits under the cylinder, on the crankcase. Crushed when tightened, it cannot be reused: replace it every time the cylinder comes off.

Why does the thickness matter?

The benefits:

• The OE thickness keeps the cylinder height intended by the manufacturer.
• Another thickness lets you correct piston-to-head clearance after machining or adjust the port timing of a 2-stroke.
• A new gasket keeps the bottom end sealed against oil and gases.

Why choose ATHENA?

Athena, founded in 1973 by Giovanni Mancassola near Vicenza and based in Alonte (Italy), designs gaskets, pistons and cylinder kits; it supplies original equipment to manufacturers such as KTM, Ducati, Fantic and Triumph.

When should you replace the base gasket on your YAMAHA DT 125?

Every time the cylinder comes off: piston change, top-end rebuild or cylinder inspection. Oil or mixture seeping at the base of the cylinder also points to a tired gasket.

No manufacturer figure in hours for this model. Cross-Mania guideline: compression check every 20 h of hard use and every 40 h of leisure riding.

Specifications and fitting tips

• Thickness : OE
• Manufacturer part number: S410485006018

Cross-Mania tip: Choose the OE thickness if the cylinder and head have not been machined; if in doubt, measure the squish with solder wire before final assembly.

Spare parts and items to plan

• Top-end gasket kit : ATHENA P400485160005 · ATHENA S410485001019
• Piston : ATHENA · PROX
• Piston rings : WOSSNER · TECNIUM
• Coolant : LIQUI MOLY 1 L · TWIN AIR

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA DT 125 2006
YAMAHA DT 125 2005
YAMAHA DT 125 2004
YAMAHA DT 125 2003
YAMAHA DT 125 2002
YAMAHA DT 125 2001
YAMAHA DT 125 2000
YAMAHA DT 125 1999
YAMAHA DT 125 1998
YAMAHA DT 125 1997
YAMAHA DT 125 1996
YAMAHA DT 125 1995
YAMAHA DT 125 1994
YAMAHA DT 125 1993
