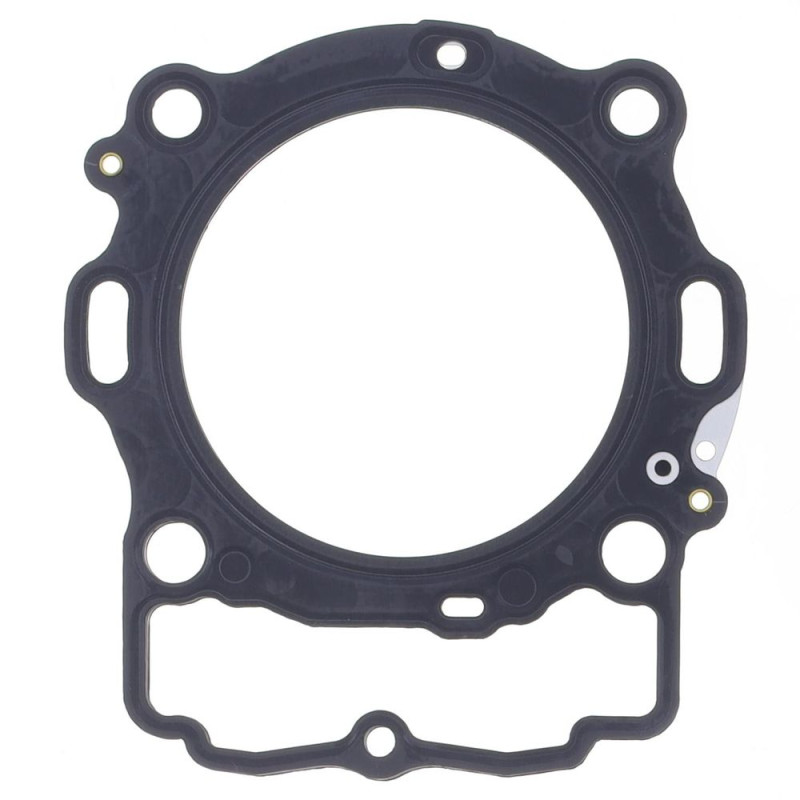

ATHENA Cylinder Head Gasket for KTM EXC 450, EXC 500, SXF 450, XCF 450, XCW 500 and HUSQVARNA FC 450, FE 450, FE 501 2014-2016

The ATHENA S410270001047 head gasket is designed for KTM EXC 450, EXC 500, SXF 450, XCF 450, XCW 500 and HUSQVARNA FC 450, FE 450, FE 501 from 2014 to 2016. The head gasket seals between the cylinder head and the cylinder: it holds in the combustion pressure and, depending on the engine, the coolant. Crushed when tightened, it can never be reused.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410270001047
• EAN code: 8051757131969
• Thickness: OE
• Weight: 90 g
• Engine: 4-stroke

When to replace it?

• Loss of compression, less lively engine.
• Black marks or hissing at the head/cylinder joint.
• Coolant level dropping, bubbles in the radiator.

Every time the cylinder head is removed, and therefore at every piston change.

Fitting tips

1. Clean the cylinder head and cylinder faces without scratching them.
2. Fit the gasket dry, the right way round, centred on the studs and the coolant holes.
3. No sealant on the gasket.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, to the manufacturer's torque.
5. Refill the coolant and take the opportunity to replace the spark plug.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Top-end gasket kit : ATHENA · CENTAURO
• Piston : PROX · WOSSNER
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• Spark plug : NGK 3521 · NGK 97225

Frequently asked questions

Is the gasket enough to refit the cylinder head?
It replaces the head gasket only. If you also remove the cylinder, go for a complete top end gasket kit instead.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HUSQVARNA FC 450 2015
HUSQVARNA FC 450 2014
HUSQVARNA FE 450 2016
HUSQVARNA FE 450 2015
HUSQVARNA FE 450 2014
HUSQVARNA FE 501 2015
HUSQVARNA FE 501 2014
KTM EXC 450 2016
KTM EXC 450 2015
KTM EXC 450 2014
KTM EXC 500 2016
KTM EXC 500 2015
KTM EXC 500 2014
KTM SXF 450 2015
KTM SXF 450 2014
KTM XCF 450 2015
KTM XCF 450 2014
KTM XCW 500 2016
KTM XCW 500 2015
KTM XCW 500 2014
