ATHENA Top End Gasket Kit for KTM LC4 640, SXC 625 2003-2007
€76.83
Tax Included

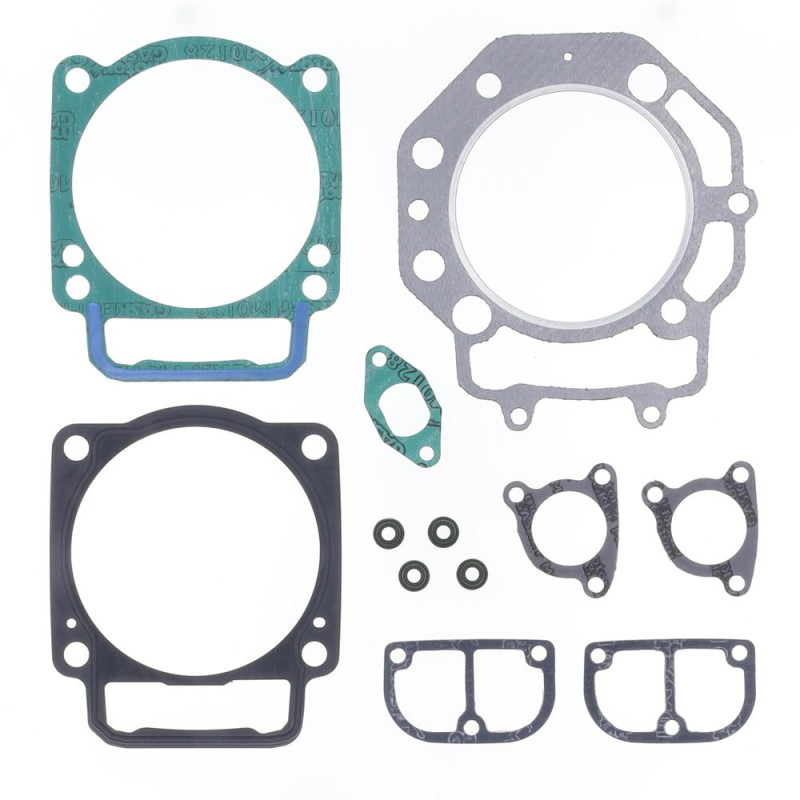

ATHENA top end gasket kit for KTM LC4 640, SXC 625 from 2003 to 2007. Head, base and exhaust gaskets, O-rings and washers, depending on the model.
On KTM LC4 640, SXC 625 from 2003 to 2007, the ATHENA P400270600024 top end gasket kit fits in place of the original part. As soon as the cylinder head or cylinder is removed, their gaskets must be replaced: crushed when tightened, they have taken the shape of the parts and will no longer seal. This kit groups under one part number the gaskets needed to reassemble the top end.
Key features
- Head, base and exhaust gaskets, O-rings and washers, depending on the model.
- Laser cutting and surface treatments for consistent sealing.
- Designed by Athena, an OEM supplier, and validated on test benches.
Specifications
- Brand: ATHENA
- Manufacturer part number: P400270600024
- EAN code: 8055681302860
- Weight: 110 g
- Engine: 4-stroke
When to replace it?
- Coolant or oil seeping at the head/cylinder or cylinder/crankcase joint.
- Coolant level dropping, bubbles in the radiator.
- Hissing or black marks where the exhaust leaves the cylinder.
At every piston change and every time the cylinder head or cylinder is removed, even for a simple inspection. Gaskets cost little compared with the work of stripping the engine.
Fitting tips
- Clean the gasket faces without scratching them (plastic scraper, solvent): they must be clean, dry and free of burrs.
- Fit the gaskets dry, without sealant, unless the workshop manual says otherwise.
- Refit a base gasket of the same thickness as the old one, unless you are deliberately adjusting the squish.
- Tighten the cylinder head in a criss-cross pattern, in several stages, up to the manufacturer's torque.
- While it's apart, replace the spark plug and refill the coolant.
- After break-in, check the torque with the engine cold and make sure there are no leaks.
Why ATHENA?
Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.
Spare parts and items to plan
- Piston : WOSSNER
- Piston rings : PROX · WISECO 650 L
- Spark plug : see the selection
- Coolant : LIQUI MOLY 1 L · TWIN AIR
- 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50
Frequently asked questions
What does the kit contain?
Depending on the model: head gasket, base gasket, exhaust gasket, O-rings and washers. Compare with your original gaskets if you're unsure.
Should I replace it along with the piston?
Yes: as soon as the cylinder head and cylinder are off, new gaskets go back on. It's the right time to fit a new piston kit and new rings if the engine has some hours on it.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
KTM LC4 640 2006
KTM LC4 640 2005
KTM LC4 640 2004
KTM LC4 640 2003
KTM SXC 625 2007
KTM SXC 625 2006
KTM SXC 625 2005
KTM SXC 625 2004
KTM SXC 625 2003
