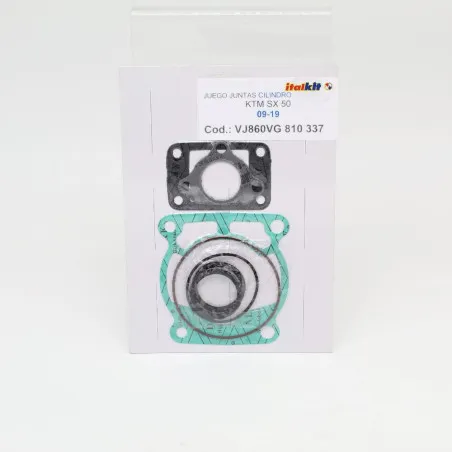

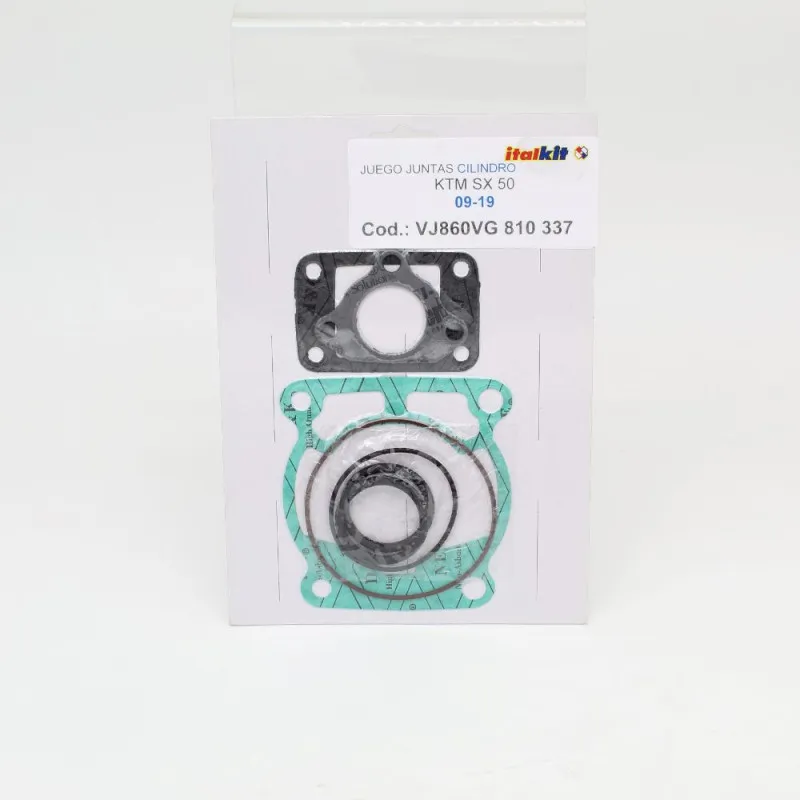

ITALKIT Top End Gasket Kit for KTM SX 50, HUSQVARNA TC 50 and GAS GAS MC 50 2009-2023

On KTM SX 50, HUSQVARNA TC 50 and GAS GAS MC 50 from 2009 to 2023, the ITALKIT VJ860VG810337 top end gasket kit fits in place of the original part. As soon as the cylinder head or cylinder is removed, their gaskets must be replaced: crushed when tightened, they have taken the shape of the parts and will no longer seal. This kit groups under one part number the gaskets needed to reassemble the top end.

Specifications

• Brand: ITALKIT
• Manufacturer part number: VJ860VG810337
• Engine: 2-stroke

When to replace it?

• Coolant or oil seeping at the head/cylinder or cylinder/crankcase joint.
• Coolant level dropping, bubbles in the radiator.
• Hissing or black marks where the exhaust leaves the cylinder.

At every piston change and every time the cylinder head or cylinder is removed, even for a simple inspection. Gaskets cost little compared with the work of stripping the engine.

Fitting tips

1. Clean the gasket faces without scratching them (plastic scraper, solvent): they must be clean, dry and free of burrs.
2. Fit the gaskets dry, without sealant, unless the workshop manual says otherwise.
3. Refit a base gasket of the same thickness as the old one, unless you are deliberately adjusting the squish.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, up to the manufacturer's torque.
5. While it's apart, replace the spark plug and refill the coolant.
6. After break-in, check the torque with the engine cold and make sure there are no leaks.

Why ITALKIT?

ITALKIT is a Spanish manufacturer of engine parts for small-displacement machines: cylinders, pistons, crankshafts, reed valves and spare parts in several sizes. The brand is very active in 50cc racing, especially in Spain.

Spare parts and items to plan

• Piston : PROX · VERTEX
• Piston rings : VERTEX · WOSSNER
• Spark plug : NGK · NGK LR8B
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063

Frequently asked questions

What does the kit contain?
Depends on the model. Compare with your original gaskets if in doubt.

Should I replace it along with the piston?
Yes: as soon as the cylinder head and cylinder are off, new gaskets go back on. It's the right time to fit a new piston kit and new rings if the engine has some hours on it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS MC 50 2023
GAS GAS MC 50 2022
GAS GAS MC 50 2021
HUSQVARNA TC 50 2023
HUSQVARNA TC 50 2022
HUSQVARNA TC 50 2021
HUSQVARNA TC 50 2020
HUSQVARNA TC 50 2019
HUSQVARNA TC 50 2018
HUSQVARNA TC 50 2017
KTM SX 50 2023
KTM SX 50 2022
KTM SX 50 2021
KTM SX 50 2020
KTM SX 50 2019
KTM SX 50 2018
KTM SX 50 2017
KTM SX 50 2016
KTM SX 50 2015
KTM SX 50 2014
KTM SX 50 2013
KTM SX 50 2012
KTM SX 50 2011
KTM SX 50 2010
KTM SX 50 2009
