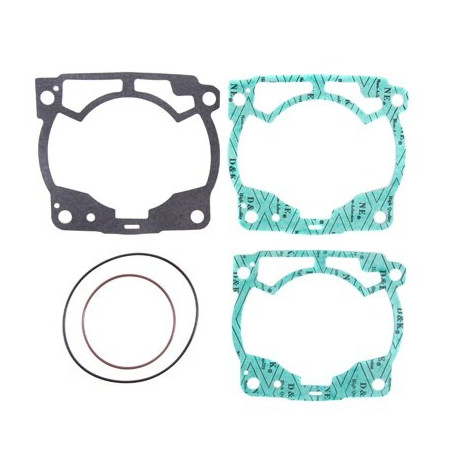

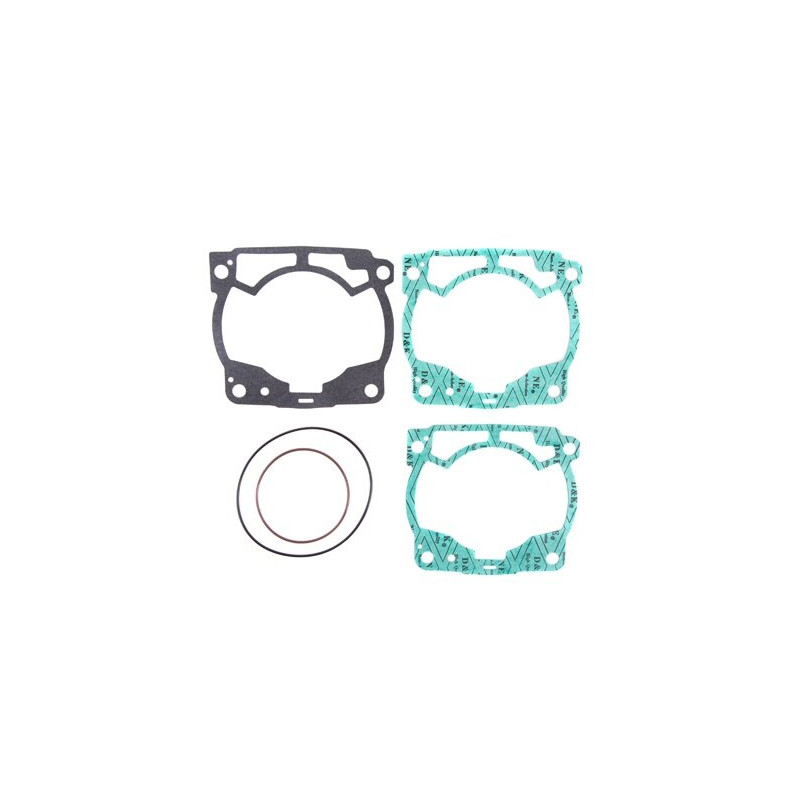

PROX Top End Gasket Kit (base + head) for KTM SX 65, HUSQVARNA TC 65 and GAS GAS MC 65 2009-2023

On KTM SX 65, HUSQVARNA TC 65 and GAS GAS MC 65 from 2009 to 2023, the PROX (embase + culasse) 36.6019 top end gasket kit fits in place of the original part. As soon as the cylinder head or cylinder is removed, their gaskets must be replaced: crushed when tightened, they have taken the shape of the parts and will no longer seal. This kit groups under one part number the gaskets needed to reassemble the top end.

Specifications

• Brand: PROX
• Manufacturer part number: 36.6019
• Weight: 50 g
• Engine: 2-stroke

When to replace it?

• Coolant or oil seeping at the head/cylinder or cylinder/crankcase joint.
• Coolant level dropping, bubbles in the radiator.
• Hissing or black marks where the exhaust leaves the cylinder.

At every piston change and every time the cylinder head or cylinder is removed, even for a simple inspection. Gaskets cost little compared with the work of stripping the engine.

Fitting tips

1. Clean the gasket faces without scratching them (plastic scraper, solvent): they must be clean, dry and free of burrs.
2. Fit the gaskets dry, without sealant, unless the workshop manual says otherwise.
3. Refit a base gasket of the same thickness as the old one, unless you are deliberately adjusting the squish.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, up to the manufacturer's torque.
5. While it's apart, replace the spark plug and refill the coolant.
6. After break-in, check the torque with the engine cold and make sure there are no leaks.

Why PROX?

ProX Racing Parts has been supplying engine and clutch parts to motocross riders since 1975, from its headquarters near Amsterdam. According to its catalogue, most of its parts are made in Japan, by manufacturers that also produce parts for the Japanese motorcycle makers.

Spare parts and items to plan

• Piston : VERTEX · PROX
• Piston rings : WOSSNER · VERTEX
• Spark plug : NGK LR8B · NGK
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Frequently asked questions

What does the kit contain?
The base gasket and the head gasket.

Should I replace it along with the piston?
Yes: as soon as the cylinder head and cylinder are off, new gaskets go back on. It's the right time to fit a new piston kit and new rings if the engine has some hours on it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
GAS GAS MC 65 2023
GAS GAS MC 65 2022
GAS GAS MC 65 2021
HUSQVARNA TC 65 2023
HUSQVARNA TC 65 2022
HUSQVARNA TC 65 2021
HUSQVARNA TC 65 2020
HUSQVARNA TC 65 2019
HUSQVARNA TC 65 2018
HUSQVARNA TC 65 2017
KTM SX 65 2023
KTM SX 65 2022
KTM SX 65 2021
KTM SX 65 2020
KTM SX 65 2019
KTM SX 65 2018
KTM SX 65 2017
KTM SX 65 2016
KTM SX 65 2015
KTM SX 65 2014
KTM SX 65 2013
KTM SX 65 2012
KTM SX 65 2011
KTM SX 65 2010
KTM SX 65 2009
