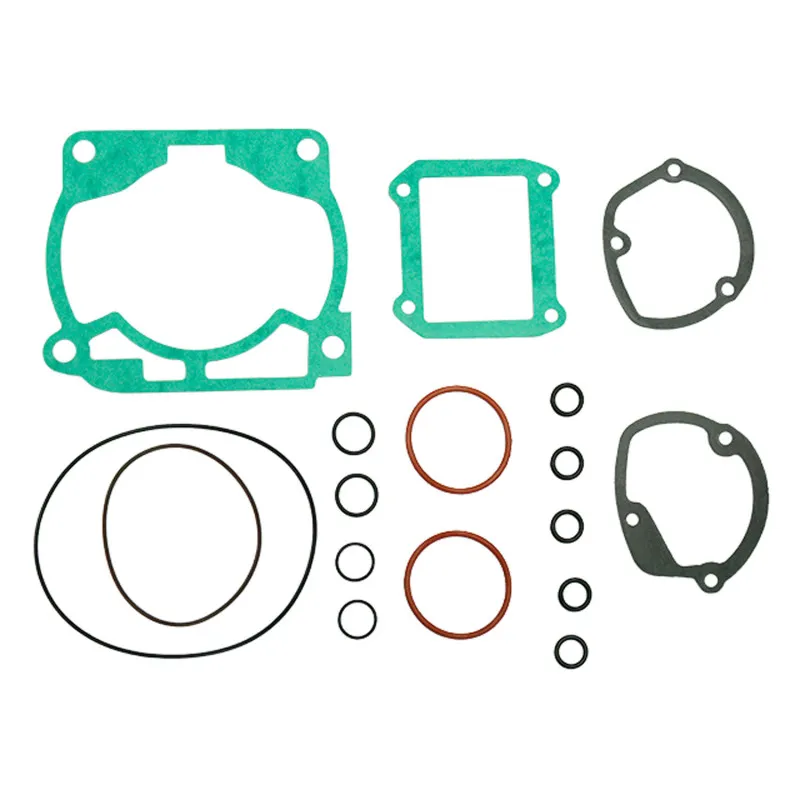

INNTECK Top End Gasket Kit for KTM EXC 250, FREERIDE 250, SX 250, XC 250, XCW 250 2003-2014

The INNTECK NX-70050T top end gasket kit is designed for KTM EXC 250, FREERIDE 250, SX 250, XC 250, XCW 250 from 2003 to 2014. The top end gasket kit brings together the gaskets to replace every time the cylinder head or cylinder comes off. A gasket crushed by tightening never gets its shape back: refitting it means risking a compression, coolant or oil leak, and having to strip everything down again.

Specifications

• Brand: INNTECK
• Manufacturer part number: NX-70050T
• Engine: 2-stroke

When to replace it?

• Coolant or oil seeping at the head/cylinder or cylinder/crankcase joint.
• Coolant level dropping, bubbles in the radiator.
• Hissing or black marks where the exhaust leaves the cylinder.

At every piston change and every time the cylinder head or cylinder is removed, even for a simple inspection. Gaskets cost little compared with the work of stripping the engine.

Fitting tips

1. Clean the gasket faces without scratching them (plastic scraper, solvent): they must be clean, dry and free of burrs.
2. Fit the gaskets dry, without sealant, unless the workshop manual says otherwise.
3. Refit a base gasket of the same thickness as the old one, unless you are deliberately adjusting the squish.
4. Tighten the cylinder head in a criss-cross pattern, in several stages, up to the manufacturer's torque.
5. While it's apart, replace the spark plug and refill the coolant.
6. After break-in, check the torque with the engine cold and make sure there are no leaks.

Spare parts and items to plan

• Piston : PROX · WOSSNER
• Piston rings : VERTEX · WOSSNER
• Spark plug : NGK 6664 · NGK 3520
• Coolant : LIQUI MOLY 1 L · TWIN AIR
• 2-stroke oil : LIQUI MOLY 1 L · LIQUI MOLY 4 L

Frequently asked questions

What does the kit contain?
Depends on the model. Compare with your original gaskets if in doubt.

Should I replace it along with the piston?
Yes: as soon as the cylinder head and cylinder are off, new gaskets go back on. It's the right time to fit a new piston kit and new rings if the engine has some hours on it.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KTM EXC 250 2004
KTM FREERIDE 250 2014
KTM SX 250 2004
KTM SX 250 2003
KTM XC 250 2012
KTM XC 250 2011
KTM XC 250 2010
KTM XC 250 2009
KTM XC 250 2008
KTM XC 250 2007
KTM XC 250 2006
KTM XCW 250 2012
KTM XCW 250 2011
KTM XCW 250 2010
KTM XCW 250 2009
KTM XCW 250 2008
KTM XCW 250 2007
KTM XCW 250 2006
