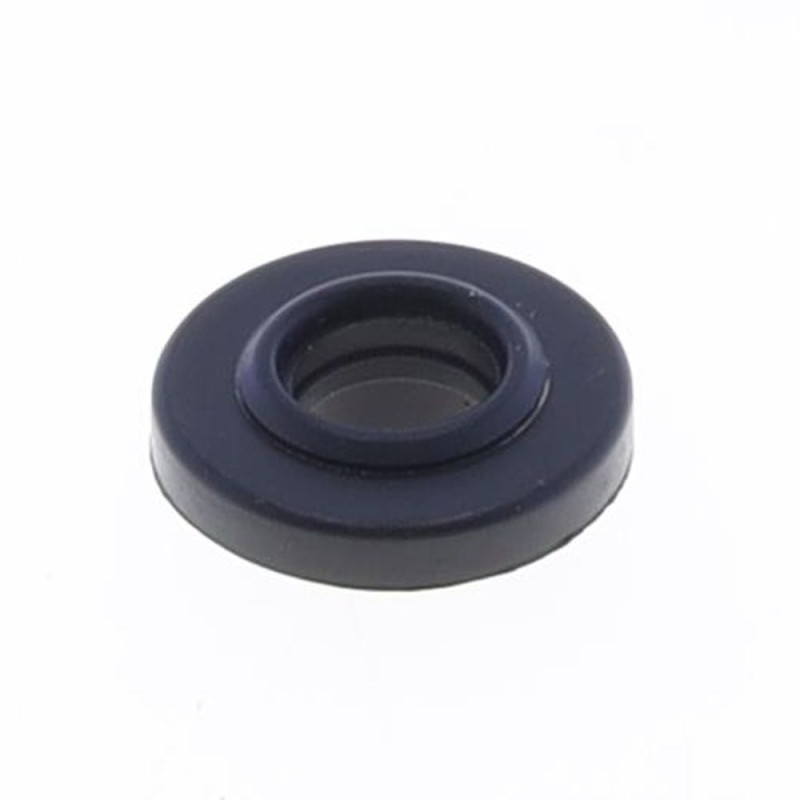

ATHENA Valve Cover Gasket for HONDA XL 125, XRV 750 1990-2010

The ATHENA S410210015064 valve cover gasket is designed for HONDA XL 125, XRV 750 from 1990 to 2010. On a four-stroke, the valve cover closes off the top of the engine, above the camshafts. Its gasket holds in the oil that lubricates the valve train: hardened or flattened, it lets oil seep onto the cylinder head.

Specifications

• Brand: ATHENA
• Manufacturer part number: S410210015064
• EAN code: 8051757156573
• Engine: 4-stroke

When to replace it?

• Oil seeping around the valve cover or into the spark plug tube.
• Gasket hardened, flattened or split on removal.

During a valve clearance check or work on the valve train, as soon as the gasket is hardened, flattened or damaged.

Fitting tips

1. Clean the groove in the cover and the cylinder head face.
2. Seat the gasket properly in its groove; sealant goes only where the manual calls for it (often the camshaft half-moons).
3. Tighten the screws in a criss-cross pattern to the manufacturer's torque, without crushing the gasket.
4. While it's apart, adjust the valve clearance with valve shims if needed and replace the spark plug.

Why ATHENA?

Athena, an Italian company founded in 1973 near Vicenza, designs gaskets, pistons and cylinder kits for motorcycles. An OEM supplier to KTM, Ducati, Fantic, Piaggio and Triumph and a partner of the MXGP world championship, it develops its parts on the test bench and on the track with racing teams.

Spare parts and items to plan

• Valve shims : see the selection
• Spark plug : NGK 4929 · NGK 2923
• Valve stem seals : ATHENA P400210420610 · ATHENA P400210420105
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Frequently asked questions

Should it be replaced at every valve check?
Not necessarily if it is still supple and intact, but a hardened gasket always ends up leaking.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
HONDA XL 125 2010
HONDA XL 125 2009
HONDA XL 125 2008
HONDA XL 125 2007
HONDA XL 125 2006
HONDA XL 125 2005
HONDA XL 125 2004
HONDA XL 125 2003
HONDA XL 125 2002
HONDA XL 125 2001
HONDA XRV 750 2000
HONDA XRV 750 1999
HONDA XRV 750 1998
HONDA XRV 750 1997
HONDA XRV 750 1996
HONDA XRV 750 1995
HONDA XRV 750 1994
HONDA XRV 750 1993
HONDA XRV 750 1992
HONDA XRV 750 1991
HONDA XRV 750 1990
