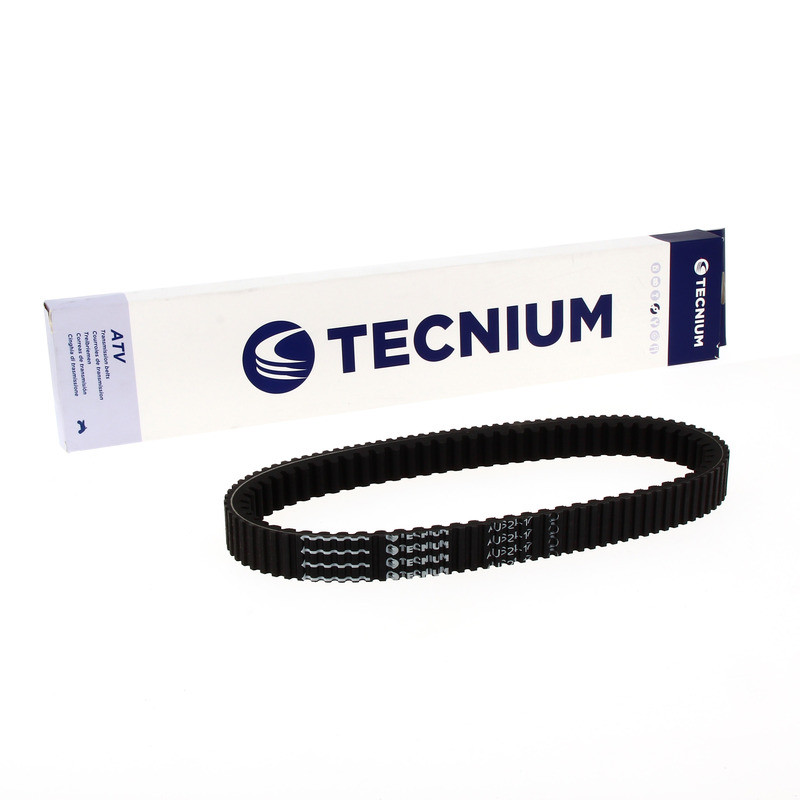

TECNIUM EliteGrip CVT Belt for KAWASAKI KVF 360 PRAIRIE 4WD, TGB BLADE 425 SE 4X4 and SUZUKI LT-A 400 EIGER AUTOMATIC 4WD

TECNIUM offers this drive belt for KAWASAKI KFX 700, KVF 360 PRAIRIE 2WD, KVF 360 PRAIRIE 4WD, KVF 650 BRUTE FORCE 4WD, KVF 750 BRUTE FORCE I 4WD, TGB BLADE 425 SE 4X4, BLADE 525 SE, BLADE 525 SE 4X4, BLADE 525 SL, TARGET 525 and SUZUKI LT-A 400 EIGER AUTOMATIC 4WD, LT-V 700 F 4X4 TWIN PEAKS 2002-2017. A variator (CVT) transmission has no gears to shift: the belt runs between two pulleys whose halves move closer together or further apart depending on engine speed and load.

Why replace the belt in time?

The benefits:

• Get back the acceleration and top speed lost to a worn, slipping belt.
• Avoid a breakdown mid-ride: a belt that snaps leaves the quad stranded, often far from anywhere.
• A reinforced belt copes better with loaded starts, climbs, mud and towing.

When should you replace this part?

Width below the minimum, smooth shiny (glazed) sides, cracks, missing cogs or fraying: replace the belt before it snaps mid-ride.

Specifications and fitting tips

• Material: Very High Strength Aramid
• Belt quality: Reinforced
• Specificity: 325cc-1000cc
• Manufacturer part number: AUS24-17

Cross-Mania tip: Clean and degrease the pulley faces before fitting, follow the direction-of-rotation arrow if the belt has one and follow the manufacturer's break-in procedure.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
KAWASAKI KFX 700 2011
KAWASAKI KFX 700 2010
KAWASAKI KFX 700 2009
KAWASAKI KFX 700 2008
KAWASAKI KFX 700 2007
KAWASAKI KFX 700 2006
KAWASAKI KFX 700 2005
KAWASAKI KFX 700 2004
KAWASAKI KVF 360 PRAIRIE 2WD 2009
KAWASAKI KVF 360 PRAIRIE 2WD 2008
KAWASAKI KVF 360 PRAIRIE 2WD 2007
KAWASAKI KVF 360 PRAIRIE 2WD 2006
KAWASAKI KVF 360 PRAIRIE 2WD 2005
KAWASAKI KVF 360 PRAIRIE 2WD 2004
KAWASAKI KVF 360 PRAIRIE 2WD 2003
KAWASAKI KVF 360 PRAIRIE 4WD 2013
KAWASAKI KVF 360 PRAIRIE 4WD 2012
KAWASAKI KVF 360 PRAIRIE 4WD 2011
KAWASAKI KVF 360 PRAIRIE 4WD 2010
KAWASAKI KVF 360 PRAIRIE 4WD 2009
KAWASAKI KVF 360 PRAIRIE 4WD 2008
KAWASAKI KVF 360 PRAIRIE 4WD 2007
KAWASAKI KVF 360 PRAIRIE 4WD 2006
KAWASAKI KVF 360 PRAIRIE 4WD 2005
KAWASAKI KVF 360 PRAIRIE 4WD 2004
KAWASAKI KVF 360 PRAIRIE 4WD 2003
KAWASAKI KVF 650 BRUTE FORCE 4WD 2011
KAWASAKI KVF 650 BRUTE FORCE 4WD 2010
KAWASAKI KVF 650 BRUTE FORCE 4WD 2009
KAWASAKI KVF 650 BRUTE FORCE 4WD 2008
KAWASAKI KVF 650 BRUTE FORCE 4WD 2007
KAWASAKI KVF 650 BRUTE FORCE 4WD 2006
KAWASAKI KVF 650 BRUTE FORCE 4WD 2005
KAWASAKI KVF 650 BRUTE FORCE I 4WD 2014
KAWASAKI KVF 650 BRUTE FORCE I 4WD 2013
KAWASAKI KVF 650 BRUTE FORCE I 4WD 2012
KAWASAKI KVF 700 PRAIRIE 4WD 2006
KAWASAKI KVF 700 PRAIRIE 4WD 2005
KAWASAKI KVF 700 PRAIRIE 4WD 2004
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2011
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2010
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2009
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2008
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2007
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2006
KAWASAKI KVF 750 BRUTE FORCE I 4WD 2005
SUZUKI LT-A 400 EIGER AUTOMATIC 4WD 2007
SUZUKI LT-A 400 EIGER AUTOMATIC 4WD 2006
SUZUKI LT-A 400 EIGER AUTOMATIC 4WD 2005
SUZUKI LT-A 400 EIGER AUTOMATIC 4WD 2004
SUZUKI LT-A 400 EIGER AUTOMATIC 4WD 2003
SUZUKI LT-A 400 EIGER AUTOMATIC 4WD 2002
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2005
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2004
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2003
SUZUKI LT-V 700 F 4X4 TWIN PEAKS 2002
TGB BLADE 425 IRS 4X4 2017
TGB BLADE 425 LE 4X4 2008
TGB BLADE 425 LE 4X4 2007
TGB BLADE 425 S 4X4 2008
TGB BLADE 425 S 4X4 2007
TGB BLADE 425 SE 4X4 2012
TGB BLADE 425 SE 4X4 2011
TGB BLADE 425 SE 4X4 2010
TGB BLADE 425 SE 4X4 2009
TGB BLADE 425 SE 4X4 2008
TGB BLADE 425 SE 4X4 2007
TGB BLADE 425 SE 4X4 2006
TGB BLADE 525 SE 2013
TGB BLADE 525 SE 2012
TGB BLADE 525 SE 2011
TGB BLADE 525 SE 2010
TGB BLADE 525 SE 2009
TGB BLADE 525 SE 4X4 2011
TGB BLADE 525 SE 4X4 2010
TGB BLADE 525 SE 4X4 2009
TGB BLADE 525 SE FI 4X4 IRS 2017
TGB BLADE 525 SL 2013
TGB BLADE 525 SL 2012
TGB BLADE 525 SL 2011
TGB BLADE 525 SL 2010
TGB BLADE 525 SL 2009
TGB BLADE 525 SL 4X4 2011
TGB BLADE 525 SL 4X4 2010
TGB BLADE 525 SL 4X4 2009
TGB TARGET 525 2011
TGB TARGET 525 2010
TGB TARGET 525 2009
TGB TARGET 525 2008
TGB TARGET 525 EFI IRS 4X4 2017
TGB TARGET 525 GUNNER 4X4 2011
TGB TARGET 525 GUNNER 4X4 2010
TGB TARGET 525 GUNNER 4X4 2009
TGB TARGET 550 IRS 2011
TGB TARGET 550 IRS 2010
