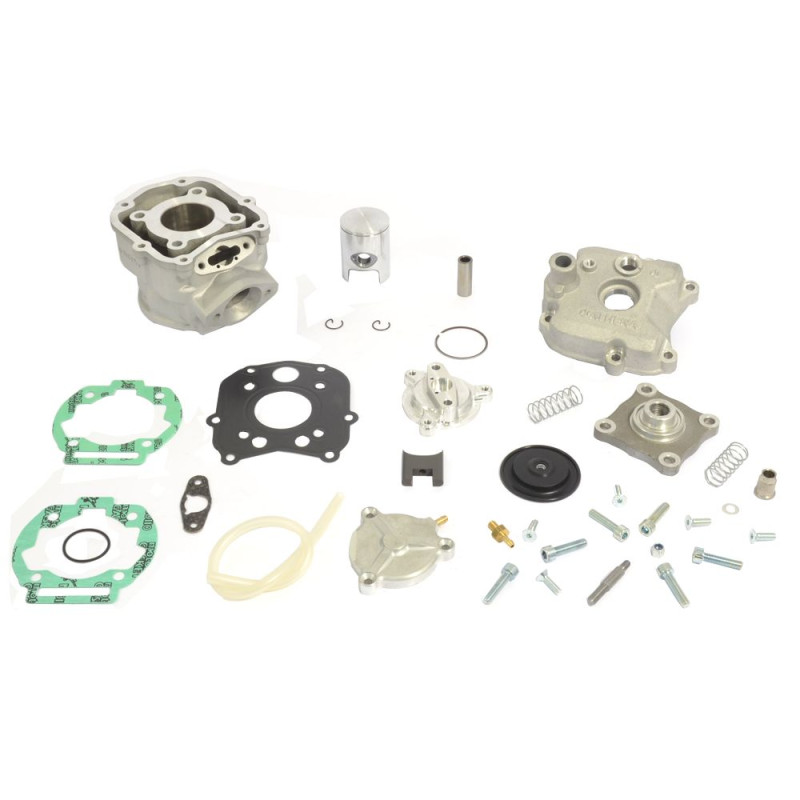

ATHENA standard bore 50 Cylinder Kit Ø40 mm with exhaust valve for APRILIA RX 50 2006-2014
€485.90
Tax Included
ATHENA cylinder kit for APRILIA RX 50 from 2006 to 2014.
On APRILIA RX 50 from 2006 to 2014, the ATHENA P400105100008 cylinder kit fits in place of the original part. A cylinder that is scored, oval or has a damaged coating loses compression and wears pistons out quickly. Rather than having it rebored and recoated, this kit replaces it with a new, ready-to-fit cylinder.
Specifications
- Brand: ATHENA
- Manufacturer part number: P400105100008
- EAN code: 8052204292622
- Weight: 1.84 kg
- Engine: 2-stroke
When to replace it?
- Cylinder scored or coating flaking after a seizure.
- Ovality or taper out of tolerance when measured with a micrometer.
Measure the cylinder at every piston change. As soon as it falls outside the tolerances in the manual or is scored, it has to be replaced or reconditioned.
Fitting tips
- Carefully clean the top of the crankcase and cover its opening before removing the old cylinder.
- Oil the supplied piston and check the ring end gaps before fitting the cylinder.
- Use new gaskets, either those in the kit or a suitable top end gasket kit, and tighten the cylinder and head in a criss-cross pattern to the manufacturer's torque.
- Fit a new spark plug and refill the coolant.
- Break the engine in gently for 3 to 4 hours, as Athena recommends for its cylinder kits.
Why ATHENA?
Founded in 1973 near Vicenza, Athena is an Italian engine gasket specialist that has made its gaskets on its own production lines since day one, as well as a renowned manufacturer of pistons and cylinder kits. The brand supplies original equipment to manufacturers such as KTM, Ducati, Fantic, Piaggio and Triumph, and is a partner of the MXGP motocross world championship.
Spare parts and items to plan
- Top-end gasket kit : see the selection
- Spark plug : NGK 3961 · NGK 5722
- Coolant : LIQUI MOLY 1 L · TWIN AIR
Frequently asked questions
What does the kit contain?
The cylinder and its complete piston. Check the photo and the Athena instructions for the gaskets supplied.
Which spare parts should I plan for?
For the next service: piston, rings, pin, circlips and top end gaskets in the same size as this cylinder.
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
APRILIA RX 50 2014
APRILIA RX 50 2013
APRILIA RX 50 2012
APRILIA RX 50 2011
APRILIA RX 50 2010
APRILIA RX 50 2009
APRILIA RX 50 2008
APRILIA RX 50 2007
APRILIA RX 50 2006
