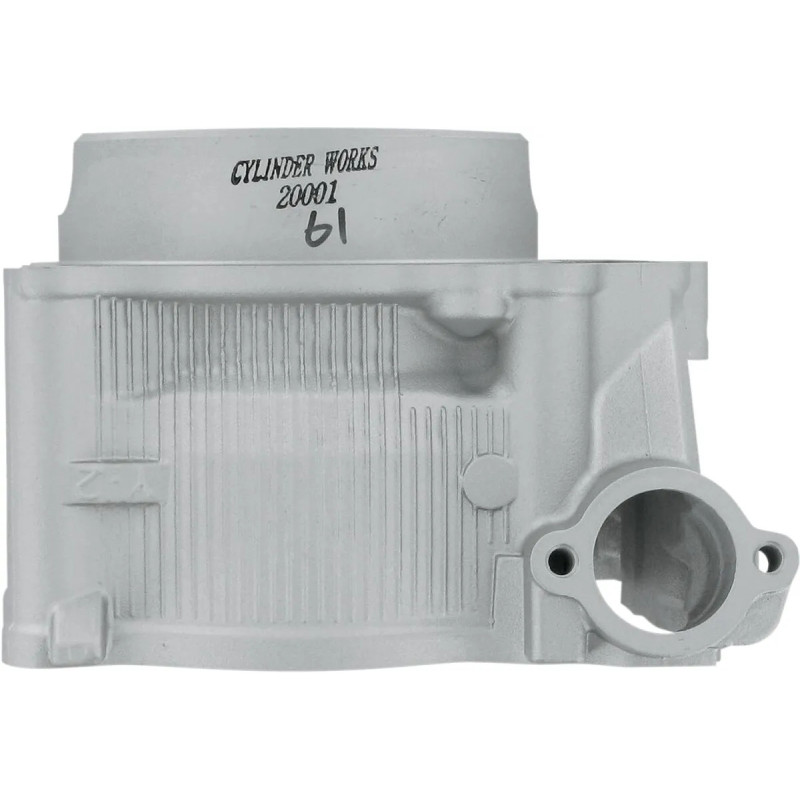

CYLINDER WORKS cylinder for YAMAHA WR 450 F, YFZ 450, YZ 450 F from 2003 to 2013

CYLINDER WORKS offers this cylinder for YAMAHA WR 450 F, YFZ 450, YZ 450 F from 2003 to 2013. The cylinder is the part the piston moves up and down in thousands of times a minute. Its inner wall has a very hard coating that resists wear and holds compression.

Why replace the cylinder?

The benefits:

• Replace a cylinder that is scored, seized or worn beyond its size.
• A new coating holds compression for a long time.
• New piston and new cylinder: the best base for a reliable engine.

Why choose CYLINDER WORKS?

Cylinder Works supplies brand-new, not remanufactured, cylinders with a nickel-silicon-carbide coating; its kits come with a matched forged Vertex piston.

When should you replace the cylinder on your YAMAHA YFZ 450?

A scored or oval cylinder, or one with damaged plating, loses compression and wears the piston quickly. Measure the bore at every top-end rebuild: beyond the wear limit the cylinder must be replaced or resleeved.

Specifications and fitting tips

• Bore: Standard
• Displacement: 450 cm³
• Cylinder bore: 95.00 mm
• Material: Aluminium, Cast
• Bore coating: Nickel silicon carbide
• Ready-to-install cylinder, bolt-on fitment with no replating needed, looks virtually identical to stock

Cross-Mania tip: Check the diameter of the supplied or required piston and replace the top-end gaskets. A big bore may require carburation or fuel-injection adjustment.

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
YAMAHA WR 450 F 2006
YAMAHA WR 450 F 2005
YAMAHA WR 450 F 2004
YAMAHA WR 450 F 2003
YAMAHA YFZ 450 2013
YAMAHA YFZ 450 2012
YAMAHA YFZ 450 2009
YAMAHA YFZ 450 2008
YAMAHA YFZ 450 2007
YAMAHA YFZ 450 2006
YAMAHA YFZ 450 2005
YAMAHA YFZ 450 2004
YAMAHA YZ 450 F 2005
YAMAHA YZ 450 F 2004
YAMAHA YZ 450 F 2003
