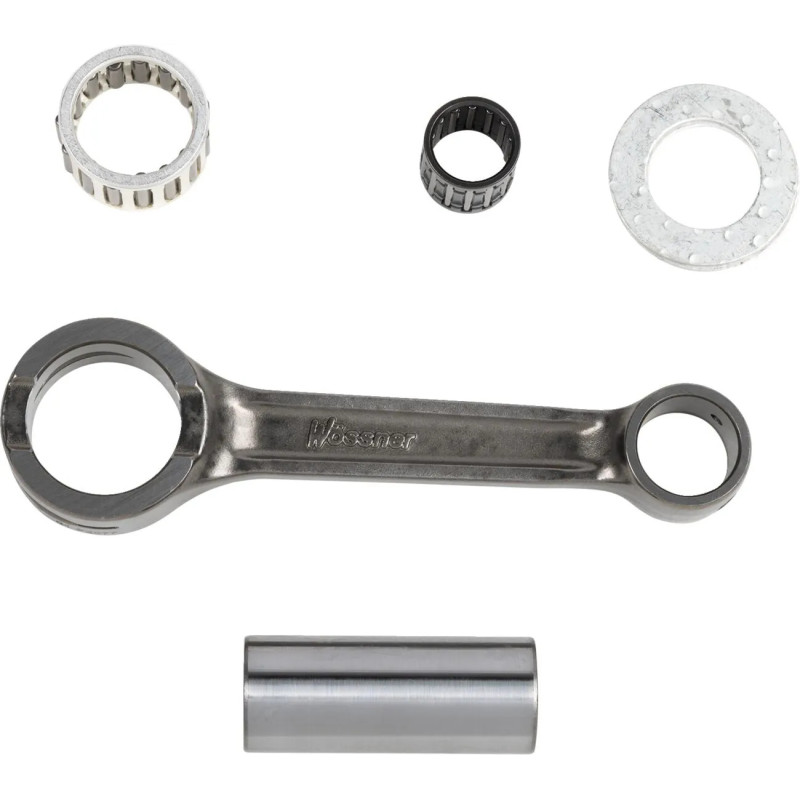

WOSSNER connecting rod kit for YAMAHA YZ 125, YZ 125 X from 2020 to 2027
€134.90
Tax Included
The connecting rod links the piston to the crankshaft: this kit replaces it with its crank pin and bearing for a bottom-end rebuild.
WOSSNER offers this connecting rod kit for YAMAHA YZ 125, YZ 125 X from 2020 to 2027. The rod passes the piston’s motion to the crankshaft. Its big-end bearing spins at very high revs and eventually develops play.
Why replace the connecting rod?
The benefits:
- Remove the play that causes noise and vibration.
- Make a high-hours engine reliable again.
- Cheaper than a complete crankshaft when the flywheels are good.
Why choose WOSSNER?
Wössner has also forged its own connecting rods since 2010, with the same in-house forging expertise as its pistons.
When should you replace the connecting rod on your YAMAHA YZ 125?
Unusual vibration, a deep knock that follows engine speed or play in the con-rod: the bottom end needs a rebuild.
The manufacturer publishes no hour interval for this model: have the con-rod play checked at every piston change. Cross-Mania guideline: rebuild the bottom end every 2 to 3 top-end rebuilds.
Specifications and fitting tips
- Contents: Connecting Rod, Bearing, Big End Pin, Washers, Top End Bearing
- Displacement: 125 cm³
- Material: Forged steel
- Style: Standard
- Engine: 2-stroke
- Manufactured to tight tolerances from premium materials
- Kit includes connecting rod and big-end needle bearings
Cross-Mania tip: Fitting requires a press and truing the crankshaft with a dial gauge. If you are not equipped, have it done by a workshop.
Also needed with this part
- Crankshaft bearings and seals : CENTAURO
- Complete engine gasket kit : MOOSE 808641MSE · MOOSE 811641MSE
- Piston : ATHENA S4C04450001 · ATHENA S4C05800001
- 2-stroke oil : LIQUI MOLY 1 L 3065 · LIQUI MOLY 1 L 3063
Compatibility
Check the exact model and year of your bike in the list below before ordering.
Fits:
YAMAHA YZ 125 2027
YAMAHA YZ 125 2026
YAMAHA YZ 125 2025
YAMAHA YZ 125 2024
YAMAHA YZ 125 2023
YAMAHA YZ 125 2022
YAMAHA YZ 125 2021
YAMAHA YZ 125 2020
YAMAHA YZ 125 X 2027
YAMAHA YZ 125 X 2026
YAMAHA YZ 125 X 2025
YAMAHA YZ 125 X 2024
YAMAHA YZ 125 X 2023
YAMAHA YZ 125 X 2022
YAMAHA YZ 125 X 2021
YAMAHA YZ 125 X 2020
