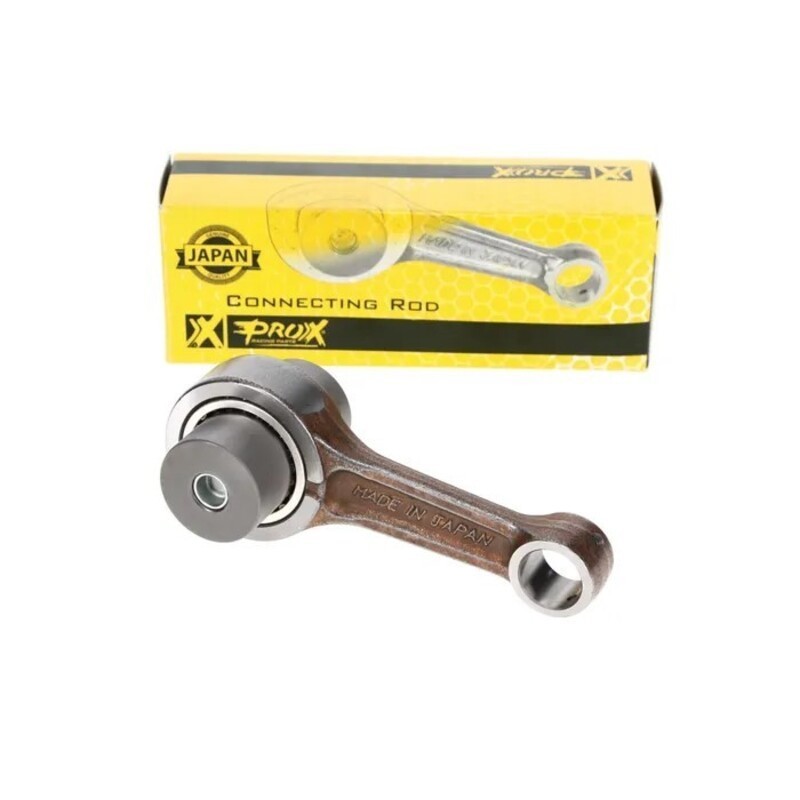

PROX offers you this complete connecting rod kit for your YAMAHA YFZ 450 R quad. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm) : 108,00

Short side bore (mm): 20

Connecting rod head bore (mm): 45

Bore width short side (mm): 18

Connecting-rod bore width (mm): 23

Crank pin Ø (mm): 36

Crankpin length (mm): 62.8

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

YAMAHA YFZ 450 R 2WD 2013

YAMAHA YFZ 450 R 2WD 2012

YAMAHA YFZ 450 R 2WD 2011

YAMAHA YFZ 450 R 2WD 2010

YAMAHA YFZ 450 R 2WD 2009
