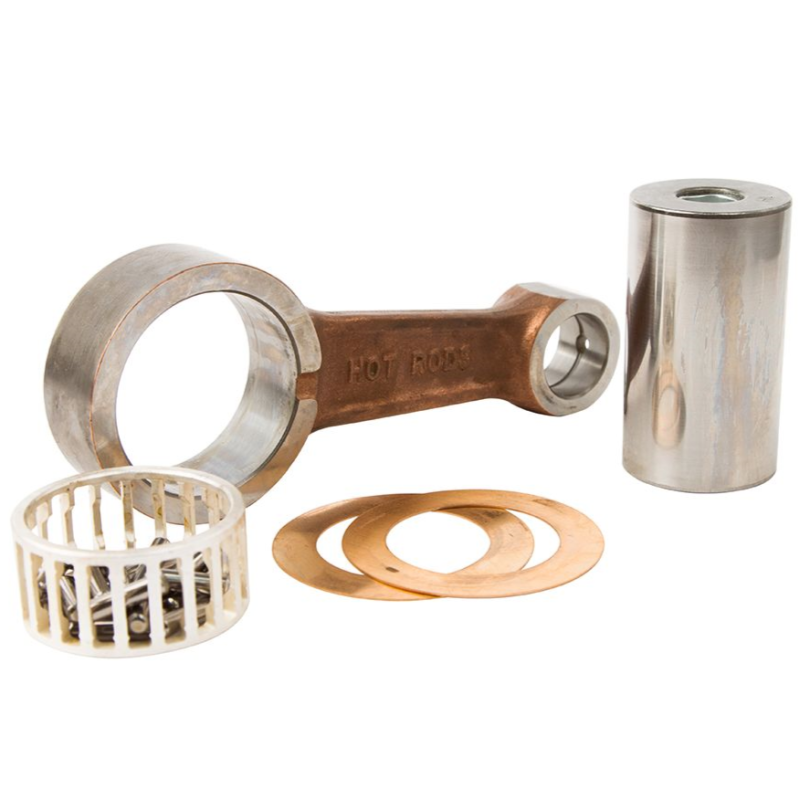

HOT RODS offers this complete connecting rod kit for your YAMAHA YFZ 450 quad. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm): 101.5

Short side bore (mm): 20

Connecting rod head bore (mm): 42

Bore width short side (mm): 18.05

Connecting-rod bore width (mm): 19.95

Crankpin Ø (mm): 34

Crankpin length (mm): 60.8

Short-side bearing (mm): Ring

Connecting rod head bearing (mm): 34 x 42 x 20

Washers (mm): 0.5

Fits on :

YAMAHA YFZ 450 2013 EUROPE

YAMAHA YFZ 450 2013 AMERICA

YAMAHA YFZ 450 2012 AMERICA

YAMAHA YFZ 450 2012 EUROPE

YAMAHA YFZ 450 2009 AMERICA

YAMAHA YFZ 450 2008 AMERICA

YAMAHA YFZ 450 2007 AMERICA

YAMAHA YFZ 450 2006 AMERICA

YAMAHA YFZ 450 BB 2007 Bill Ballance Edition AMERICA

YAMAHA YFZ 450 BB 2006 Bill Ballance Edition AMERICA

YAMAHA YFZ 450 SE 2007 Special Edition AMERICA

YAMAHA YFZ 450 SP 2008 Special Edition AMERICA

YAMAHA YFZ 450 SP 2006 Special Edition AMERICA

YAMAHA YFZ 450 SP2 2008 Special Edition 2 AMERICA

YAMAHA YFZ 450 SPE2 2007 Special Edition 2 AMERICA
