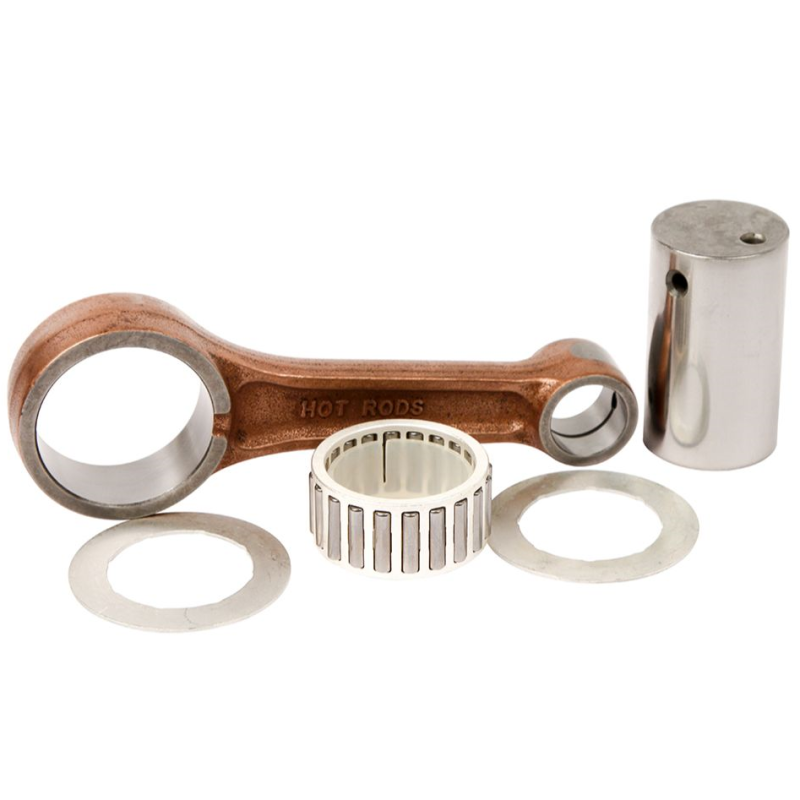

HOT RODS offers you this complete connecting rod kit for your YAMAHA YFM Warrior/Raptor 350 quad. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm) : 112,5

Short side bore (mm): 19

Connecting rod head bore (mm): 41

Bore width short side (mm): 20

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 33

Crankpin length (mm): 57.8

Short-side bearing (mm): Ring

Connecting rod head bearing (mm): 33 x 41 x 19.7

Washers (mm): 1

Fits on :

YAMAHA YFM 350 RAPTOR 2WD 2013

YAMAHA YFM 350 RAPTOR 2WD 2012

YAMAHA YFM 350 RAPTOR 2WD 2011

YAMAHA YFM 350 RAPTOR 2WD 2010

YAMAHA YFM 350 RAPTOR 2WD 2009

YAMAHA YFM 350 RAPTOR 2WD 2008

YAMAHA YFM 350 RAPTOR 2WD 2007

YAMAHA YFM 350 RAPTOR 2WD 2006

YAMAHA YFM 350 RAPTOR 2WD 2005

YAMAHA YFM 350 WARRIOR 2WD 2004

YAMAHA YFM 350 WARRIOR 2WD 2003

YAMAHA YFM 350 WARRIOR 2WD 2002

YAMAHA YFM 350 WARRIOR 2WD 2001

YAMAHA YFM 350 WARRIOR 2WD 2000

YAMAHA YFM 350 WARRIOR 2WD 1999

YAMAHA YFM 350 WARRIOR 2WD 1998

YAMAHA YFM 350 WARRIOR 2WD 1997

YAMAHA YFM 350 WARRIOR 2WD 1996

YAMAHA YFM 350 WARRIOR 2WD 1995

YAMAHA YFM 350 WARRIOR 2WD 1994

YAMAHA YFM 350 WARRIOR 2WD 1993

YAMAHA YFM 350 WARRIOR 2WD 1992

YAMAHA YFM 350 WARRIOR 2WD 1991

YAMAHA YFM 350 WARRIOR 2WD 1990

YAMAHA YFM 350 WARRIOR 2WD 1989

YAMAHA YFM 350 WARRIOR 2WD 1988
