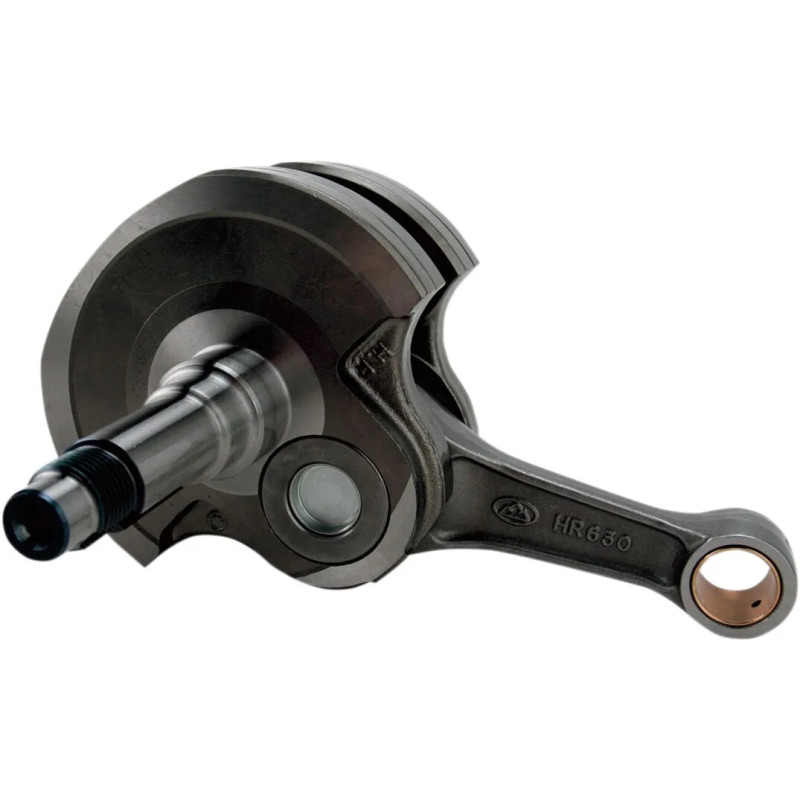

HOT RODS complete crankshaft for SUZUKI DR-Z 400 S, KAWASAKI KFX 400 2X4 and ARCTIC CAT (TEXTRON) 400 2X4 from 2000 to 2015

HOT RODS offers this complete crankshaft for SUZUKI DR-Z 400 S, KAWASAKI KFX 400 2X4 and ARCTIC CAT (TEXTRON) 400 2X4 from 2000 to 2015. The crankshaft is the engine’s main shaft: the rod turns it and it drives the clutch and gearbox.

Why a complete crankshaft?

The benefits:

• Ready to fit, no specialist needed to press in a rod.
• Bottom end renewed in one go.
• Often cheaper than rebuilding a badly worn crank.

Why choose HOT RODS?

Hot Rods crankshafts come assembled and trued: double-forged 8620 steel rod and hardened crankpin (58-62 HRC), a ready-to-fit bottom-end rebuild.

When should you replace the crankshaft?

Unusual vibration, a deep knock that follows engine speed or play in the con-rod: the bottom end needs a rebuild.

The manufacturer publishes no hour interval for this model: have the con-rod play checked at every piston change. Cross-Mania guideline: rebuild the bottom end every 2 to 3 top-end rebuilds.

Specifications and fitting tips

• Feature: Heavy-duty crankshaft
• Displacement: 424 cm³
• Stroke: 66.60 mm
• Material: 4140 steel
• Factory assembled and balanced to OEM specifications
• Ready-to-install replacement crankshaft, no modifications required unless otherwise stated

Cross-Mania tip: Take the opportunity, with the cases open, to replace the crankshaft bearings and oil seals.

Also needed with this part

• Crankshaft bearings and seals : see the selection
• Complete engine gasket kit : MOOSE 808585MSE · MOOSE 811585MSE
• Piston : WISECO · VERTEX
• 4-stroke engine oil : LIQUI MOLY 10W40 1 L · MOTUL 10W50

Compatibility

Check the exact model and year of your bike in the list below before ordering.

Fits:
ARCTIC CAT (TEXTRON) 400 2X4 2008
ARCTIC CAT (TEXTRON) 400 2X4 2007
ARCTIC CAT (TEXTRON) 400 2X4 2006
ARCTIC CAT (TEXTRON) 400 2X4 2005
ARCTIC CAT (TEXTRON) 400 2X4 2004
KAWASAKI KFX 400 2X4 2006
KAWASAKI KFX 400 2X4 2005
KAWASAKI KFX 400 2X4 2004
KAWASAKI KFX 400 2X4 2003
KAWASAKI KLX 400 R 2003
KAWASAKI KLX 400 SR 2003
SUZUKI DR-Z 400 2005
SUZUKI DR-Z 400 2004
SUZUKI DR-Z 400 2003
SUZUKI DR-Z 400 2002
SUZUKI DR-Z 400 2001
SUZUKI DR-Z 400 2000
SUZUKI DR-Z 400 E 2007
SUZUKI DR-Z 400 E 2006
SUZUKI DR-Z 400 E 2005
SUZUKI DR-Z 400 E 2004
SUZUKI DR-Z 400 E 2003
SUZUKI DR-Z 400 E 2002
SUZUKI DR-Z 400 E 2001
SUZUKI DR-Z 400 E 2000
SUZUKI DR-Z 400 S 2013
SUZUKI DR-Z 400 S 2012
SUZUKI DR-Z 400 S 2011
SUZUKI DR-Z 400 S 2010
SUZUKI DR-Z 400 S 2009
SUZUKI DR-Z 400 S 2008
SUZUKI DR-Z 400 S 2007
SUZUKI DR-Z 400 S 2006
SUZUKI DR-Z 400 S 2005
SUZUKI DR-Z 400 S 2004
SUZUKI DR-Z 400 S 2003
SUZUKI DR-Z 400 S 2002
SUZUKI DR-Z 400 S 2001
SUZUKI DR-Z 400 S 2000
SUZUKI DR-Z 400 SM 2015
SUZUKI DR-Z 400 SM 2014
SUZUKI DR-Z 400 SM 2013
SUZUKI DR-Z 400 SM 2012
SUZUKI DR-Z 400 SM 2011
SUZUKI DR-Z 400 SM 2010
SUZUKI DR-Z 400 SM 2009
SUZUKI DR-Z 400 SM 2008
SUZUKI DR-Z 400 SM 2007
SUZUKI DR-Z 400 SM 2006
SUZUKI DR-Z 400 SM 2005
SUZUKI LT-Z 400 2X4 2013
SUZUKI LT-Z 400 2X4 2012
SUZUKI LT-Z 400 2X4 2011
SUZUKI LT-Z 400 2X4 2010
SUZUKI LT-Z 400 2X4 2009
SUZUKI LT-Z 400 2X4 2008
SUZUKI LT-Z 400 2X4 2007
SUZUKI LT-Z 400 2X4 2006
SUZUKI LT-Z 400 2X4 2005
SUZUKI LT-Z 400 2X4 2004
SUZUKI LT-Z 400 2X4 2003
SUZUKI LT-Z 400 Z 2X4 2012
SUZUKI LT-Z 400 Z 2X4 2009
SUZUKI LT-Z 400 Z 2X4 2008
SUZUKI LT-Z 400 Z 2X4 2007
SUZUKI LT-Z 400 Z 2X4 2006
SUZUKI LT-Z 400 Z 2X4 2005
SUZUKI LT-Z 400 Z 2X4 2004
