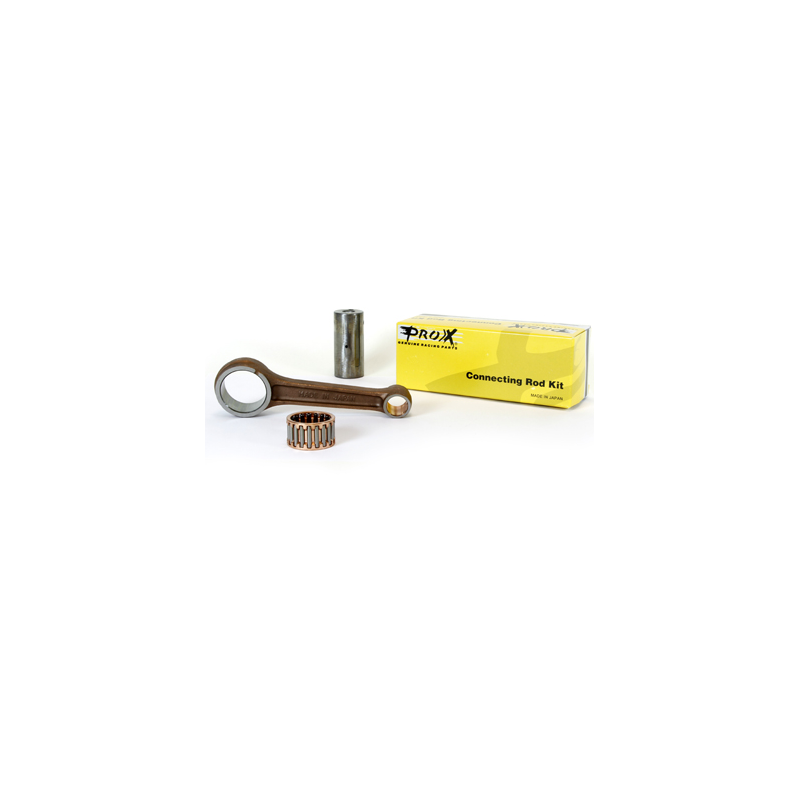

PROX offers you this complete connecting rod kit for your YAMAHA XT/SR 500. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crank pin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm): 145.2

Short side bore (mm): 20

Connecting rod head bore (mm): 42

Bore width short side (mm): 23.8

Connecting-rod bore width (mm): 23.8

Crankpin Ø (mm): 34

Crankpin length (mm): 73.7

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

YAMAHA XT 500 1977

YAMAHA XT 500 1976
