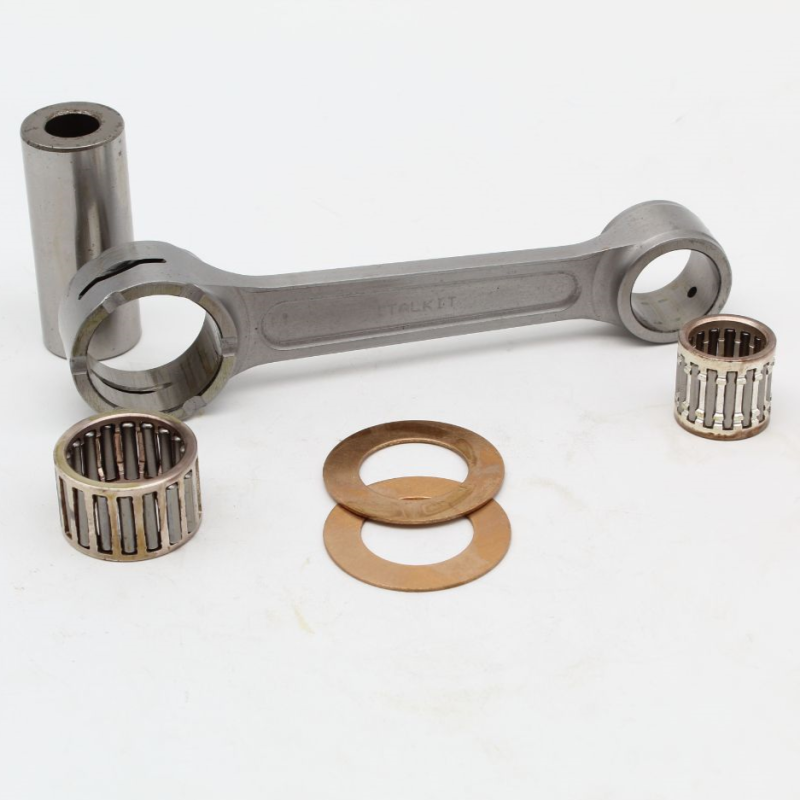

PROX offers you this complete connecting rod kit for your YAMAHA XT, YTM 225 and TT-R 225-230. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than replacing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm) : 100,5

Short side bore (mm): 16

Connecting rod head bore (mm): 37

Bore width short side (mm): 20

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 30

Crankpin length (mm): 55

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

YAMAHA XT 225 2001

YAMAHA XT 225 2002

YAMAHA XT 225 2003

YAMAHA XT 225 2004

YAMAHA XT 225 2005

YAMAHA XT 225 2006

YAMAHA XT 225 2007

YAMAHA YTM 225

YAMAHA TT-R 225 1999

YAMAHA TT-R 225 2000

YAMAHA TT-R 225 2001

YAMAHA TT-R 225 2002

YAMAHA TT-R 225 2003

YAMAHA TT-R 225 2004

YAMAHA TT-R 225 2005

YAMAHA TT-R 225 2006

YAMAHA TT-R 225 2007

YAMAHA TT-R 225 2008

YAMAHA TT-R 225 2009

YAMAHA TT-R 225 2010

YAMAHA TT-R 225 2011

YAMAHA TT-R 225 2012

YAMAHA TT-R 225 2013

YAMAHA TT-R 225 2014

YAMAHA TT-R 225 2015

YAMAHA TT-R 225 2016

YAMAHA TT-R 225 2017

YAMAHA TT-R 225 2018

YAMAHA TT-R 225 2019

YAMAHA TT-R 225 2020

YAMAHA TT-R 230 1999

YAMAHA TT-R 230 2000

YAMAHA TT-R 230 2001

YAMAHA TT-R 230 2002

YAMAHA TT-R 230 2003

YAMAHA TT-R 230 2004

YAMAHA TT-R 230 2005

YAMAHA TT-R 230 2006

YAMAHA TT-R 230 2007

YAMAHA TT-R 230 2008

YAMAHA TT-R 230 2009

YAMAHA TT-R 230 2010

YAMAHA TT-R 230 2011

YAMAHA TT-R 230 2012

YAMAHA TT-R 230 2013

YAMAHA TT-R 230 2014

YAMAHA TT-R 230 2015

YAMAHA TT-R 230 2016

YAMAHA TT-R 230 2017

YAMAHA TT-R 230 2018

YAMAHA TT-R 230 2019

YAMAHA TT-R 230 2020
