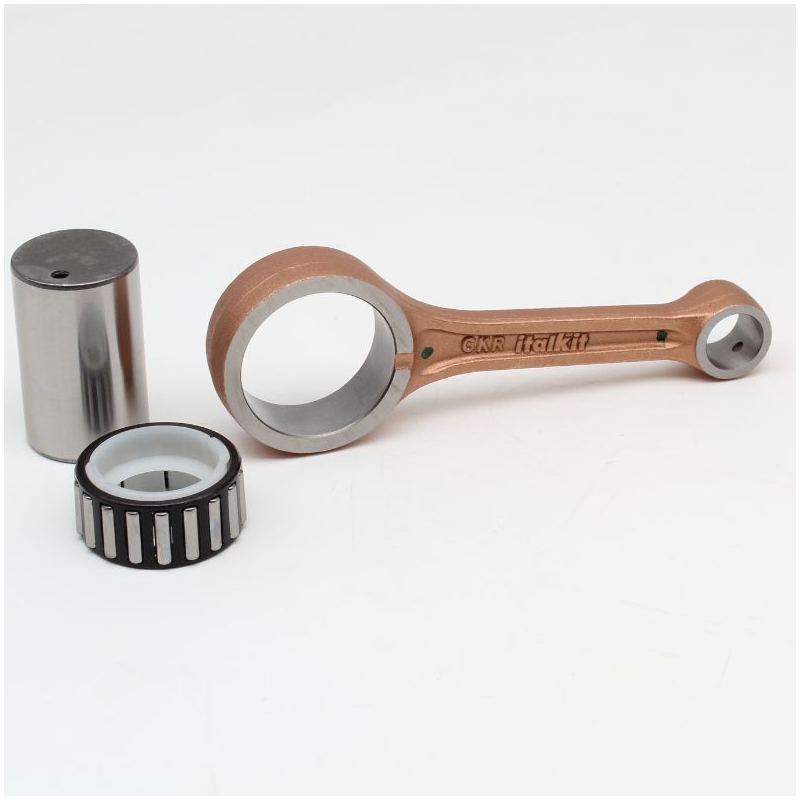

ITALKIT offers you this replacement crankshaft connecting rod for your YAMAHA 125 X-Max . This European-made connecting rod has the same features as the original one, but has been improved and made more affordable. This will enable you to repair your crankshaft easily and cheaply. The forged connecting rod is mounted on a reinforced high-end needle cage, for longer life. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft and we'll do the fitting ourselves. You can also contact us by e-mail for a quote.

Technical specifications:

Centre distance (mm): 100.5

Short side bore (mm): 14

Connecting rod head bore (mm): 35

Small-side bore width (mm) :

Connecting-rod bore width (mm): 16/14

Crank pin Ø (mm): 28

Crankpin length (mm): 44.8

Short-side bearing (mm): 14

Connecting-rod bearing (mm): 28 x 35 x 16

Washers (mm) :

Fits on:

YAMAHA 125 X-MAX
