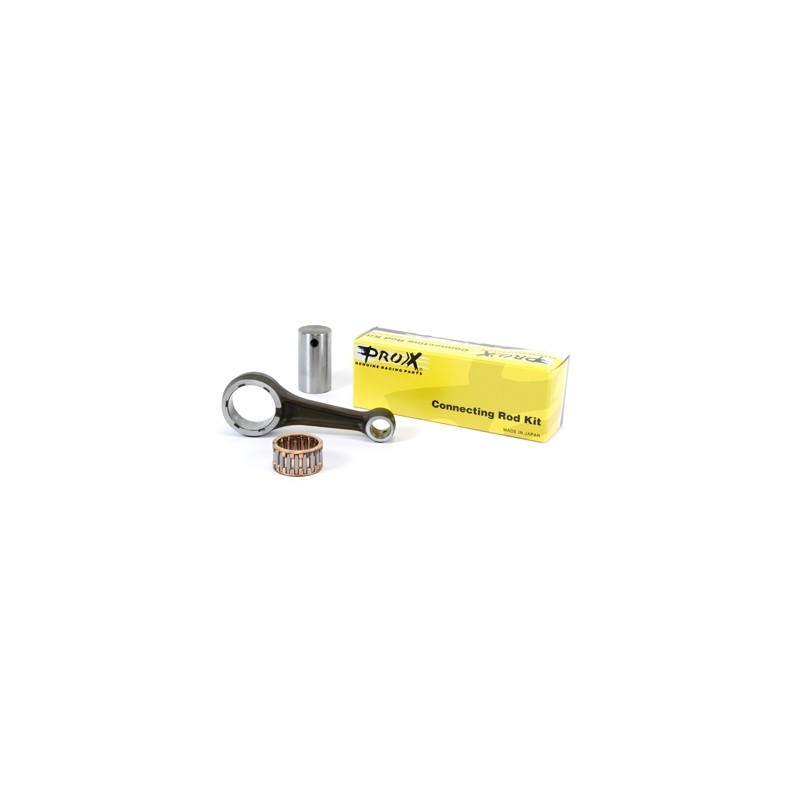

PROX offers you this complete connecting rod kit for your YAMAHA XT 200 and YTM 200. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Centre distance (mm) : 101.55

Short side bore (mm): 16

Connecting rod head bore (mm): 37

Bore width short side (mm): 20

Connecting-rod bore width (mm): 20

Crank pin Ø (mm): 30

Crankpin length (mm): 55.1

Short-side bearing (mm) :

Connecting rod head bearing (mm) :

Washers (mm): No

Fits on :

YAMAHA TW 200 TRAILWAY 2015

YAMAHA TW 200 TRAILWAY 2014

YAMAHA TW 200 TRAILWAY 2013

YAMAHA TW 200 TRAILWAY 2012

YAMAHA TW 200 TRAILWAY 2011

YAMAHA TW 200 TRAILWAY 2010

YAMAHA TW 200 TRAILWAY 2009

YAMAHA TW 200 TRAILWAY 2008

YAMAHA TW 200 TRAILWAY 2007

YAMAHA TW 200 TRAILWAY 2006

YAMAHA TW 200 TRAILWAY 2005

YAMAHA TW 200 TRAILWAY 2004

YAMAHA TW 200 TRAILWAY 2003

YAMAHA TW 200 TRAILWAY 2002

YAMAHA TW 200 TRAILWAY 2001

YAMAHA TW 200 TRAILWAY 2000

YAMAHA TW 200 TRAILWAY 1999

YAMAHA TW 200 TRAILWAY 1998

YAMAHA TW 200 TRAILWAY 1997

YAMAHA TW 200 TRAILWAY 1996

YAMAHA TW 200 TRAILWAY 1995

YAMAHA TW 200 TRAILWAY 1994

YAMAHA TW 200 TRAILWAY 1993

YAMAHA TW 200 TRAILWAY 1992

YAMAHA TW 200 TRAILWAY 1991

YAMAHA TW 200 TRAILWAY 1990

YAMAHA TW 200 TRAILWAY 1989

YAMAHA TW 200 TRAILWAY 1988

YAMAHA TW 200 TRAILWAY 1987

YAMAHA XT 200 1983

YAMAHA XT 200 1982

YAMAHA YFM 200 1989

YAMAHA YFM 200 1988

YAMAHA YFM 200 1987

YAMAHA YFM 200 1986

YAMAHA YFM 200 1985

YAMAHA YTM 200 1985

YAMAHA YTM 200 1984

YAMAHA YTM 200 1983
