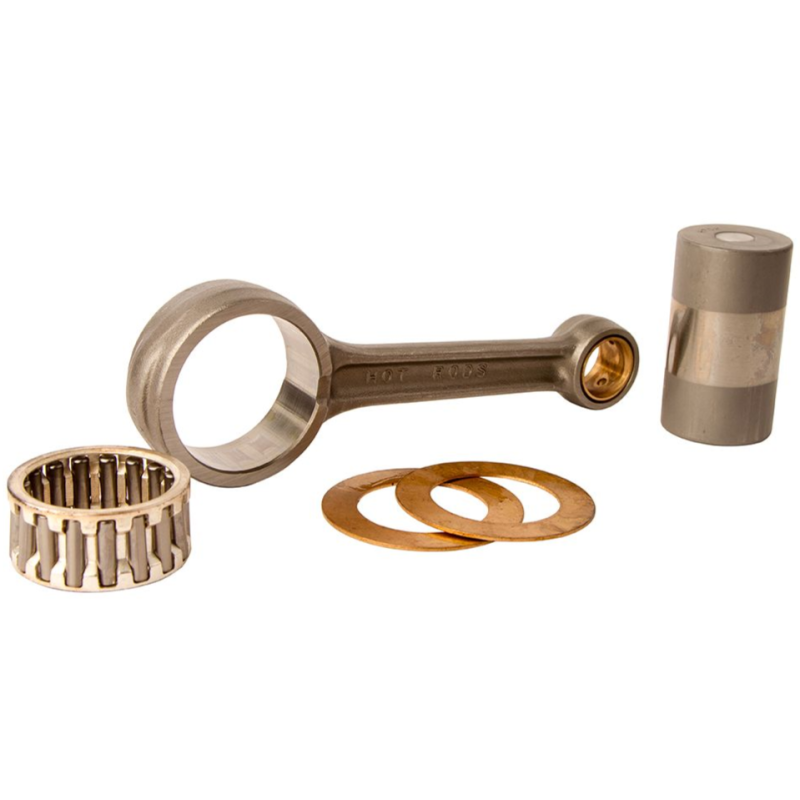

HOT RODS offers you this complete connecting rod kit for your SUZUKI LT 230 quad. This complete package will enable you to refurbish your crankshaft, which may have some play from top to bottom. Rather than changing the complete crankshaft, you'll often just need to change the connecting rod. This connecting rod is a cast model sold with its needle cage, anti-friction shims and crankpin. It has the same original dimensions. No adaptation is required. To change a connecting rod, you'll need a press, a balancing bench and a little patience. If you don't have the equipment to do this, you can send us your crankshaft so we can do the fitting ourselves. You can also e-mail us for a quote. All connecting rod dimensions are given below.

Technical data:

Center distance (mm) : 111.50

Short side bore (mm): 16

Connecting rod head bore (mm): 38

Bore width short side (mm): 14

Connecting-rod bore width (mm): 17.98

Crankpin Ø (mm): 30

Crankpin length (mm): 52.6

Short-side bearing (mm): Ring

Connecting rod head bearing (mm): 30x38x17.7

Washers (mm): 1

Fits on :

SUZUKI LT 230 QUADSPORT 2WD 1993

SUZUKI LT 230 QUADSPORT 2WD 1992

SUZUKI LT 230 QUADSPORT 2WD 1991

SUZUKI LT 230 QUADSPORT 2WD 1990

SUZUKI LT 230 QUADSPORT 2WD 1989

SUZUKI LT 230 QUADSPORT 2WD 1988

SUZUKI LT 230 QUADSPORT 2WD 1987
